Valve - Available Shims

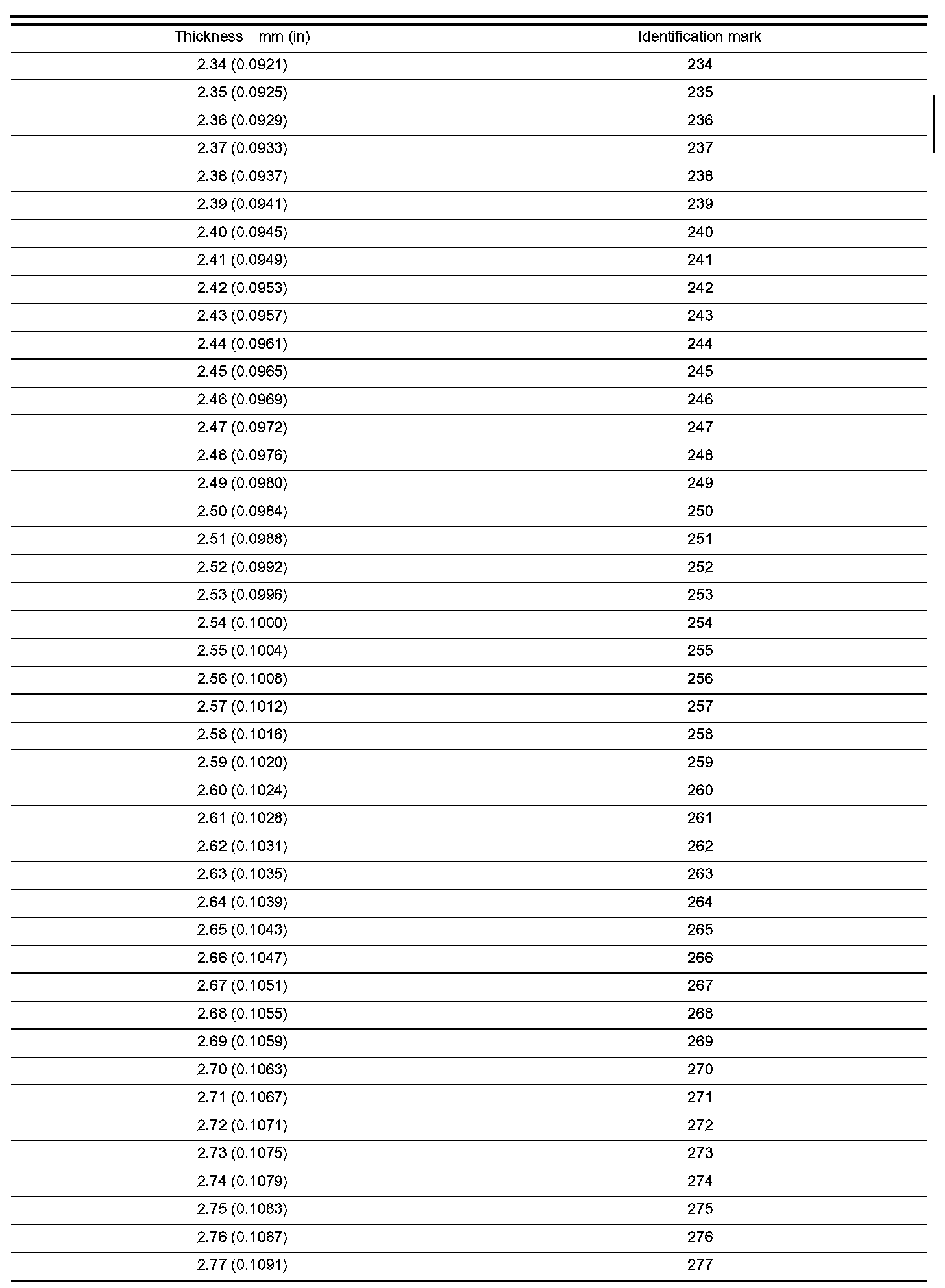

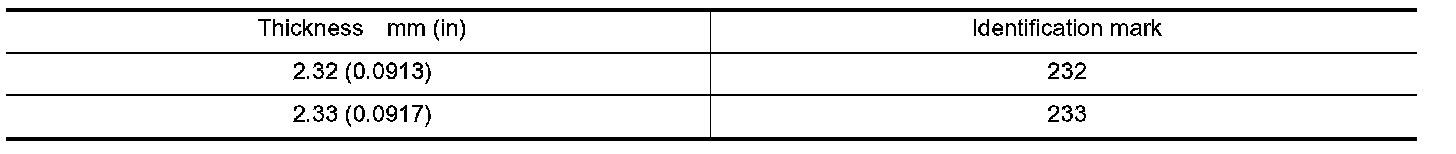

AVAILABLE SHIMS (1 Of 3):



AVAILABLE SHIMS (2 Of 3):

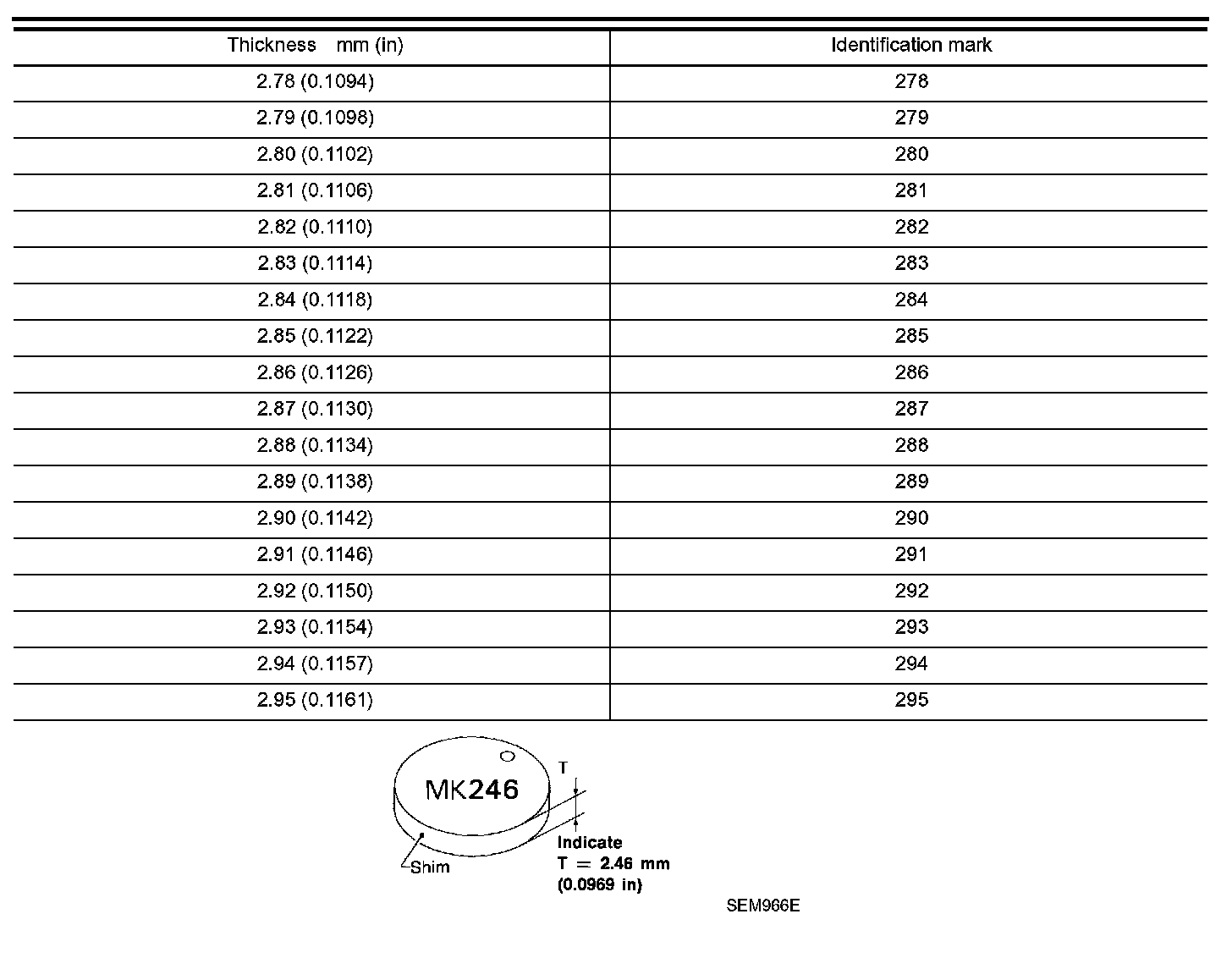

AVAILABLE SHIMS (3 Of 3):
