Engine
>>
System Specifications
>>
Cylinder Block
>>
Cylinder Block - Distortion
Cylinder Block - Distortion

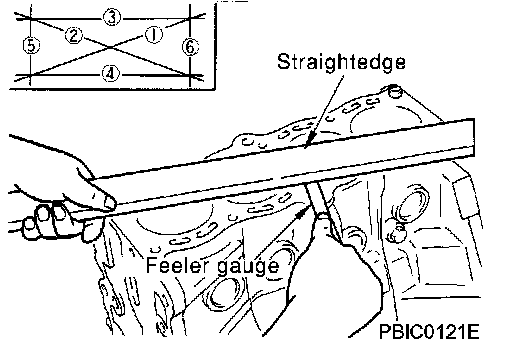

CYLINDER BLOCK DISTORTION
Limit:
.........................0.1 mm (0.004 inch)
