Manifold, Intake/Exhaust - Distortion

EXHAUST MANIFOLD
Surface Distortion-Standard: 0.3 mm (0.012 in)







INTAKE MANIFOLD

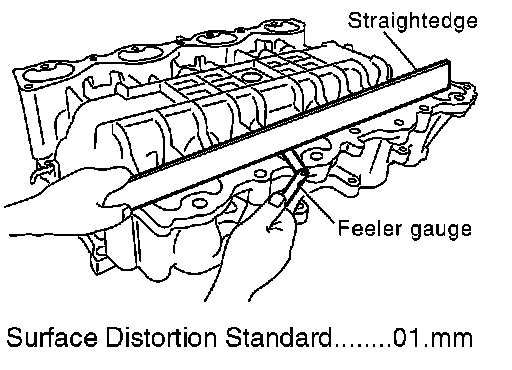

Using straightedge and feeler gauge, inspect surface distortion of intake manifold lower and intake manifold upper.

Surface Distortion-Standard..................0.1 mm (0.004 inch)
