Manifold, Exhaust


EXHAUST MANIFOLD & THREE WAY CATALYST:

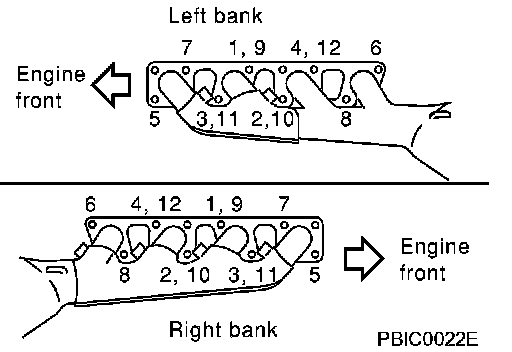

EXHAUST MANIFOLD - TORQUE SEQUENCE:





EXHAUST MANIFOLD 26 - 30 Nm
EXHAUST MANIFOLD COVER 5.1 - 6.4 Nm
