Rocker Cover

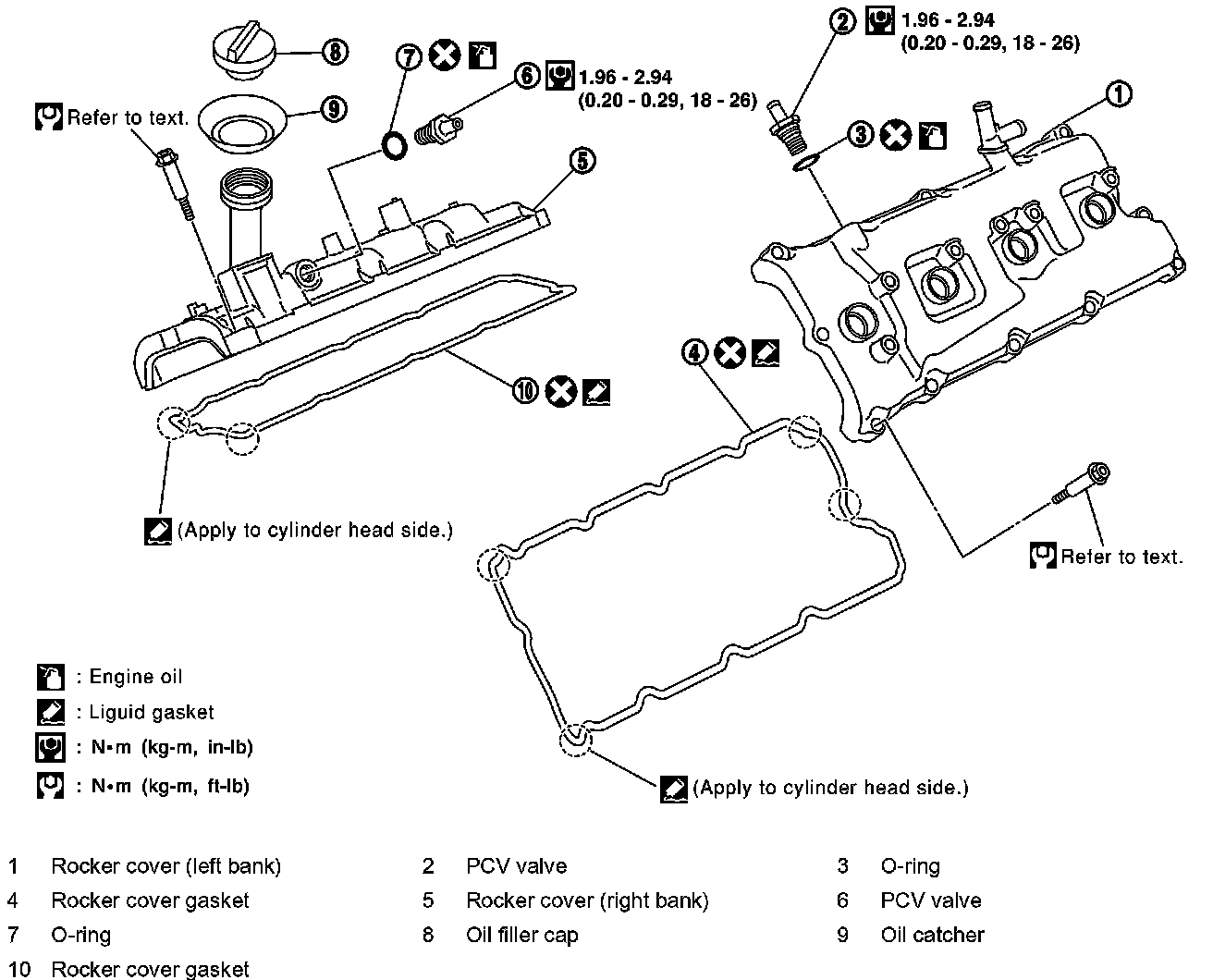

ROCKER COVER:

NOTE: Illustration shows an example of left-bank side (zoomed in shows No. 1 camshaft bracket). Apply only to No. 1 camshaft bracket for right-bank side.

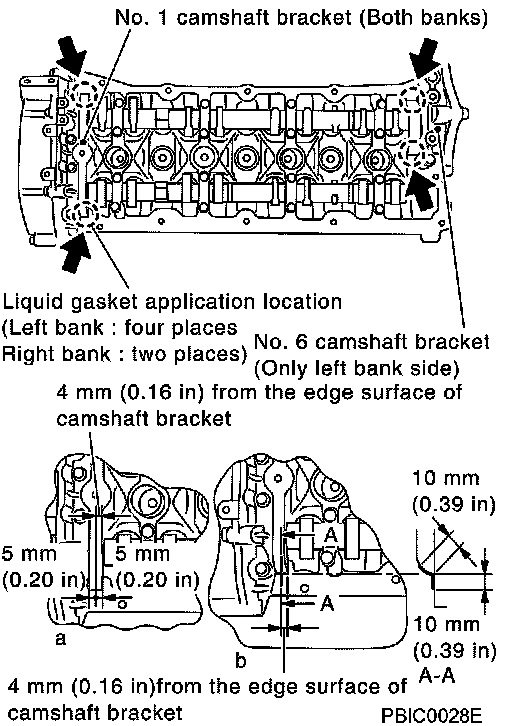

Refer to illustration "a" to apply liquid gasket to joint part of No. 1 and No. 6 camshaft bracket and cylinder head.

Refer to illustration "b" to apply liquid gasket in 90° to illustration "a".

Use Genuine Ultra Grey RTV Silicone Sealant Part No. 999MP-AM003P or equivalent.

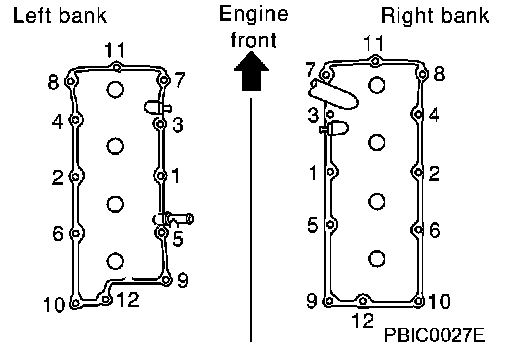

ROCKER COVER - BOLT TORQUE SEQUENCE:

Tighten bolts two steps separately in order numbers in illustration.

1st step: 1.0 - 3.0 Nm (0.1 - 0.31 kg-m, 9 - 26 inch lbs.)
2nd step: 7.4 - 9.3 Nm (0.75 - 0.95 kg-m, 66 - 82 inch lbs.)
