Data Monitor

Operation Procedure

1. Touch "DATA MONITOR" on the selection screen "CONSULT-II INSPECTION PROCEDURE" .
2. Touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR", and "SELECTION FROM MENU" on selection screen.
3. Touch "SETTING".
4. Display the data monitor.
5. If necessary, touch "COPY" in turn, and print data.

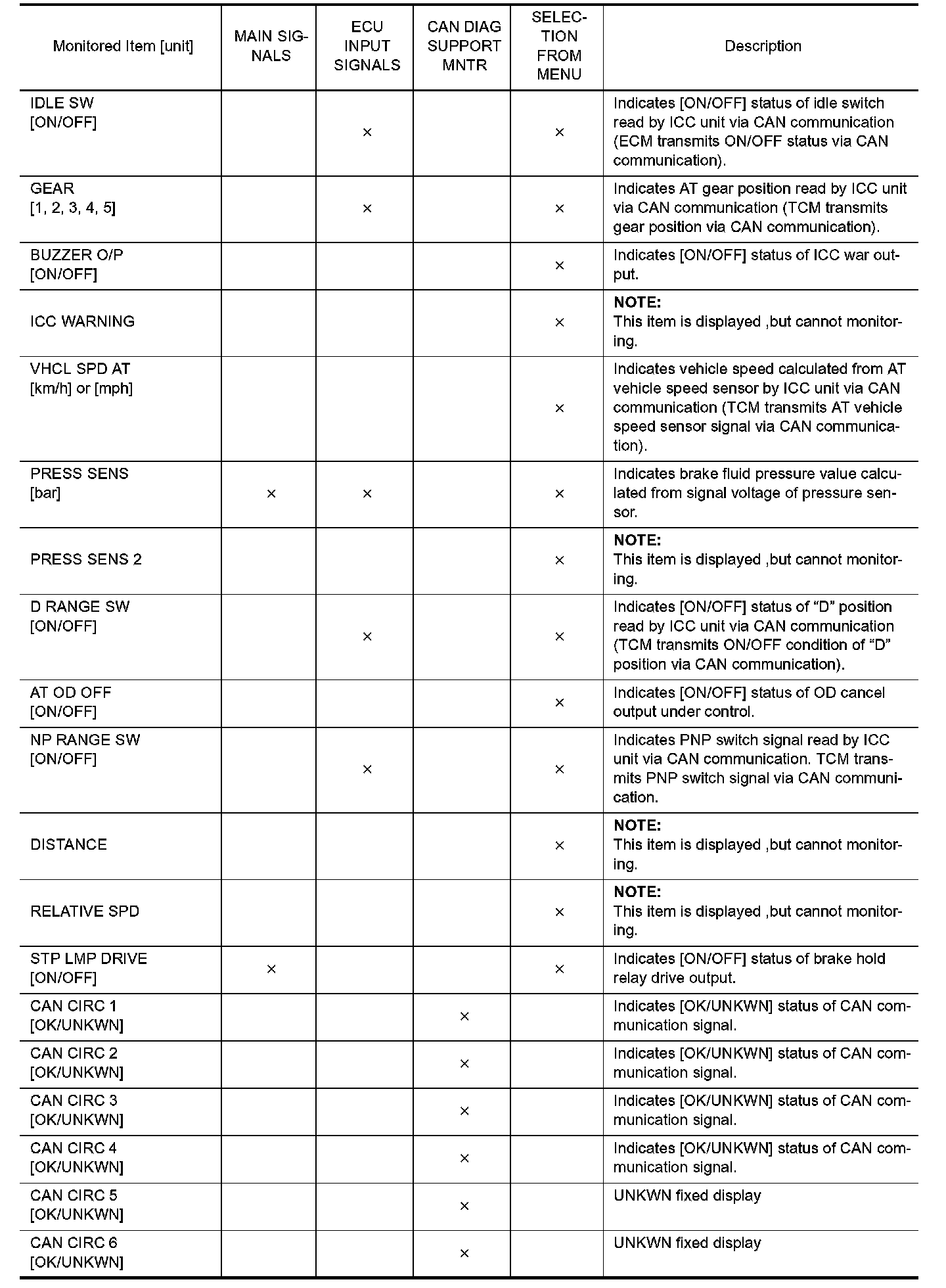

Monitored Item Part 1:

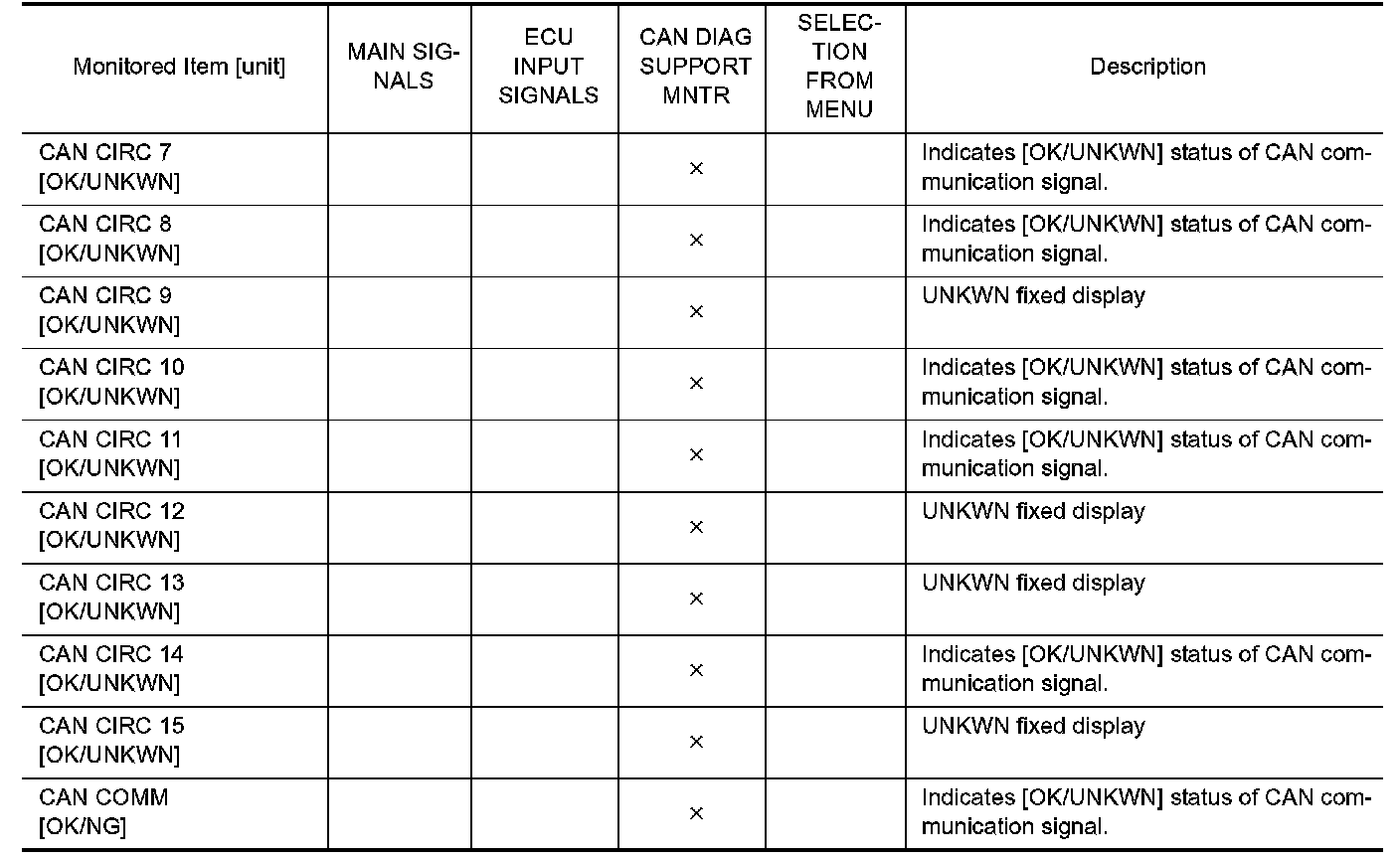

Monitored Item Part 2:

Monitored Item Part 3:

Monitored Item
