CONSULT-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

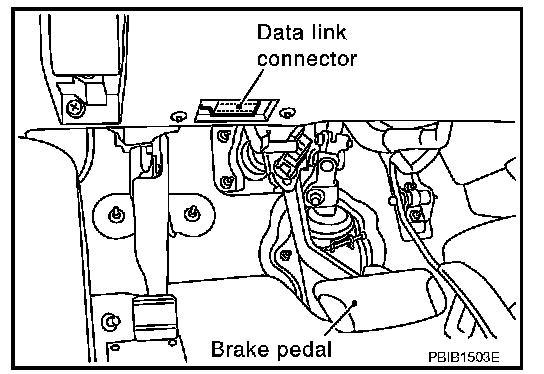

1. With the ignition switch OFF connect CONSULT-II and CONSULT-II CONVERTER to the data link connector then turn the ignition switch ON.

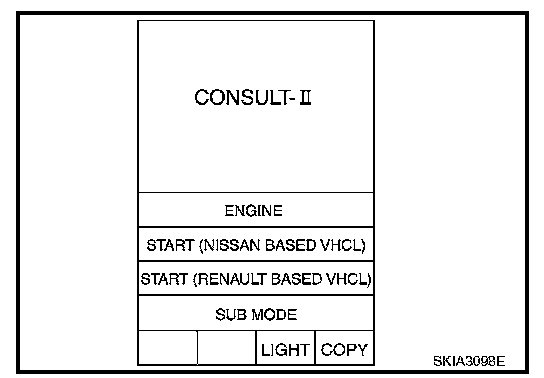

2. Touch START (NISSAN BASED VHCL)".

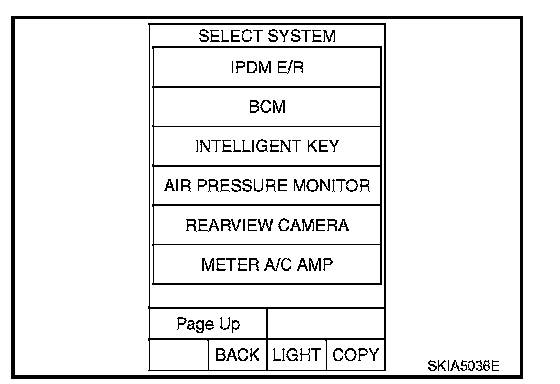

3. Touch IPDM E/R" on SELECT SYSTEM" screen.
- If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to "Precautions When Using CONSULT-II"

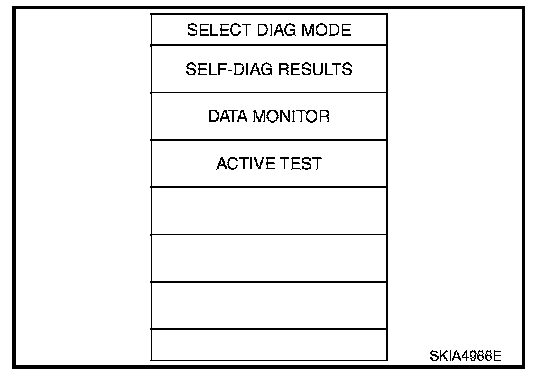

4. Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.
