Ignition Switch: Service and Repair

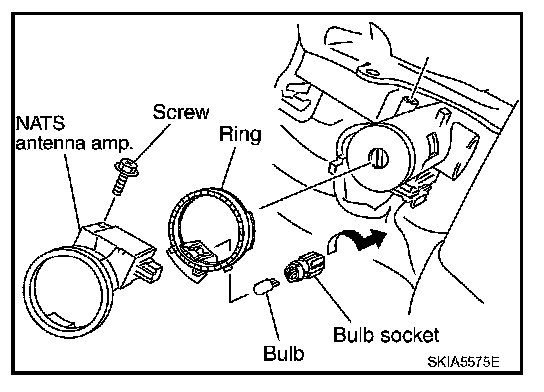

IGNITION KEY HOLE ILLUMINATIONBulb Replacement, Removal and Installation 1.
Remove combination meter. Refer to "Removal and Installation".
2.
Remove screw and remove NATS antenna amp.
3.
Pull out ring and turn bulb socket to left to release lock.
Key cylinder illumination :
12 V - 1.4 W 4.
Install in the reverse order of removal.
