Removal and Installation of NAVI Control Unit

NAVI control unit
1. Remove center box assy, Refer to INSTRUMENT PANEL

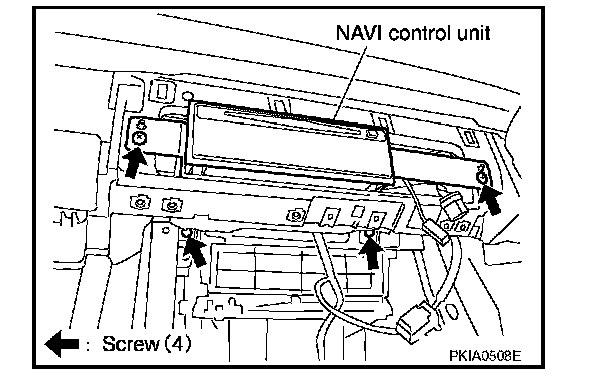

2. Remove screws (4) and remove NAVI control unit.

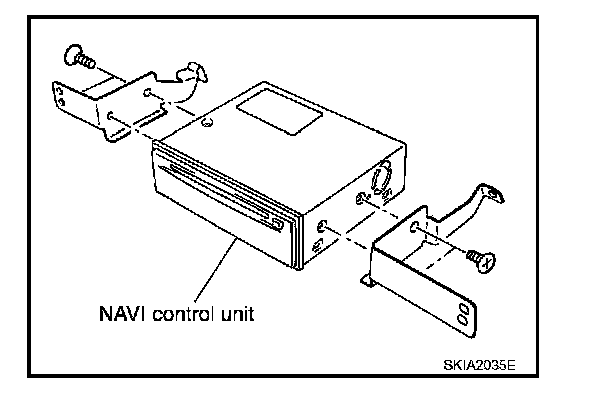

3. Remove screws (4) and remove bracket.
