Keyfob ID Set Up With CONSULT-II
ID Code Entry ProcedureKEYFOB ID SET UP WITH CONSULT-II
NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered.
1. Turn ignition switch "OFF".

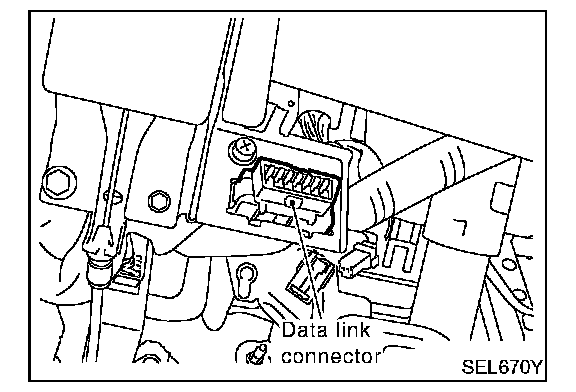

2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
3. Turn ignition switch "ON".

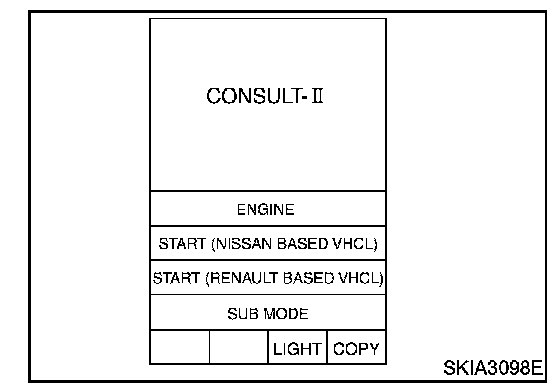

4. Touch "START (NISSAN BASED VHCL)".

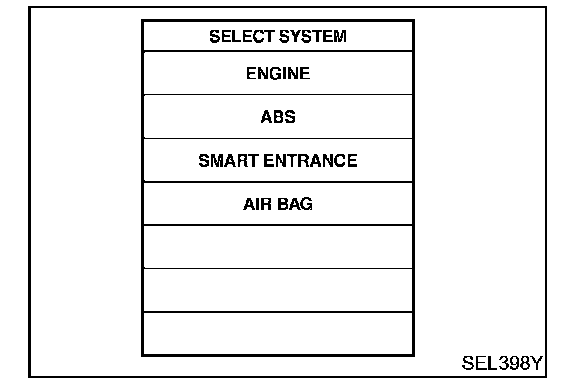

5. Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to CONSULT-II Checking System CONSULT-II Checking System

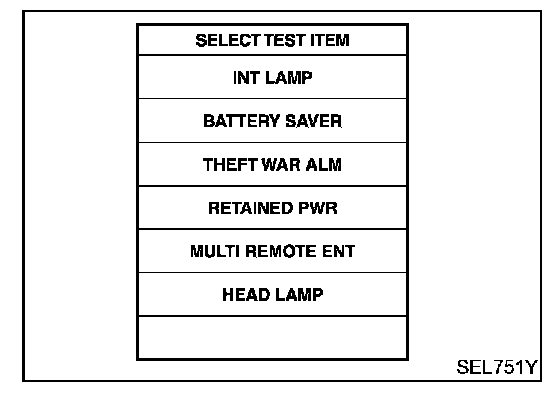

6. Touch "MULTI REMOTE ENT".
7. Touch "WORK SUPPORT".

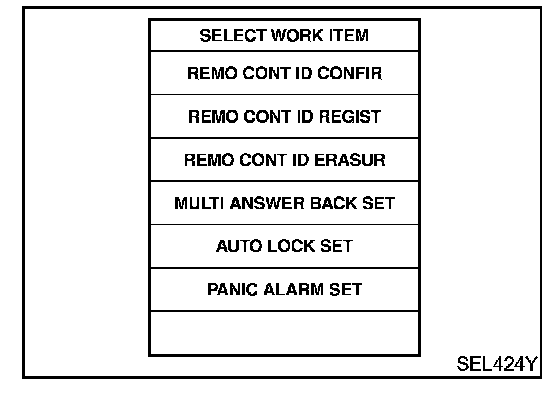

8. The items are shown on the figure can be set up.
"REMO CONT ID CONFIR"
Use this mode to confirm if a keyfob ID code is registered or not.
"REMO CONT ID REGIST"
Use this mode to register a keyfob ID code.
NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
REMO CONT ID ERASUR
Use this mode to erase a keyfob ID code.
Refer to "WORK SUPPORT" Work Supportin "CONSULT-II Application Items" for the following items.
- "MULTI ANSWER BACK SET"
- "AUTO LOCK SET"
- "PANIC ALARM SET"
- "TRUNK OPENER"
- "PW DOWN SET"
NOTE: Even though TRUNK OPENER is actually displayed on the CONSULT- II screen, it is not equipped, therefore, they cannot be activated.
