Active Test

ACTIVE TEST

CAUTION: Do not perform the active test while driving.
Active test cannot be started while ICC system warning indicator illuminates.

1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector and start engine.
3. Touch "START", "ICC", and "ACTIVE TEST" on CONSULT-II display in turn.
4. Touch necessary test item.
5. Touch "START".
6. Active test screen will be shown.

ICC BUZZER 1:

ICC BUZZER 1

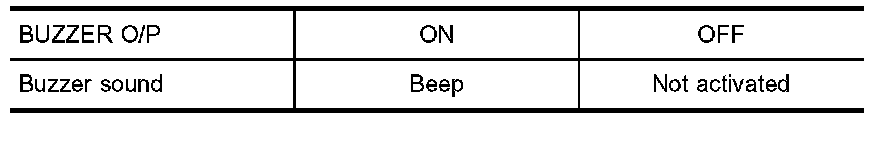

Touch "ON" and "OFF" to check that ICC warning chime operates as in the chart.

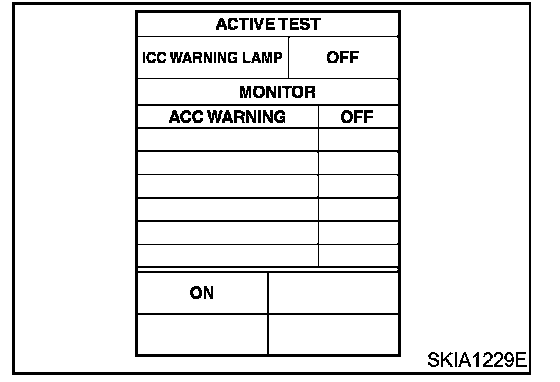

ICC WARNING LAMP:

ICC WARNING LAMP
Touch "ON" and "OFF" to check that ICC warning lamp operates as in the chart.

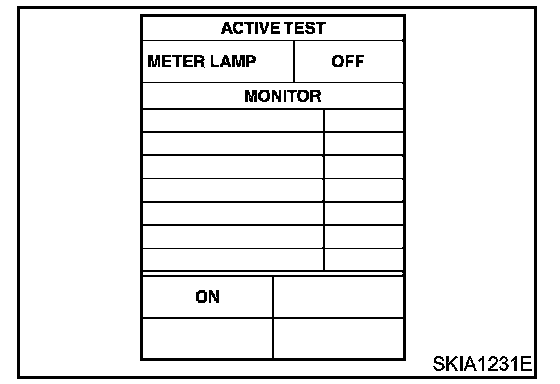

METER LAMP:

METER LAMP
Start engine.

Touch "ON" and "OFF" to check that ICC system display operates as in the chart.

STOP LAMP:

STOP LAMP

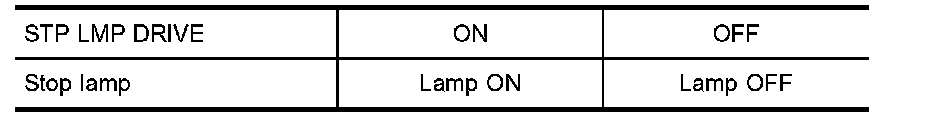

Touch "ON" and "OFF" to check that stop lamp operates as in the chart.

BOOSTER SOL/V 3:

BOOSTER SOL/V 3

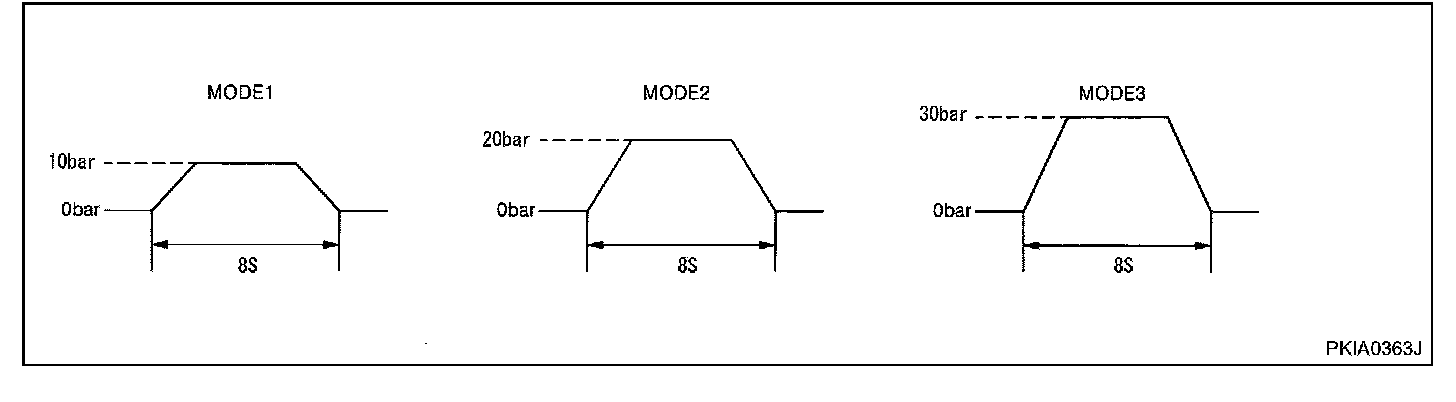

Touch any of "MODE 1", "MODE 2", "MODE 3" to check that following operation condition is caused by operating monitor and brake pedal.

"START" is displayed 10 seconds after operation start. (Active test is completed.)
