Data Monitor

DATA MONITOR

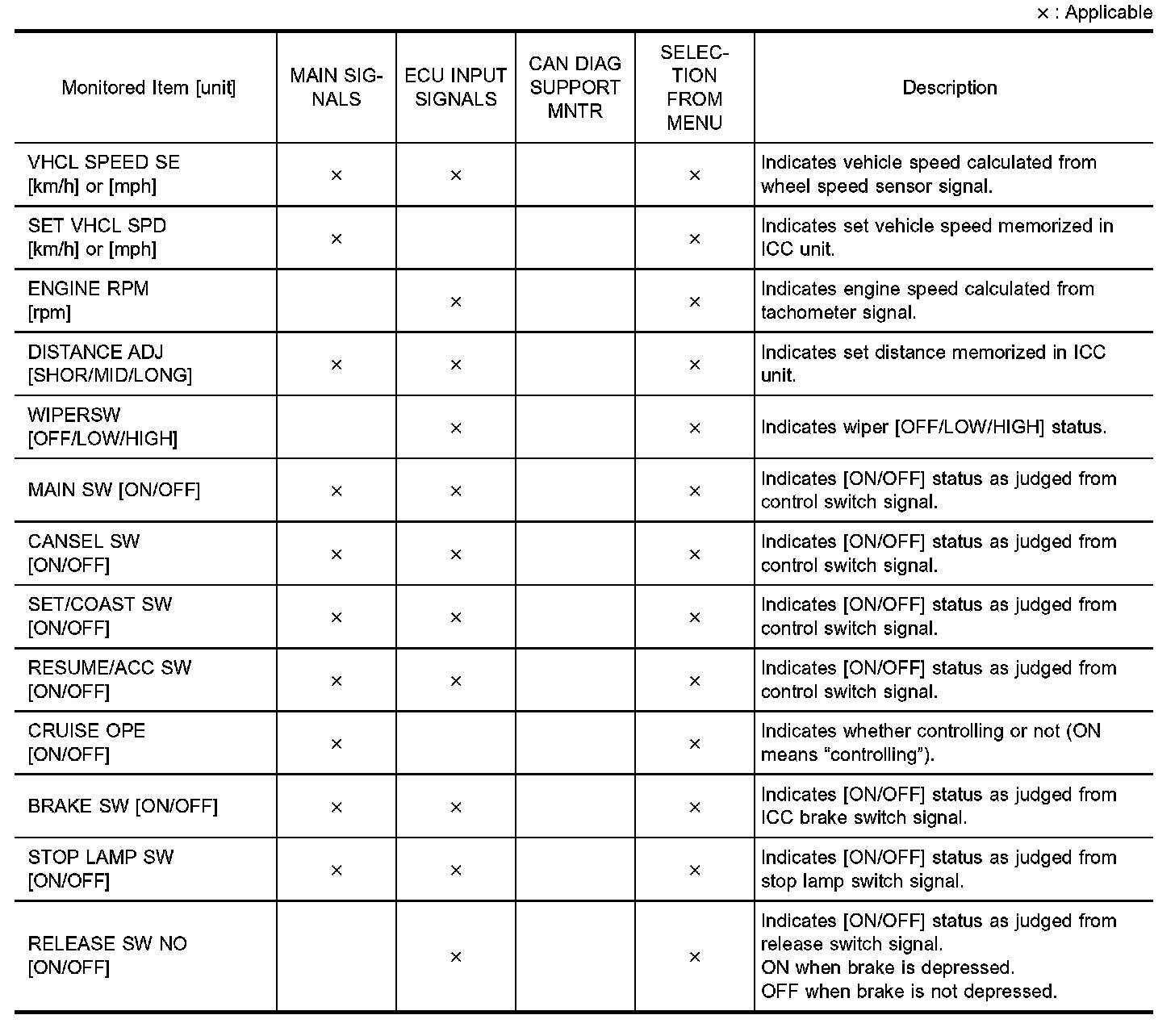

Monitored Item Part 1:

Monitored Unit Part 2:

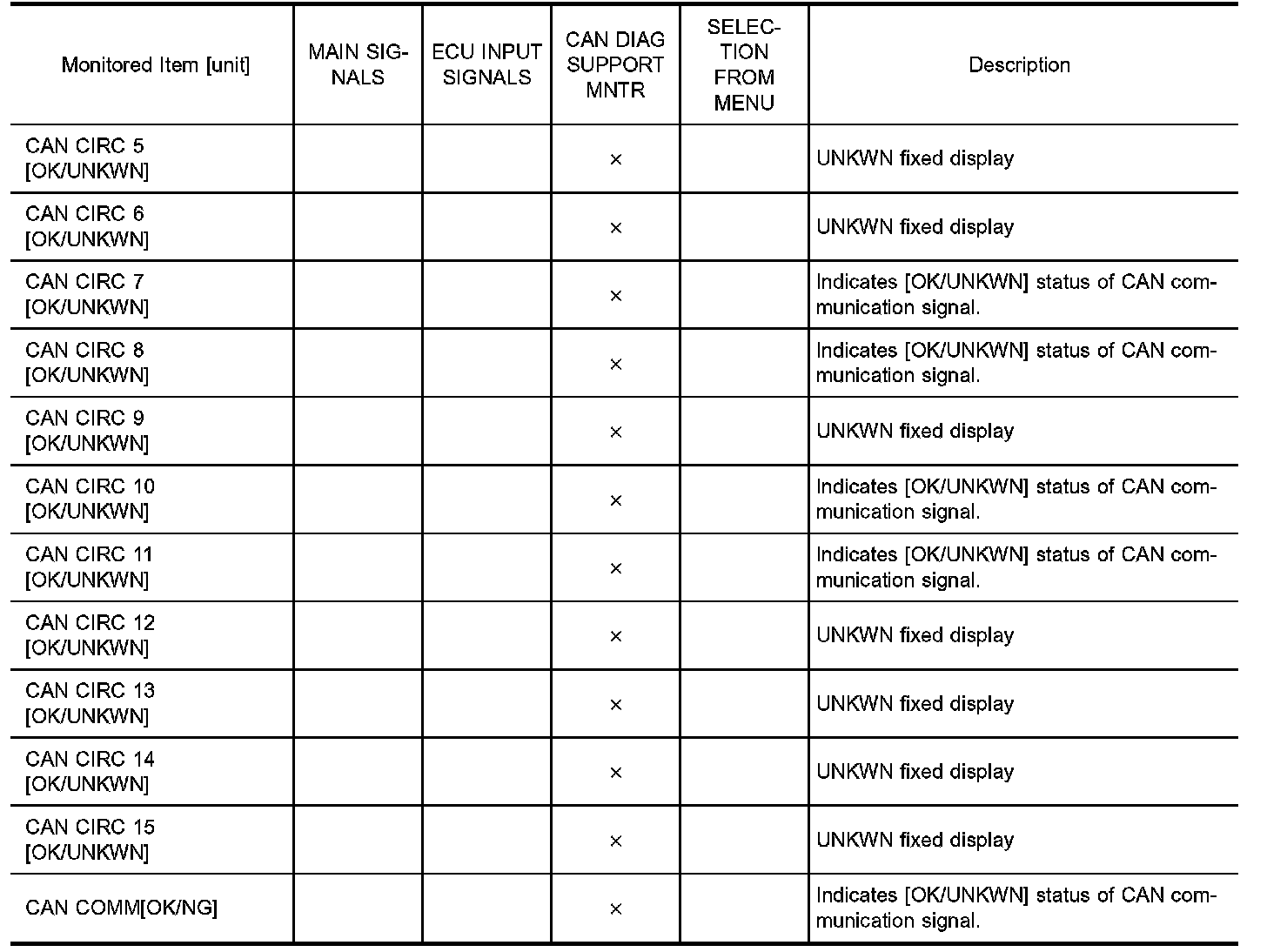

Monitored Item Part 3:

1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch "START" on the display.
5. Touch "ICC" on the selection screen.
6. Touch "DATA MONITOR" on the selection screen.
7. Touch any of" ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR", and "SELECTION FROM MENU" on selection screen.
8. Touch "SETTING".
9. Display the data monitor.
10. If necessary, touch "PRINT" in turn, and print data.
