Work Support

WORK SUPPORT

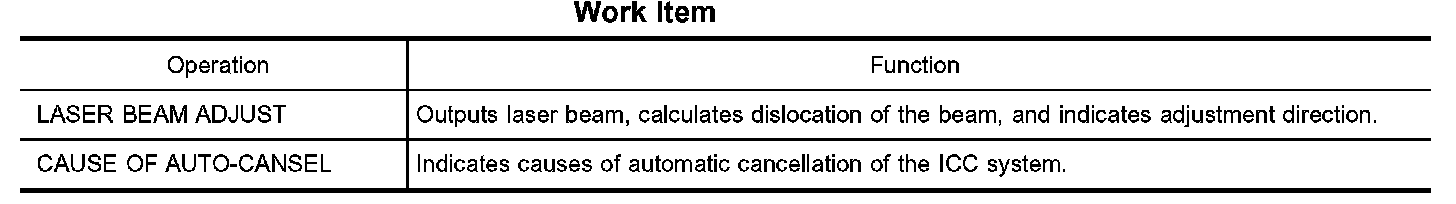

Work Items:

LASER BEAM ADJUST
For details, refer to "LASER BEAM AIMING ADJUSTMENT".
Adjustments


CAUSE OF AUTO-CANCEL
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch "START" on the display.
5. Touch "ICC" on the selection screen.
6. Touch "WORK SUPPORT" on the selection screen.
7. Touch "CAUSE OF AUTO-CANCEL" on the selection screen.
8. Cause of automatic cancellation screen will be shown.

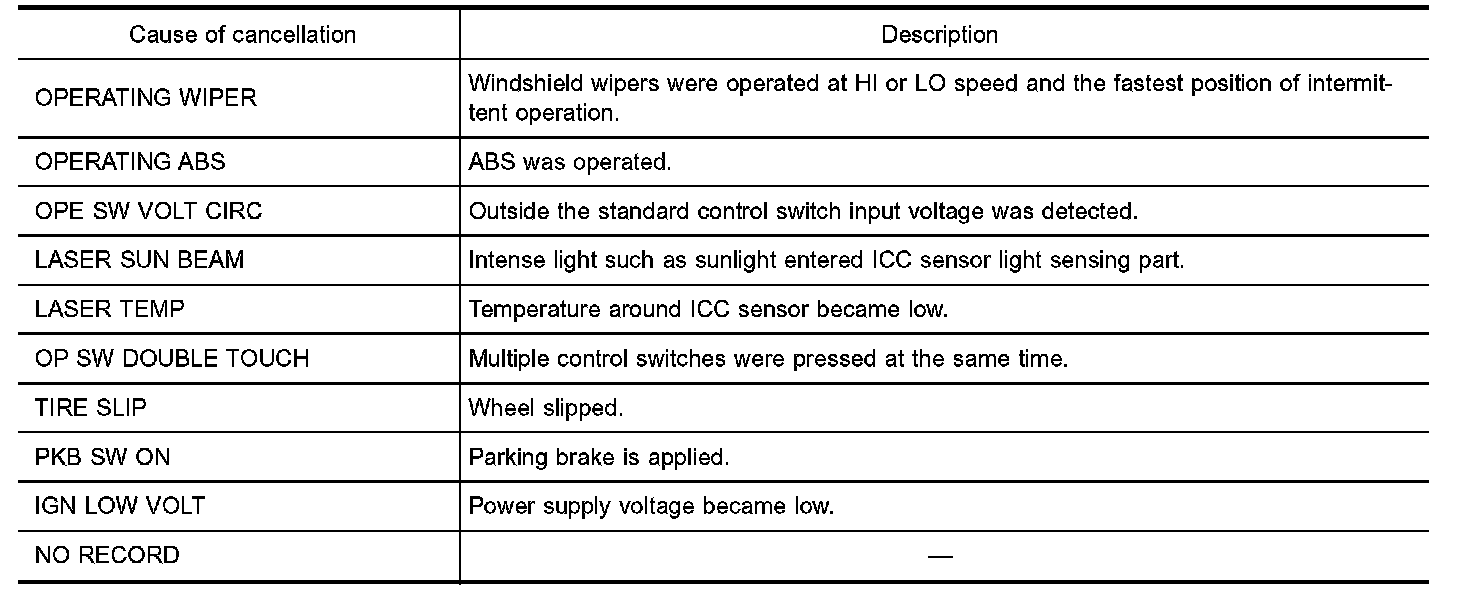

Display Item List:

CAUTION: Last five cancel (system cancel) causes are displayed.
