Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2003
>>
QX4 2WD V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Mount
Engine Mount

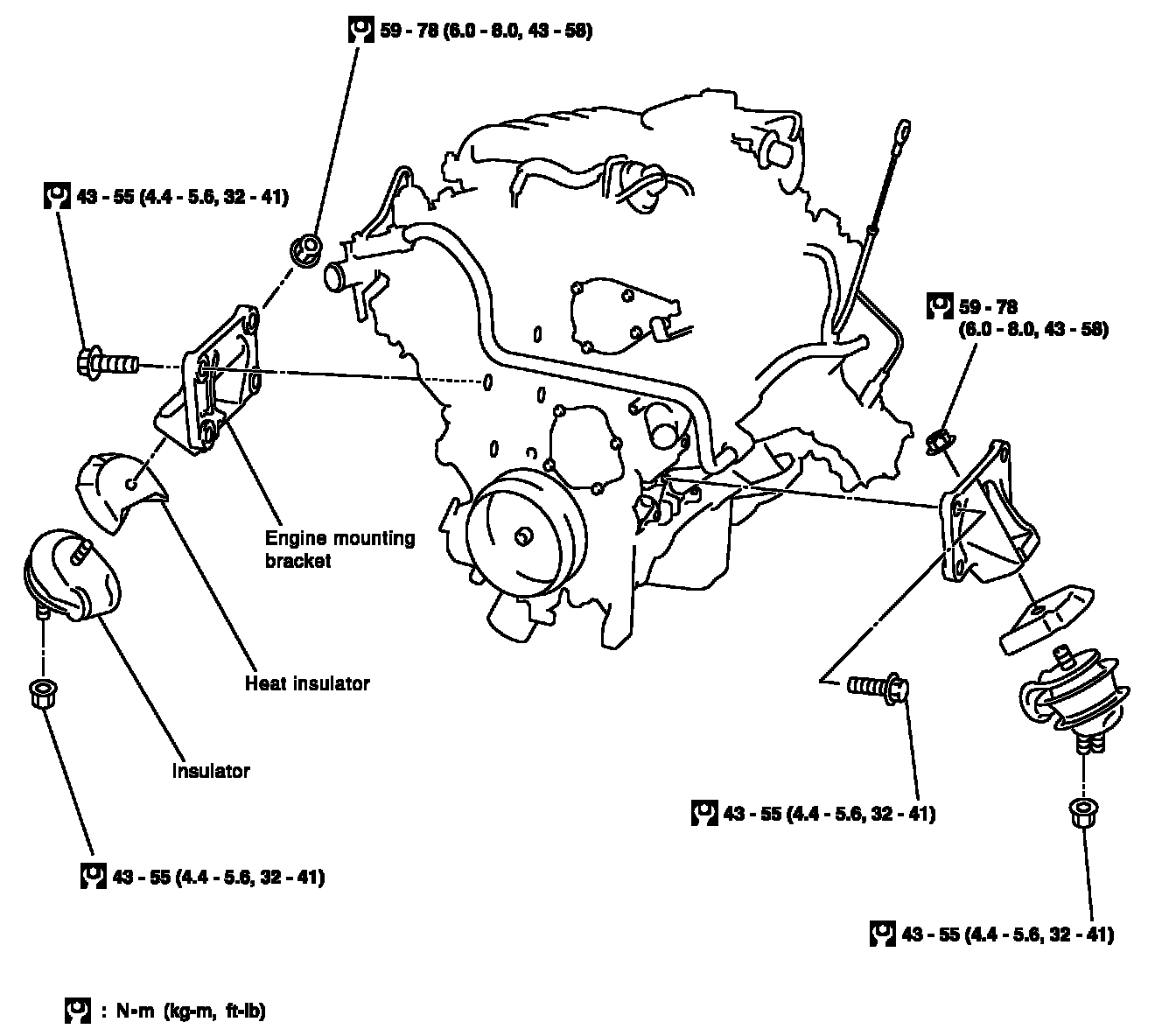

Front Engine Mounting

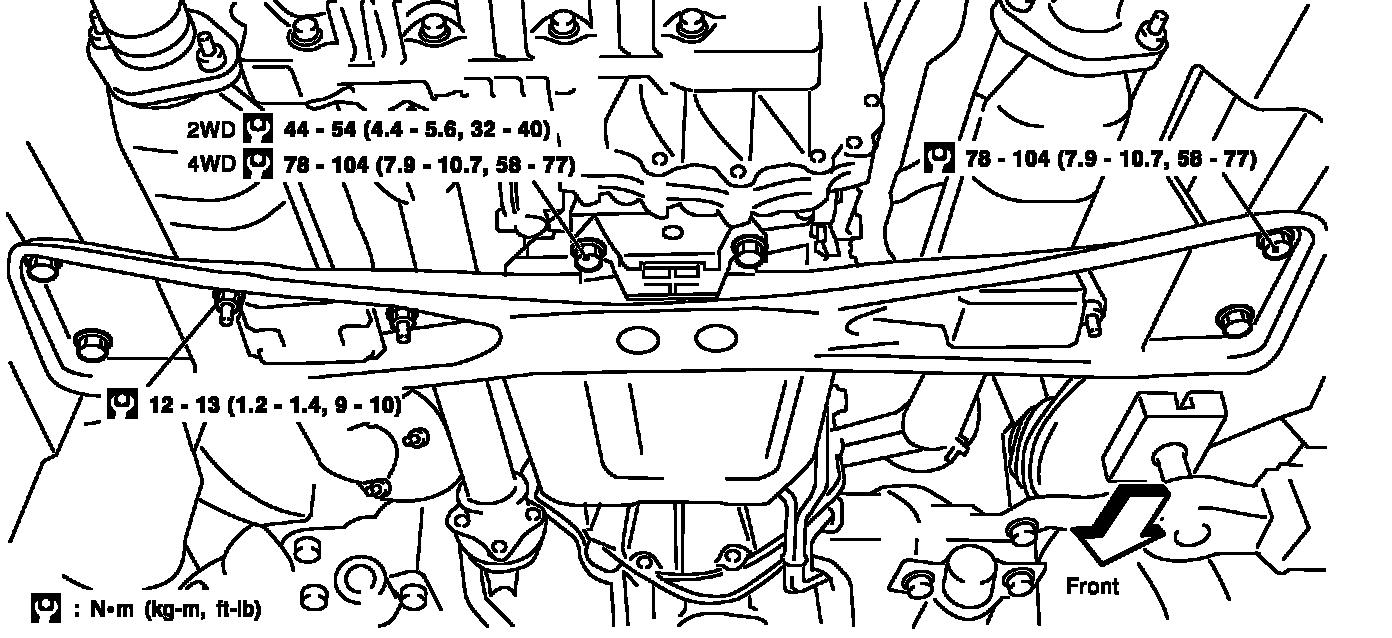

Rear Engine Mounting
