Steering Column

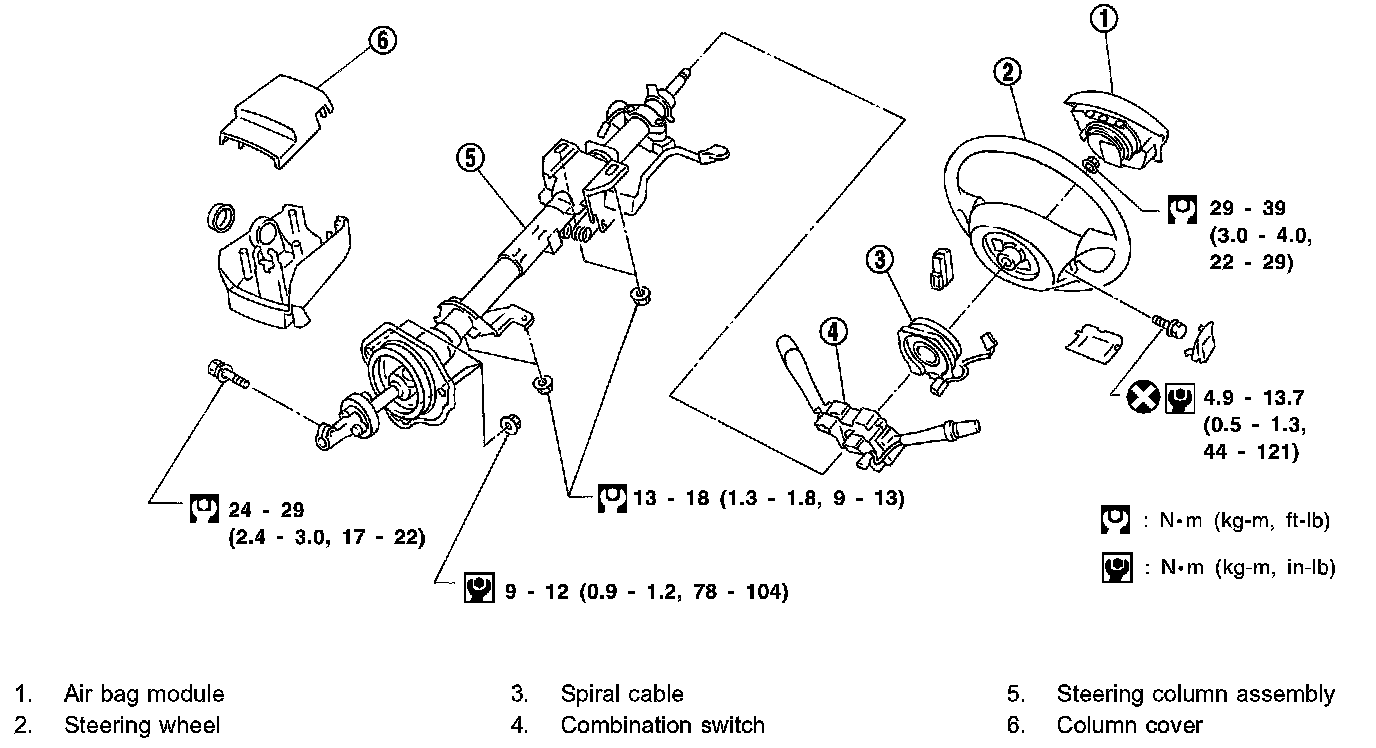

STEERING WHEEL AND STEERING COLUMN:

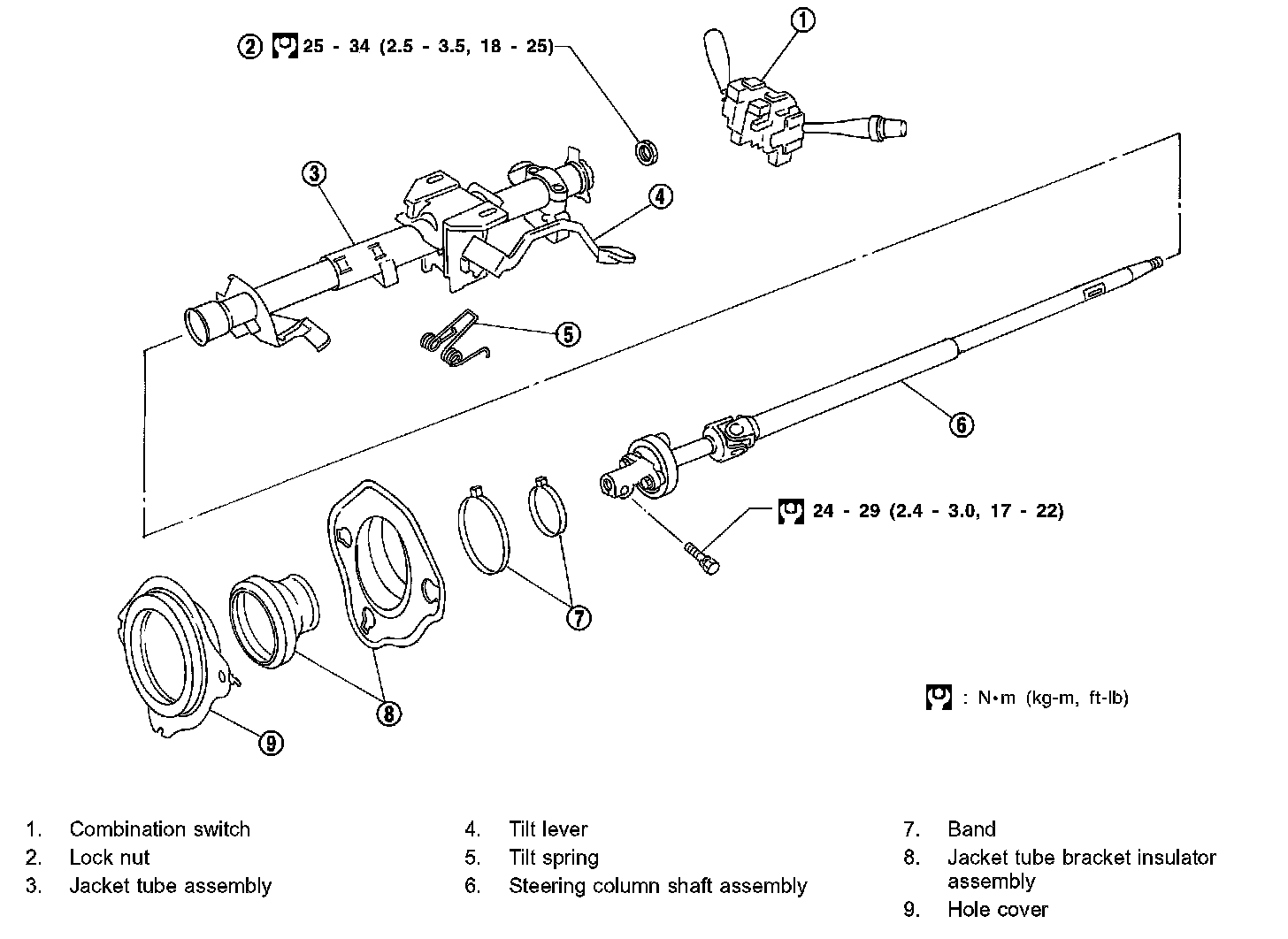

STEERING COLUMN:



STEERING / GENERAL SPECIFICATIONS:



STEERING COLUMN:
