Steering Gear
Steering Gear

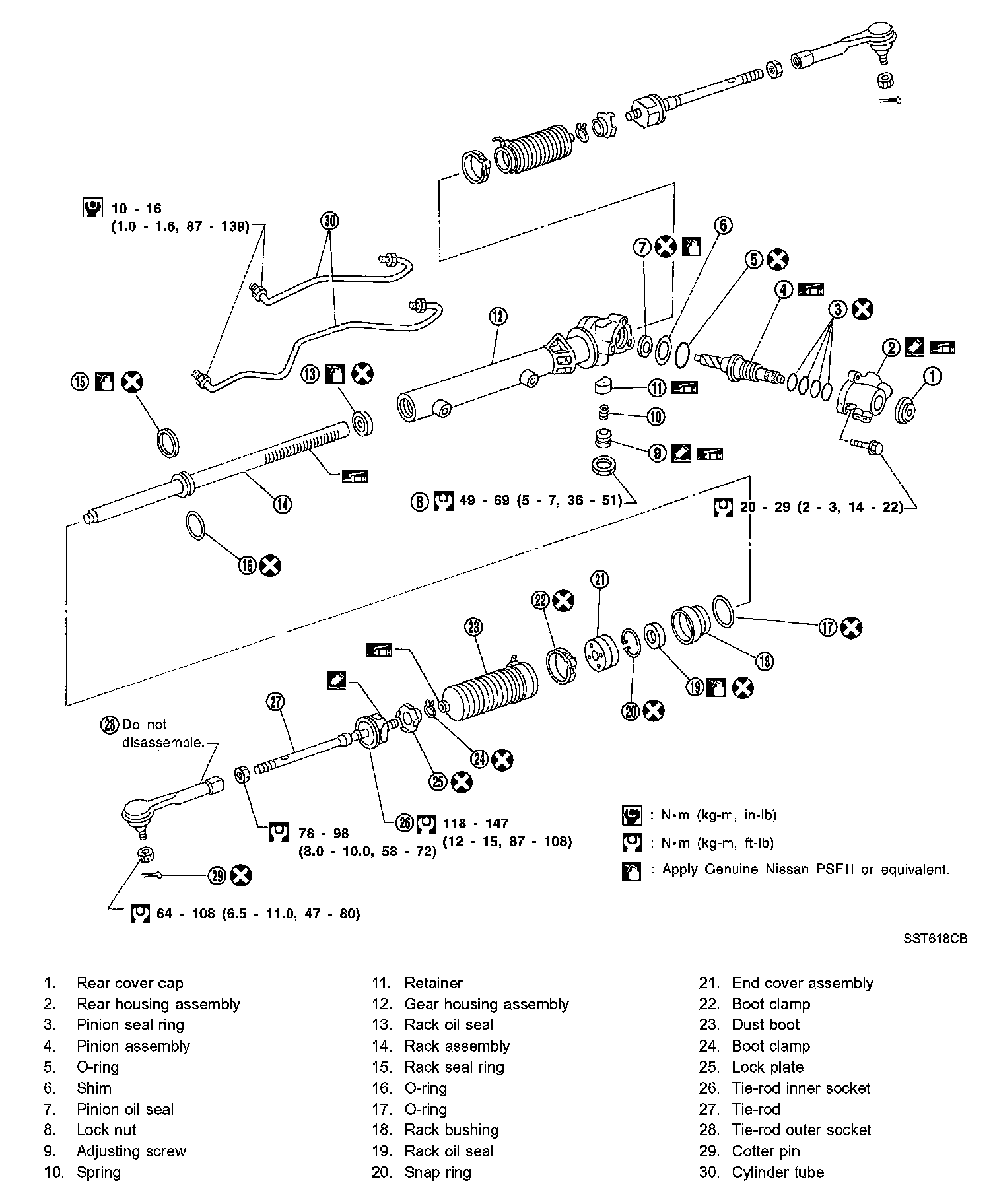

STEERING GEAR AND LINKAGE:
STEERING GEAR AND LINKAGE:
STEERING / GENERAL SPECIFICATIONS:

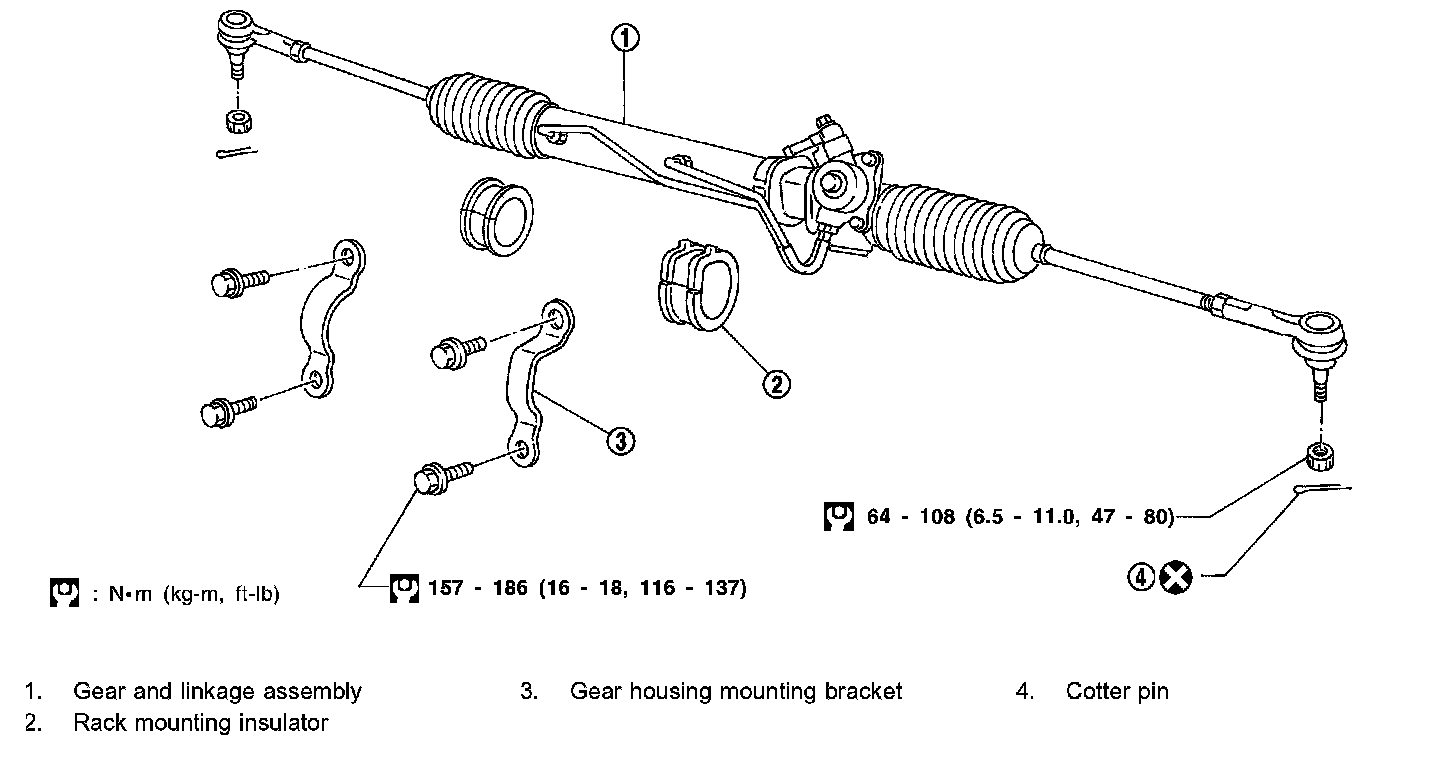

STEERING GEAR AND LINKAGE:
