Component Tests and General Diagnostics

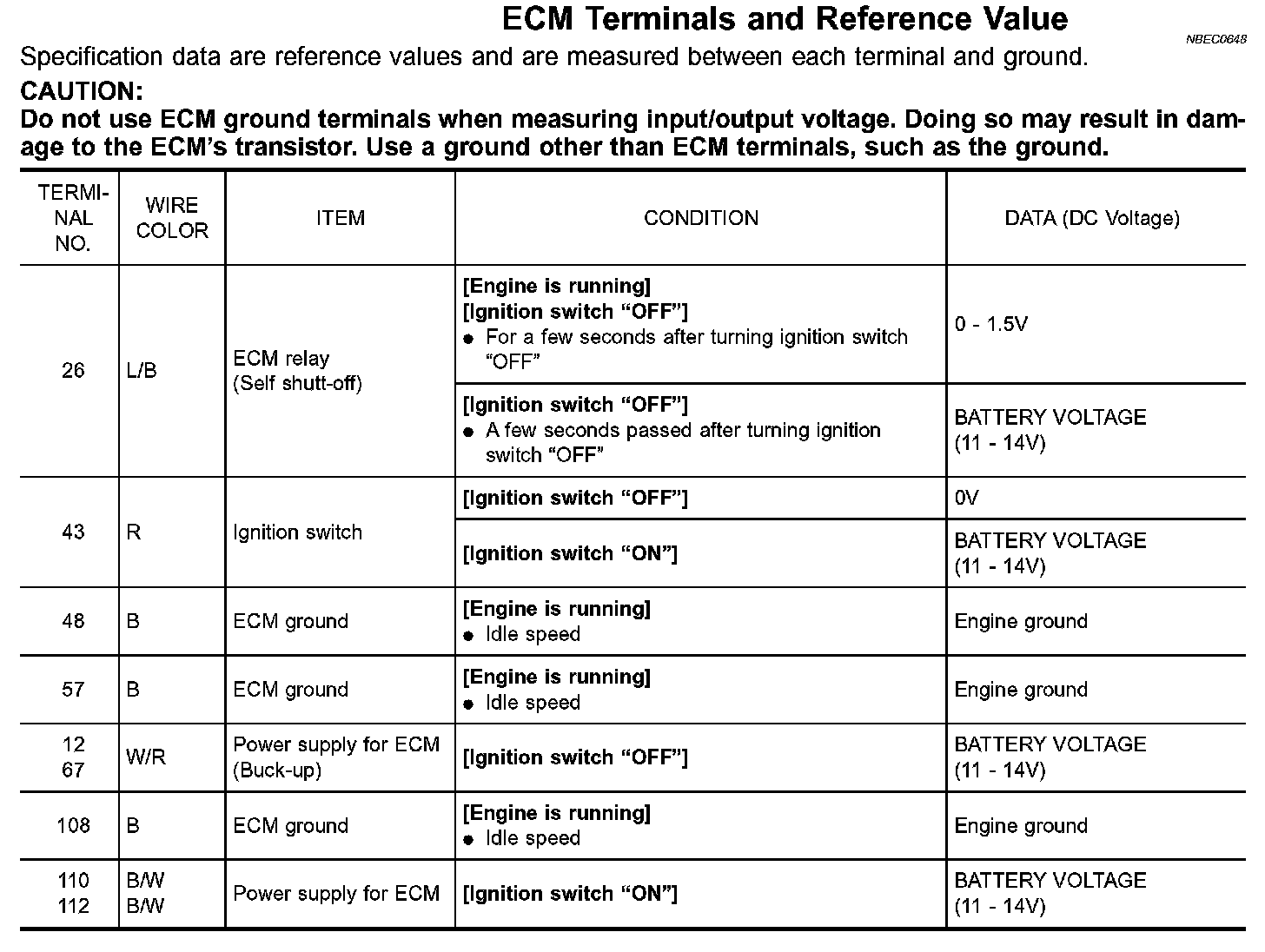

ECM Terminals And Reference Value:

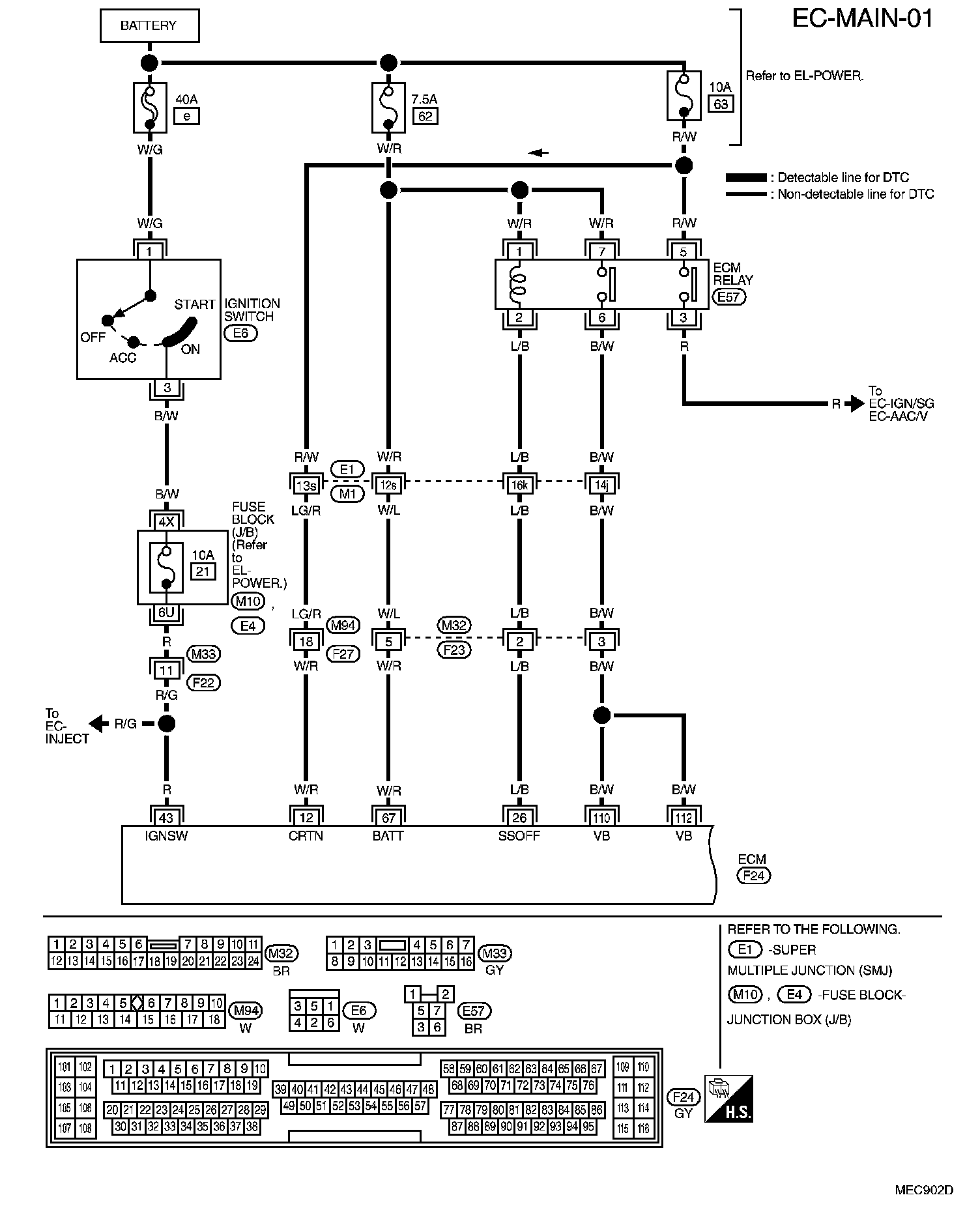

EC-MAIN-01 (Main Power Supply And Ground Circuit):

EC-MAIN-02 (Main Power Supply And Ground Circuit):

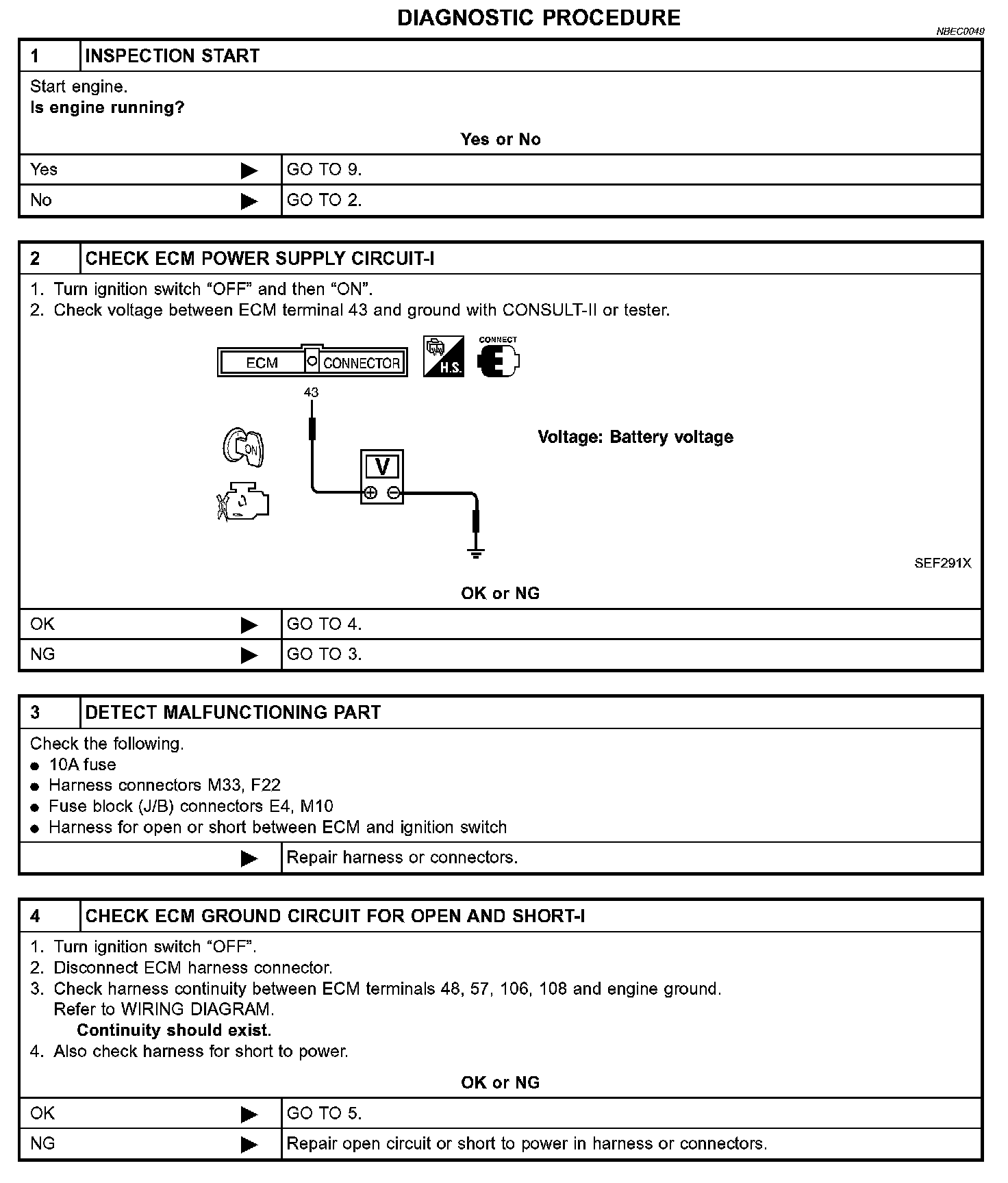

Diagnostic Procedure Step 1 - 4:

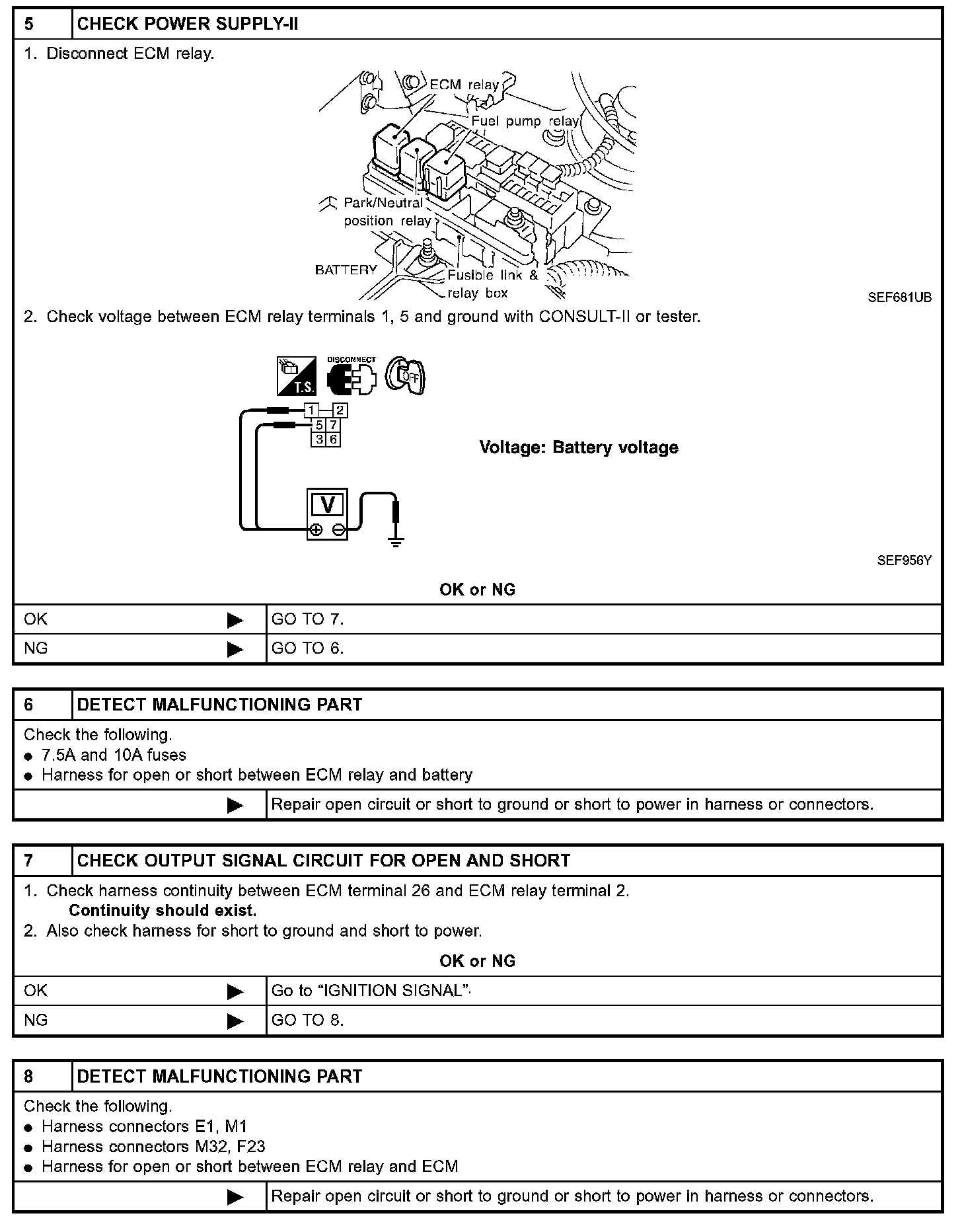

Diagnostic Procedure Step 5 - 8:

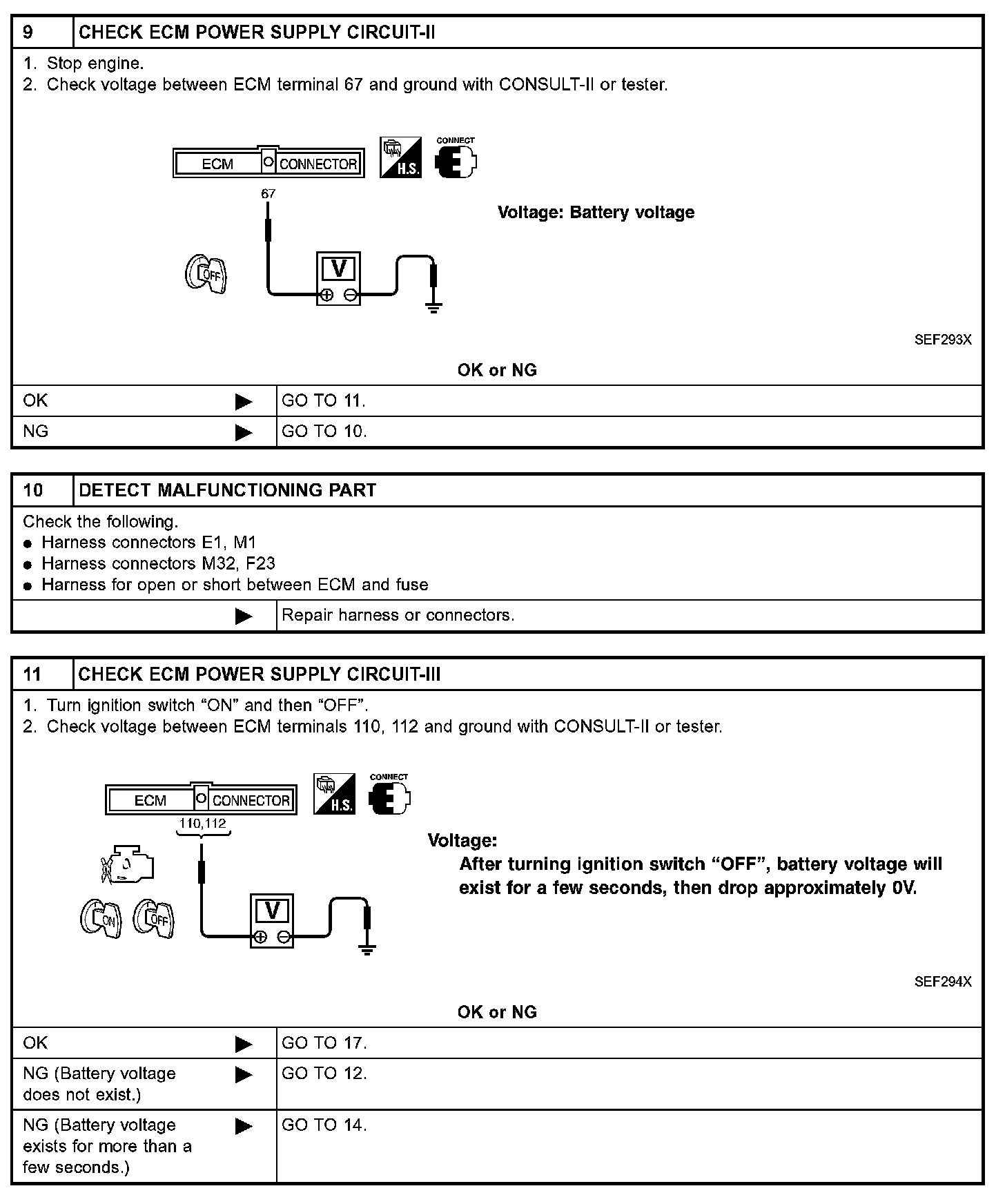

Diagnostic Procedure Step 9 - 11:

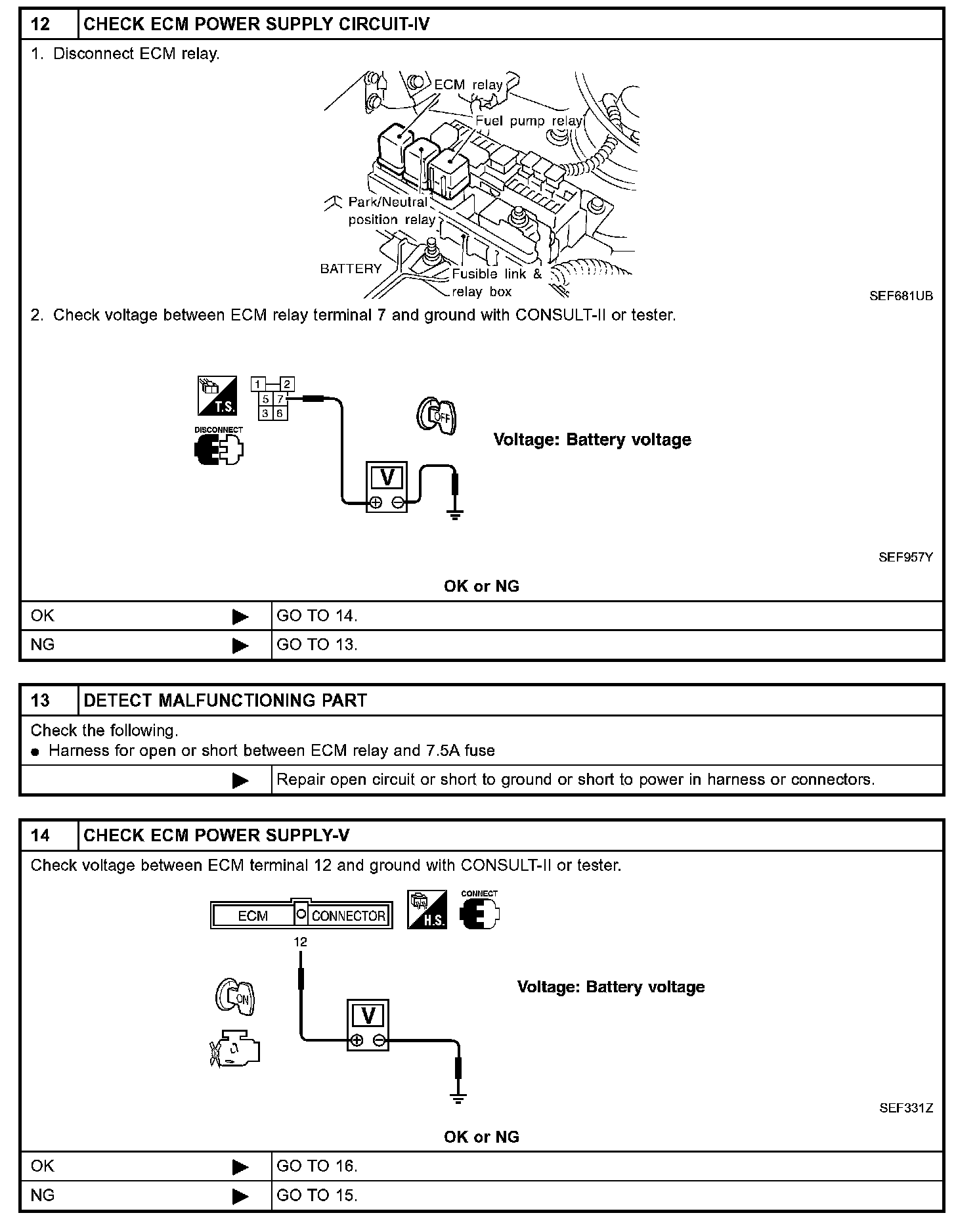

Diagnostic Procedure Step 12 - 14:

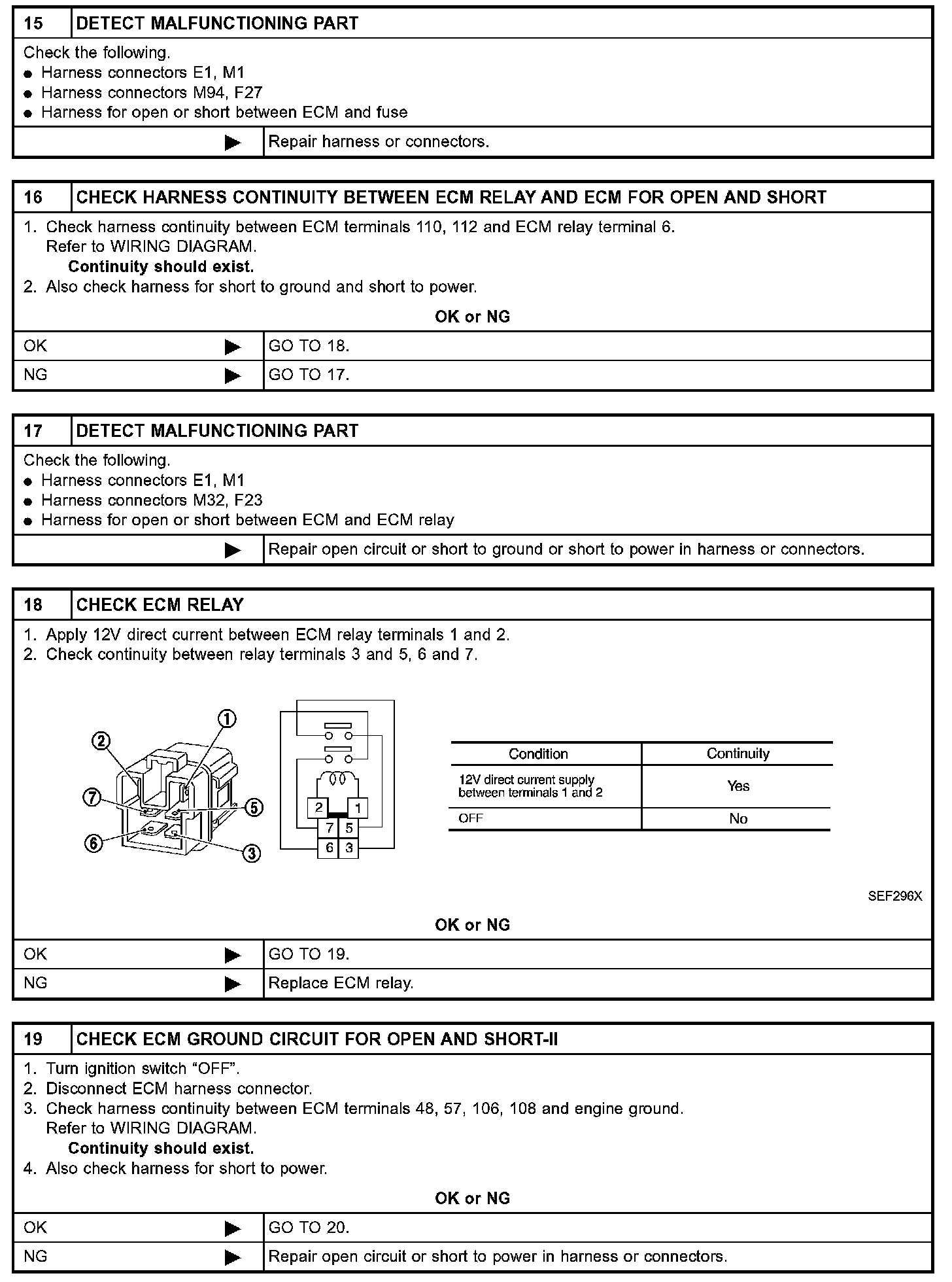

Diagnostic Procedure Step 15 - 19:

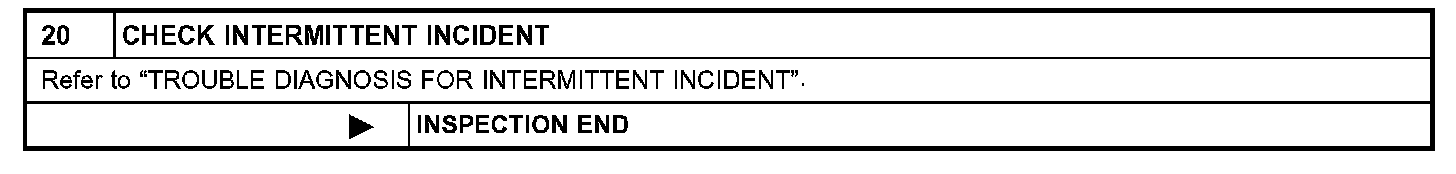

Diagnostic Procedure Step 20:
