System Specifications

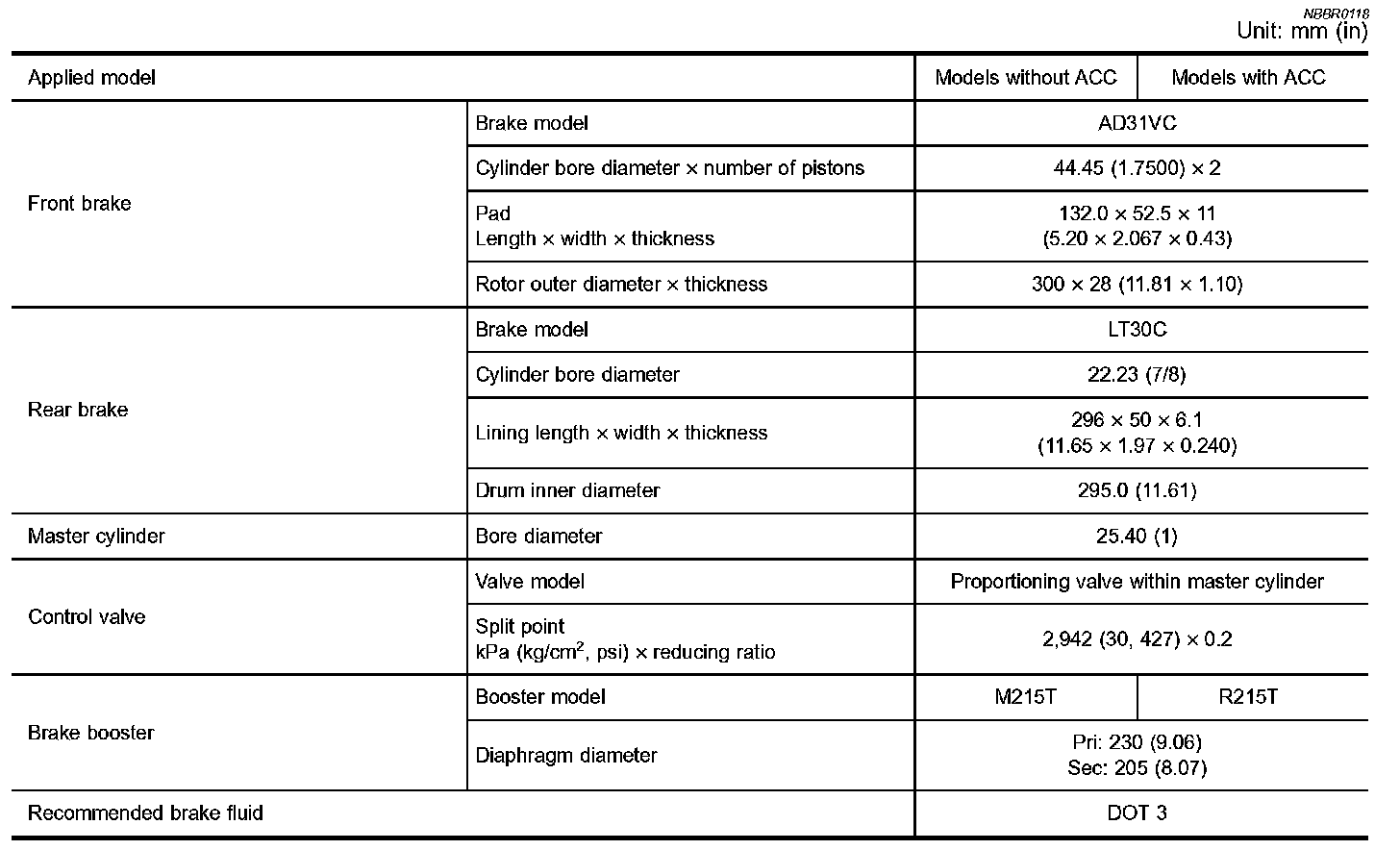

BRAKES / GENERAL SPECIFICATIONS:

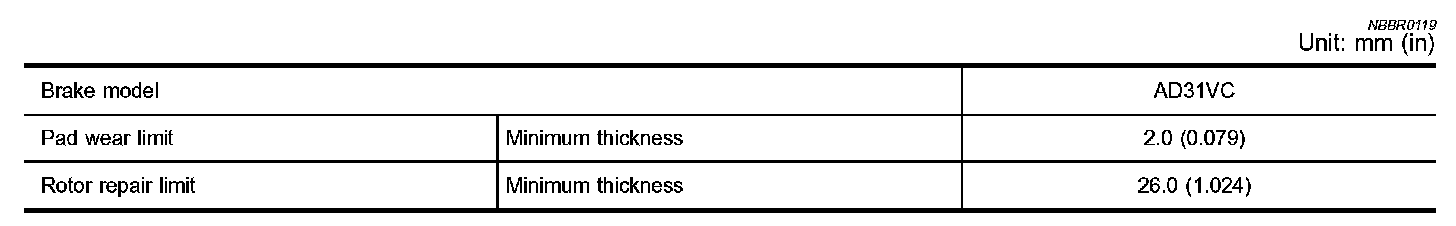

DISC BRAKE:

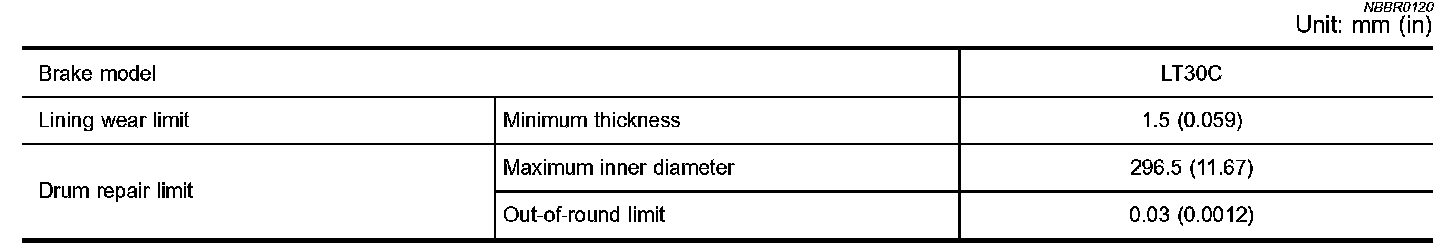

DRUM BRAKE:

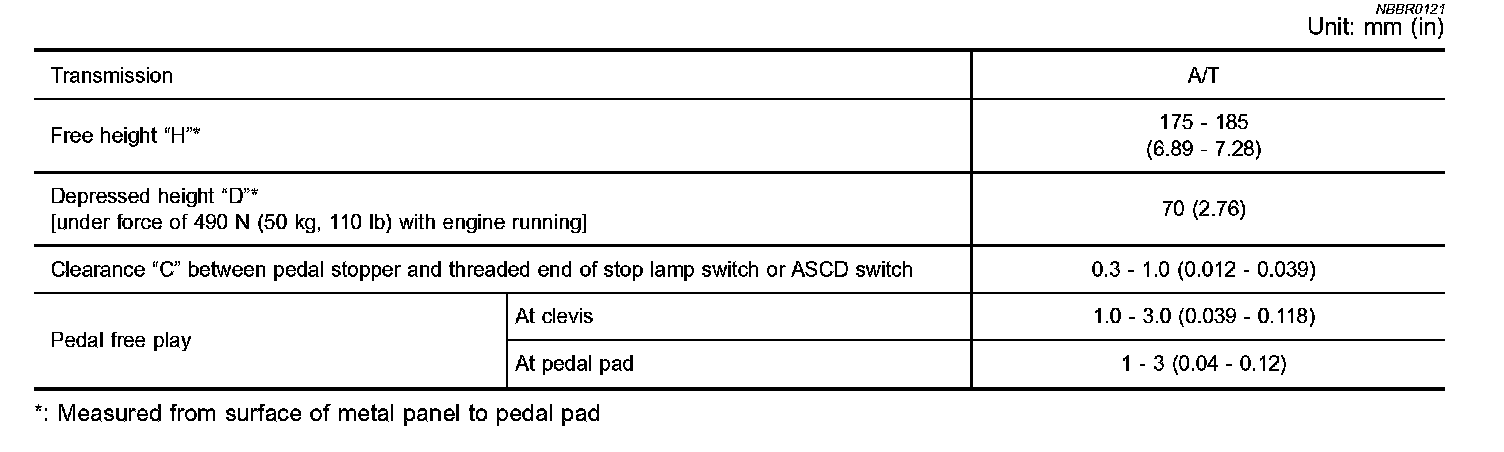

BRAKE PEDAL:



PARKING BRAKE CONTROL:
