Home
>>
Infiniti
>>
2003
>>
QX4 2WD V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
Electronic Brake Control Module
Electronic Brake Control Module

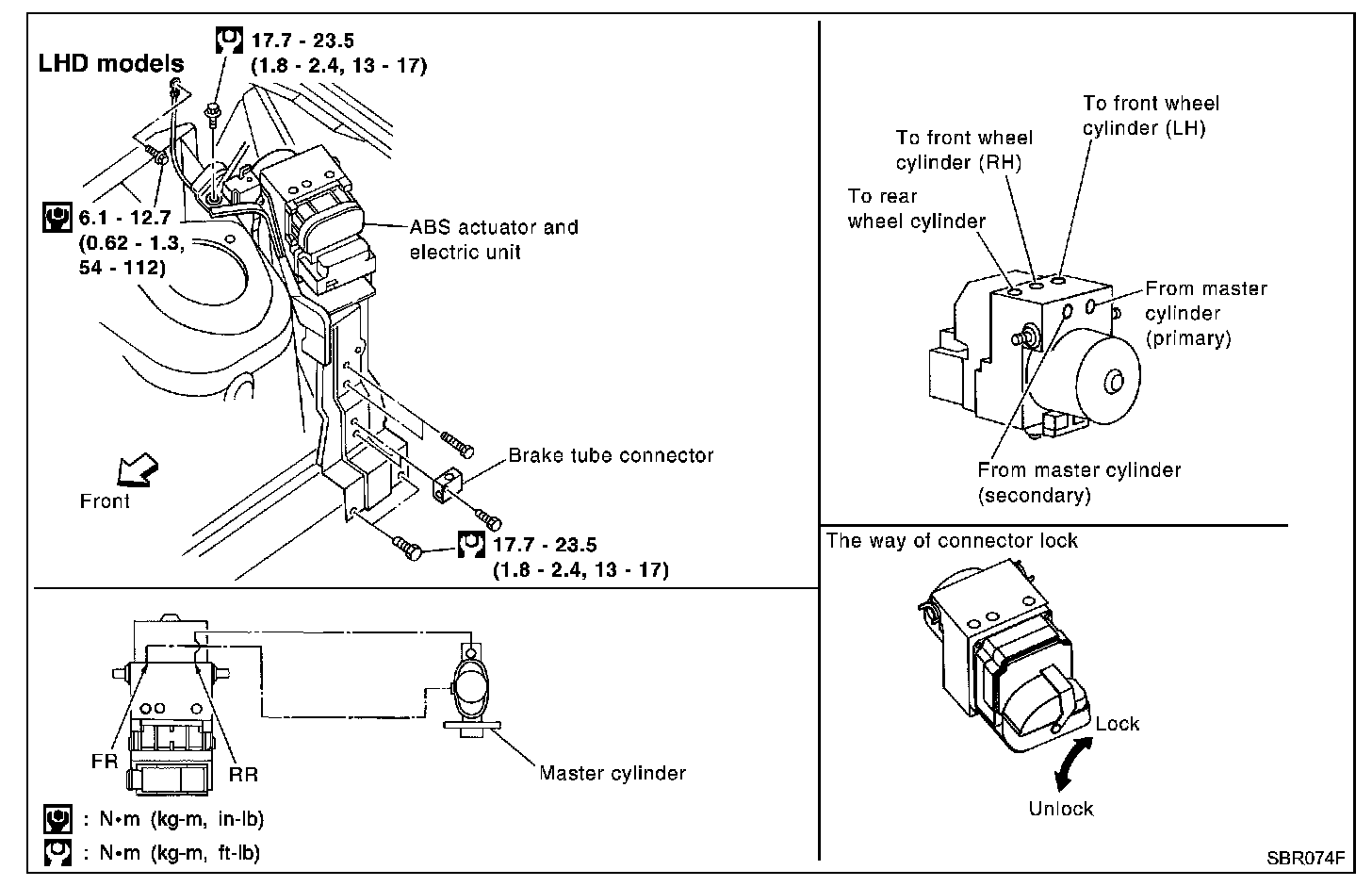

ABS Actuator and Electric Unit:
