System Specifications

Cylinder Block

Piston, Piston Ring and Piston Pin





AVAILABLE PISTON





PISTON RING





PISTON PIN





Connecting Rod





Crankshaft





Available Main Bearing





UNDERSIZE

Available Connecting Rod Bearing





CONNECTING ROD BEARING





UNDERSIZE





BEARING CLEARANCE








Outer Component Parts

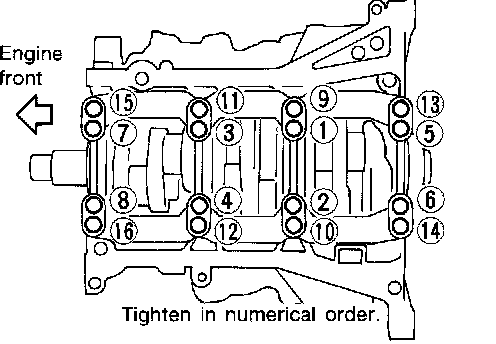

Crankshaft main bearing caps
Step 1 32 to 38 Nm (3.3 to 3.9 kg-m, 24 to 28 ft. lbs.)*

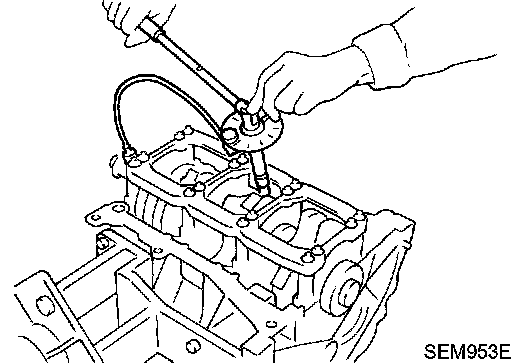

Step 2 Turn all bolts 90 to 95 degrees clockwise with angle wrench.
* in several different steps.





Connecting rod cap bolts
Step 1 19 to 21 Nm (1.9 to 2.1 kg-m, 14 to 15 ft. lbs.).
Step 2 Turn nuts 90 to 95 degrees clockwise with angle wrench.
