Intake Manifold

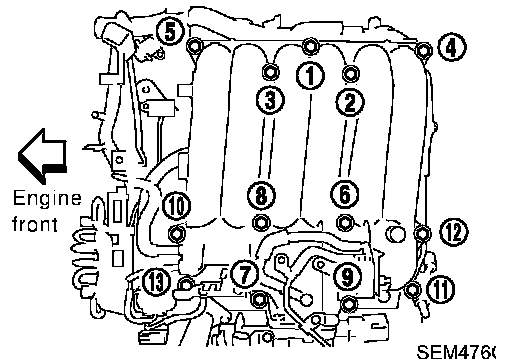

Intake Manifold Torque Sequence:

Intake Manifold
Step 1 5 to 10 Nm (0.5 to 1.0 kg-m, 44 to 86 inch lbs.)
Step 2 26 to 31 Nm (2.7 to 3.2 kg-m, 20 to 23 ft. lbs.)*
*: Tighten all bolts and nuts to the final torque, evenly dividing the tightening into at least three steps.

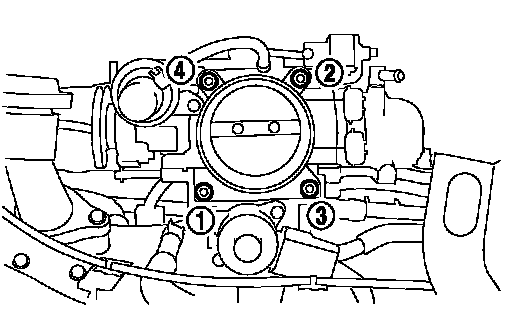

Throttle Body
Step 1 8.8 to 10.8 Nm (0.9 to 1.1 kg-m, 79 to 95 inch lbs.)
Step 2 18 to 21 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)





Upper Intake Manifold Collector 18 to 21 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)

LOWER INTAKE MANIFOLD COLLECTOR TORQUE SEQUENCE:

Lower Intake Manifold Collector 18 to 21 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)
