System Specifications

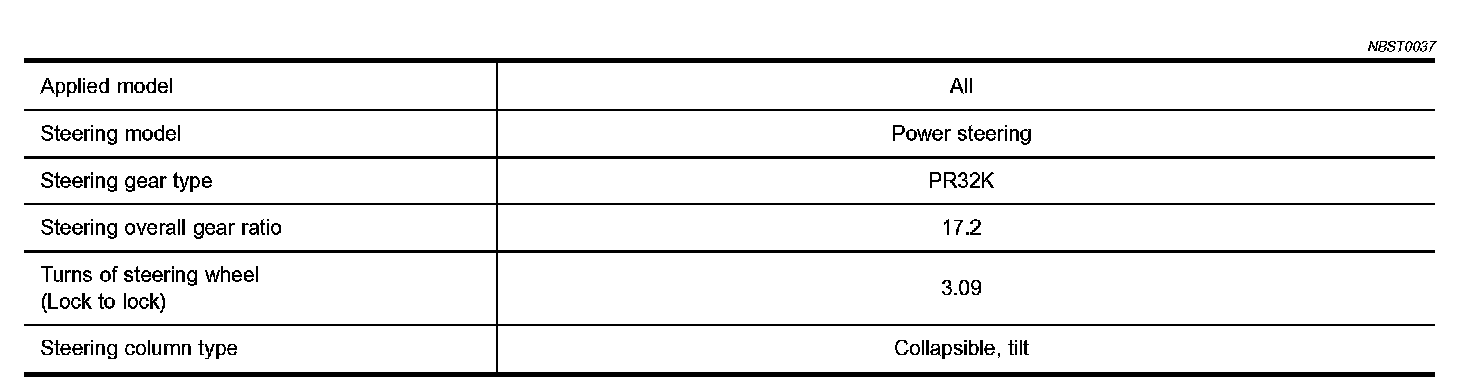

STEERING / GENERAL SPECIFICATIONS:



STEERING WHEEL:

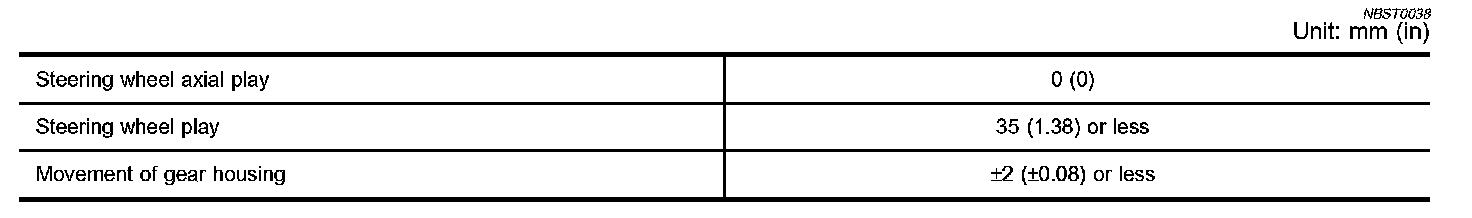

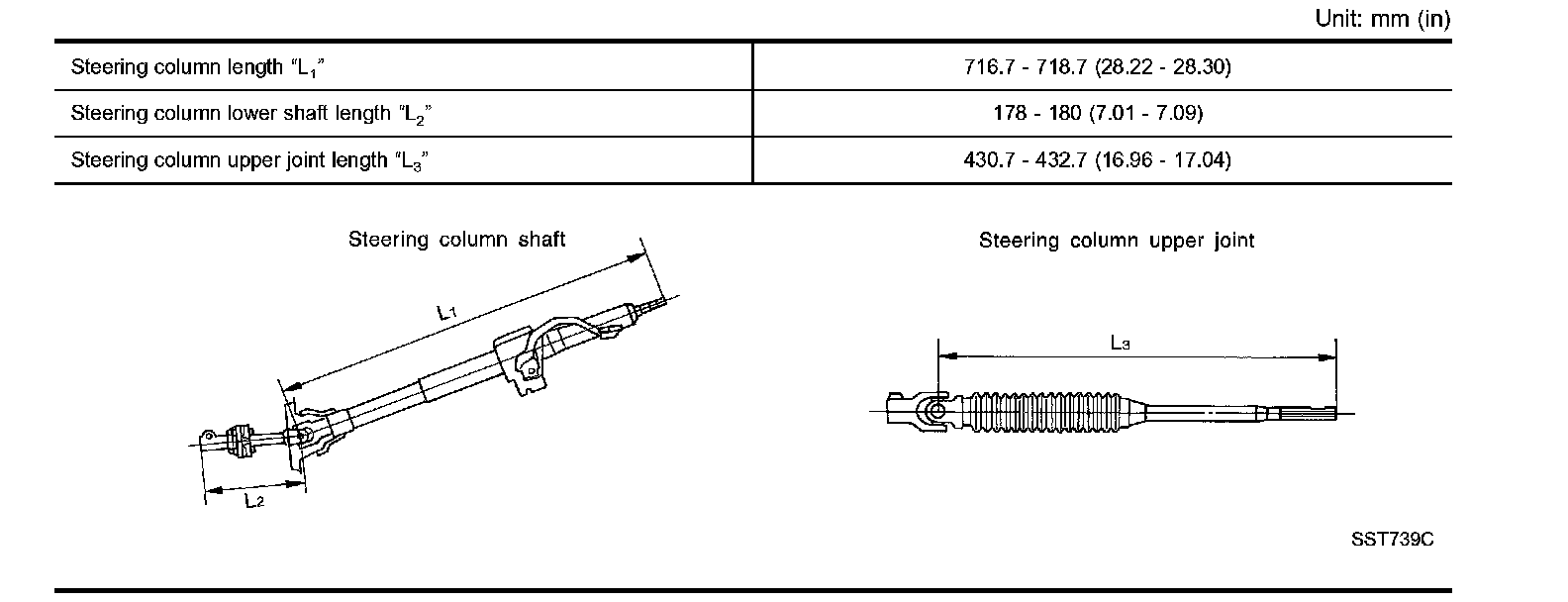

STEERING COLUMN:



STEERING TRANSFER GEAR:

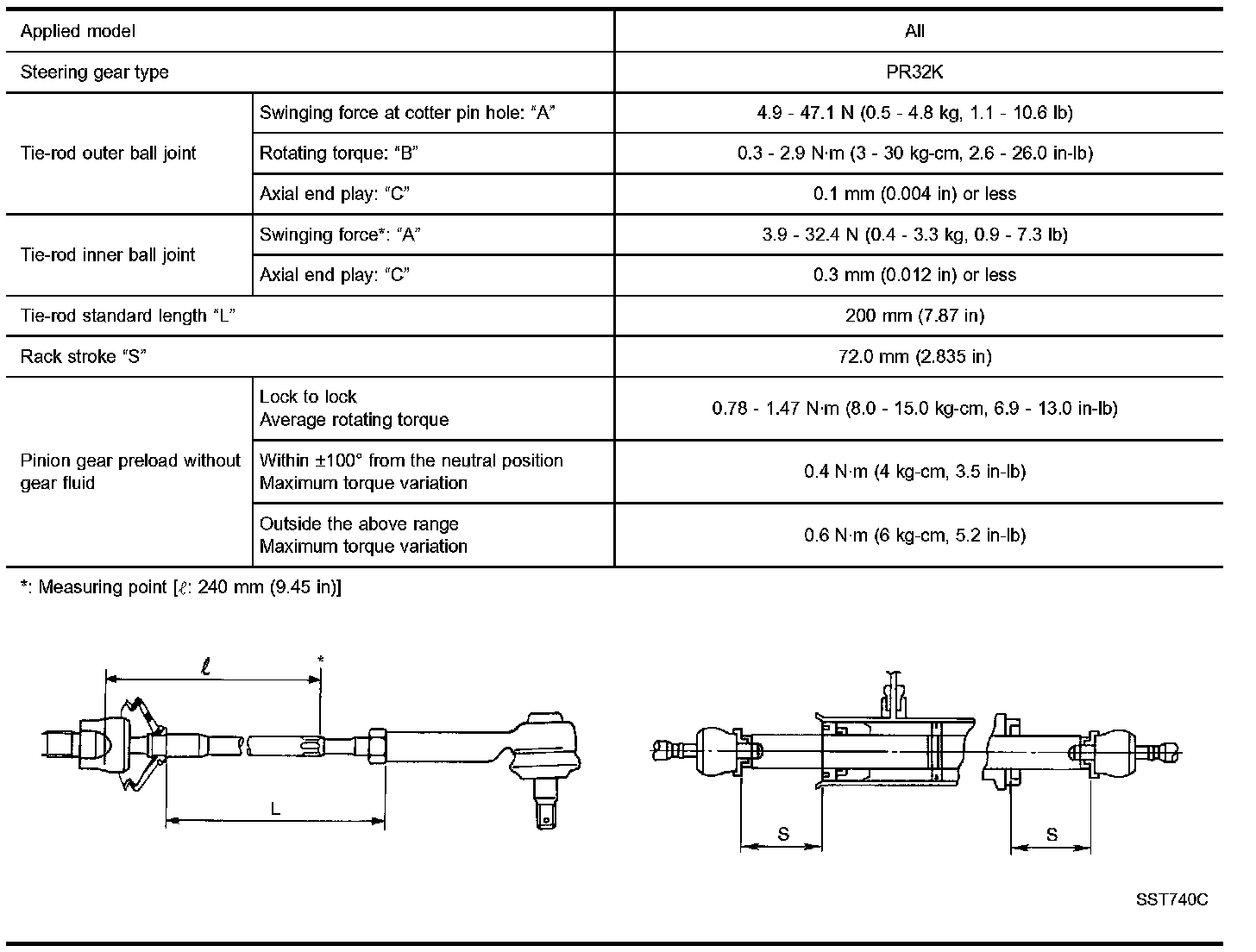

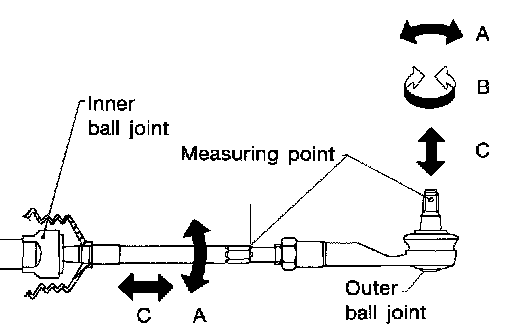

STEERING GEAR AND LINKAGE:

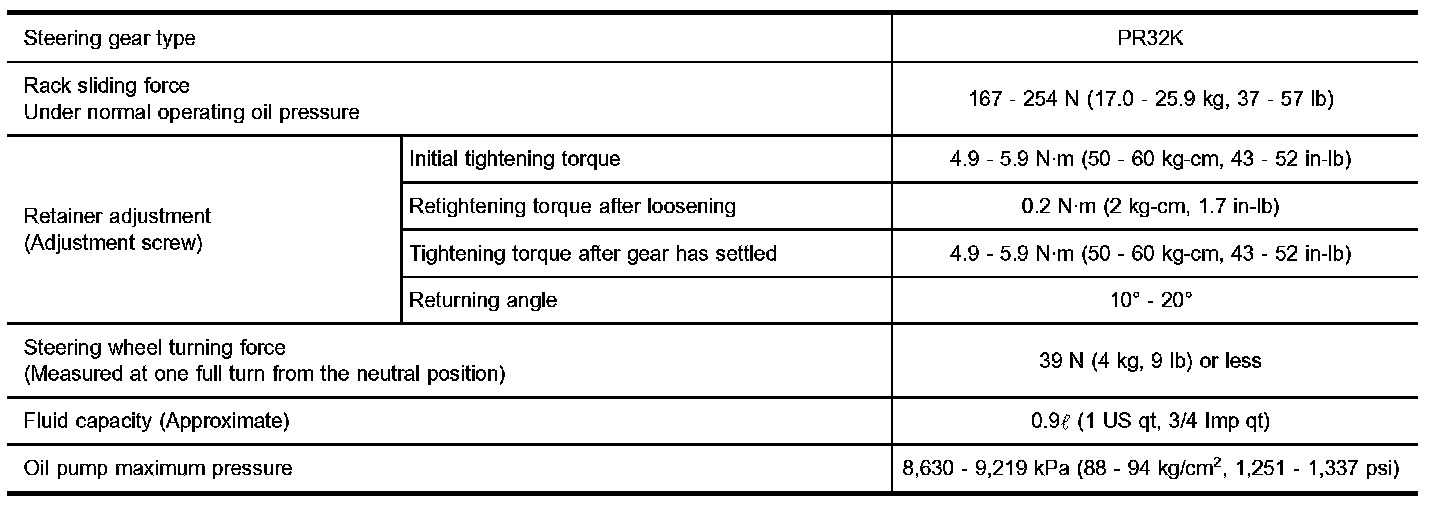

POWER STEERING:
