Front

FRONT SUSPENSION (2WD):

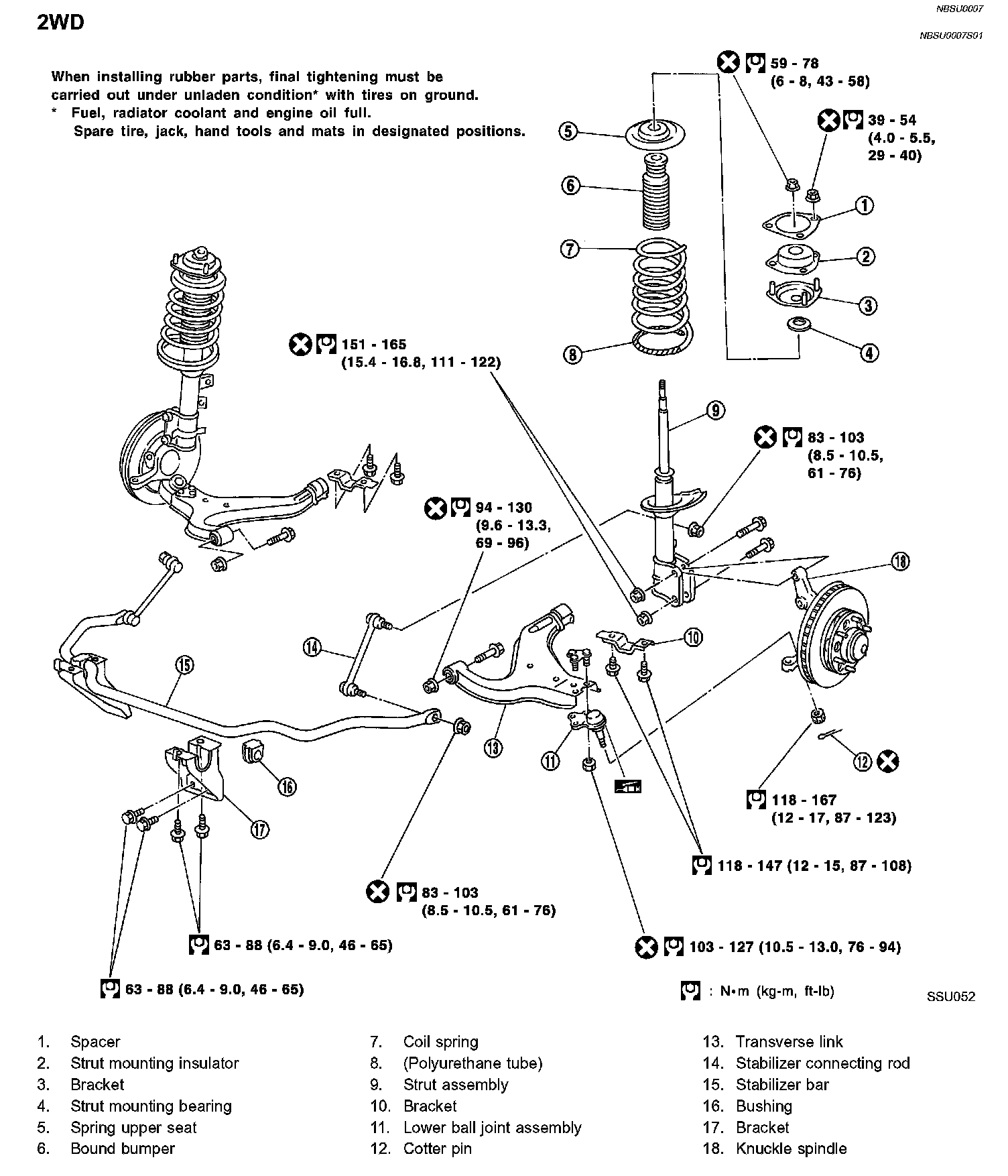

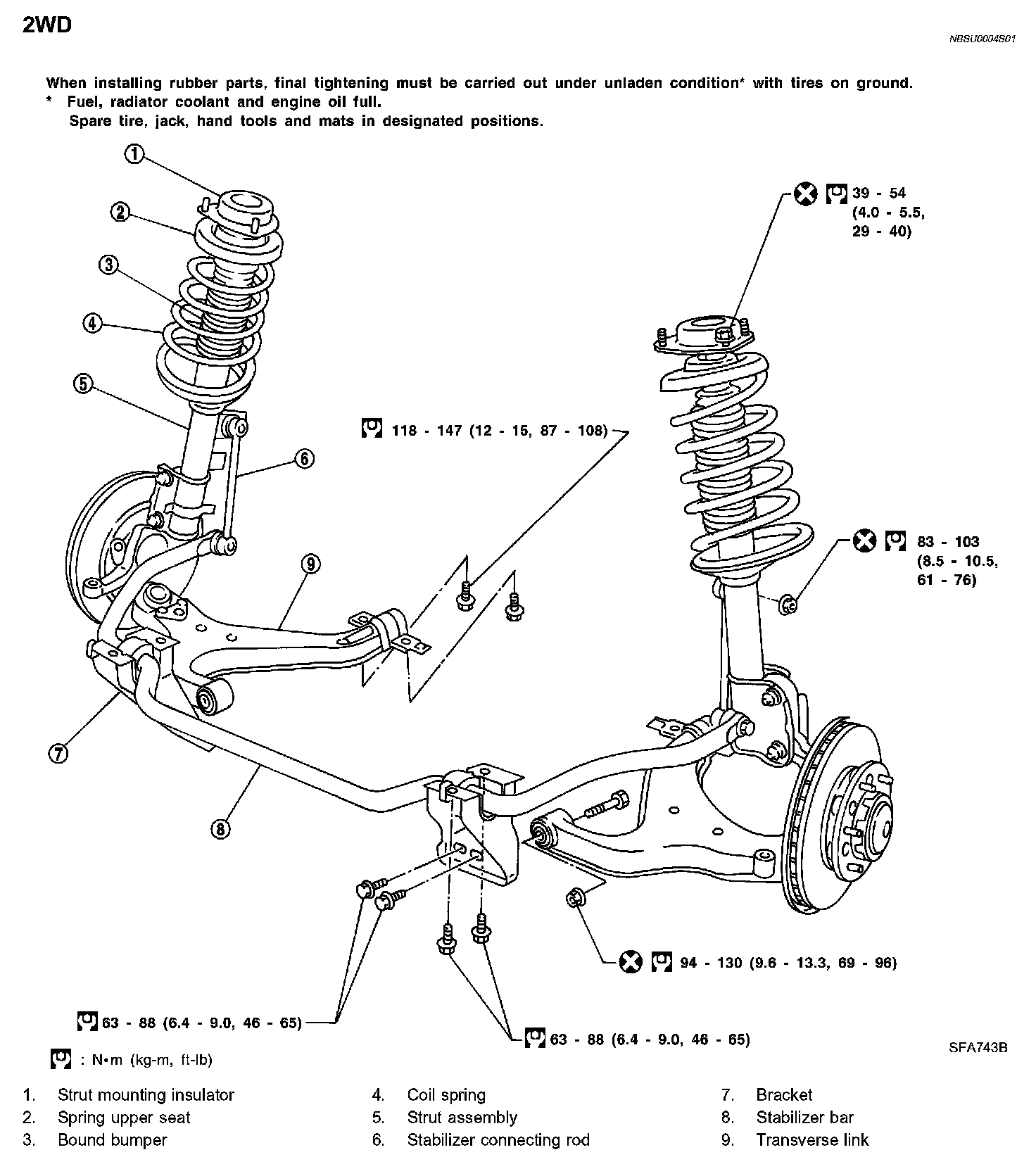

FRONT/COIL SPRING AND STRUT ASSEMBLY (2WD):

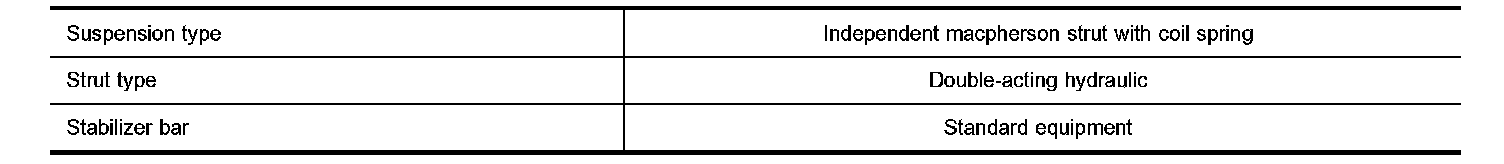

GENERAL SPECIFICATIONS (FRONT):

WHEEL ALIGNMENT (UNLADEN *1):

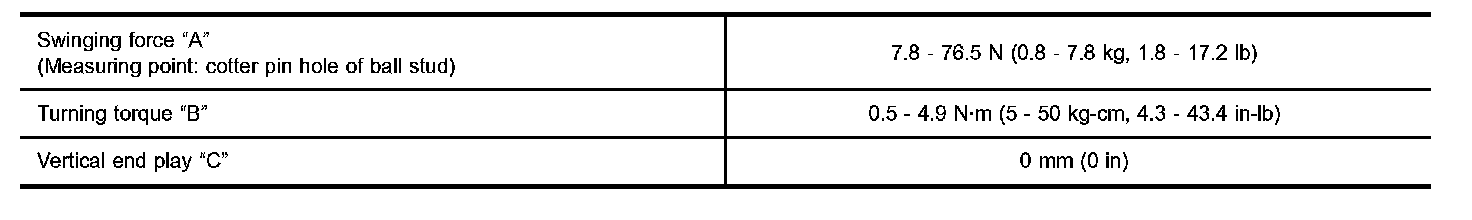

LOWER BALL JOINT:

WHEEL ARCH HEIGHT [RIDE HEIGHT] (UNLADEN*):

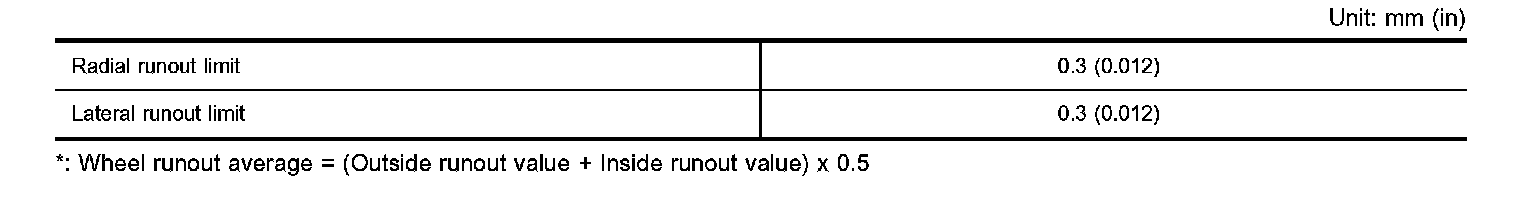

WHEEL RUNOUT AVERAGE:
