Front

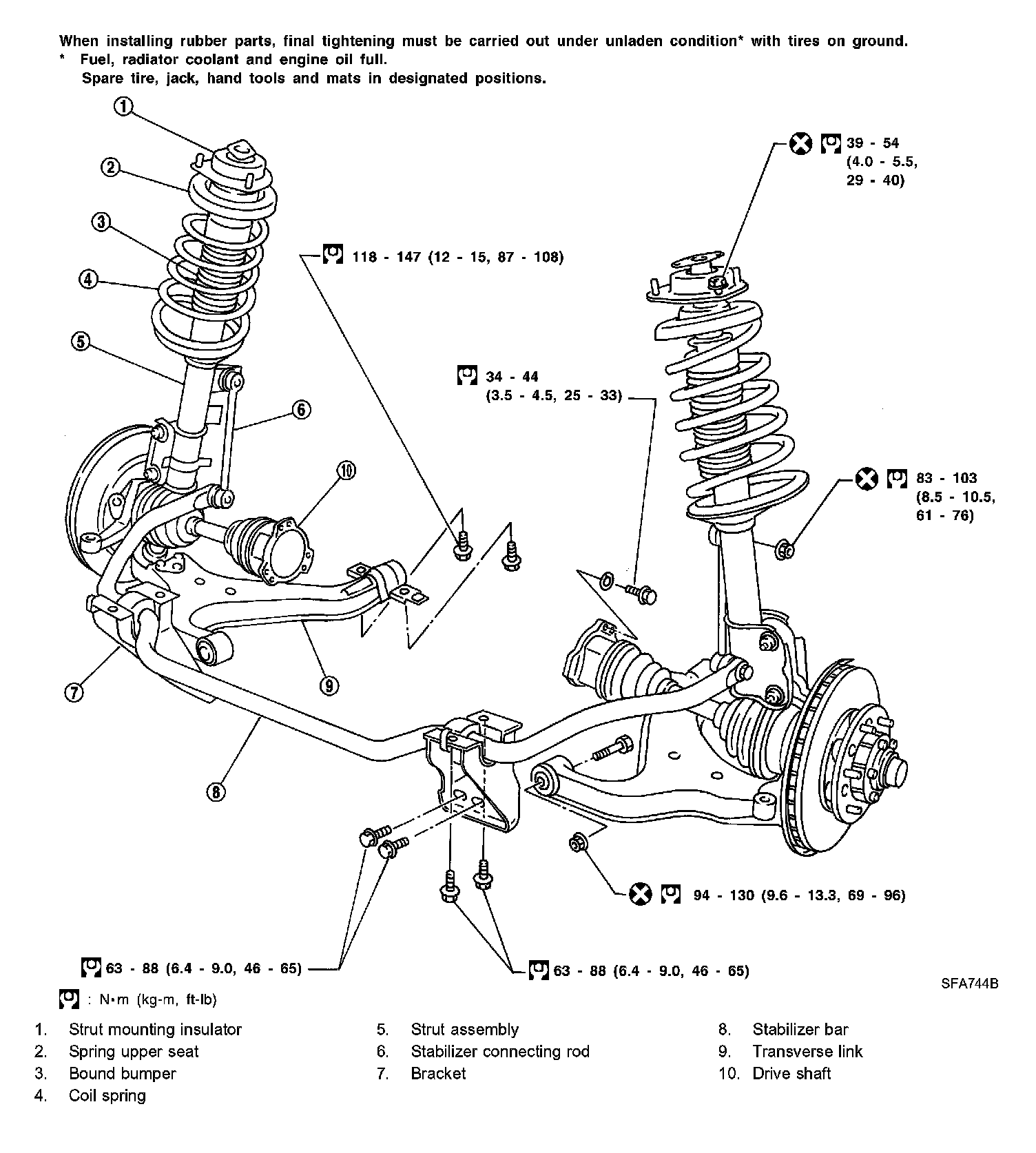

FRONT SUSPENSION (4WD):

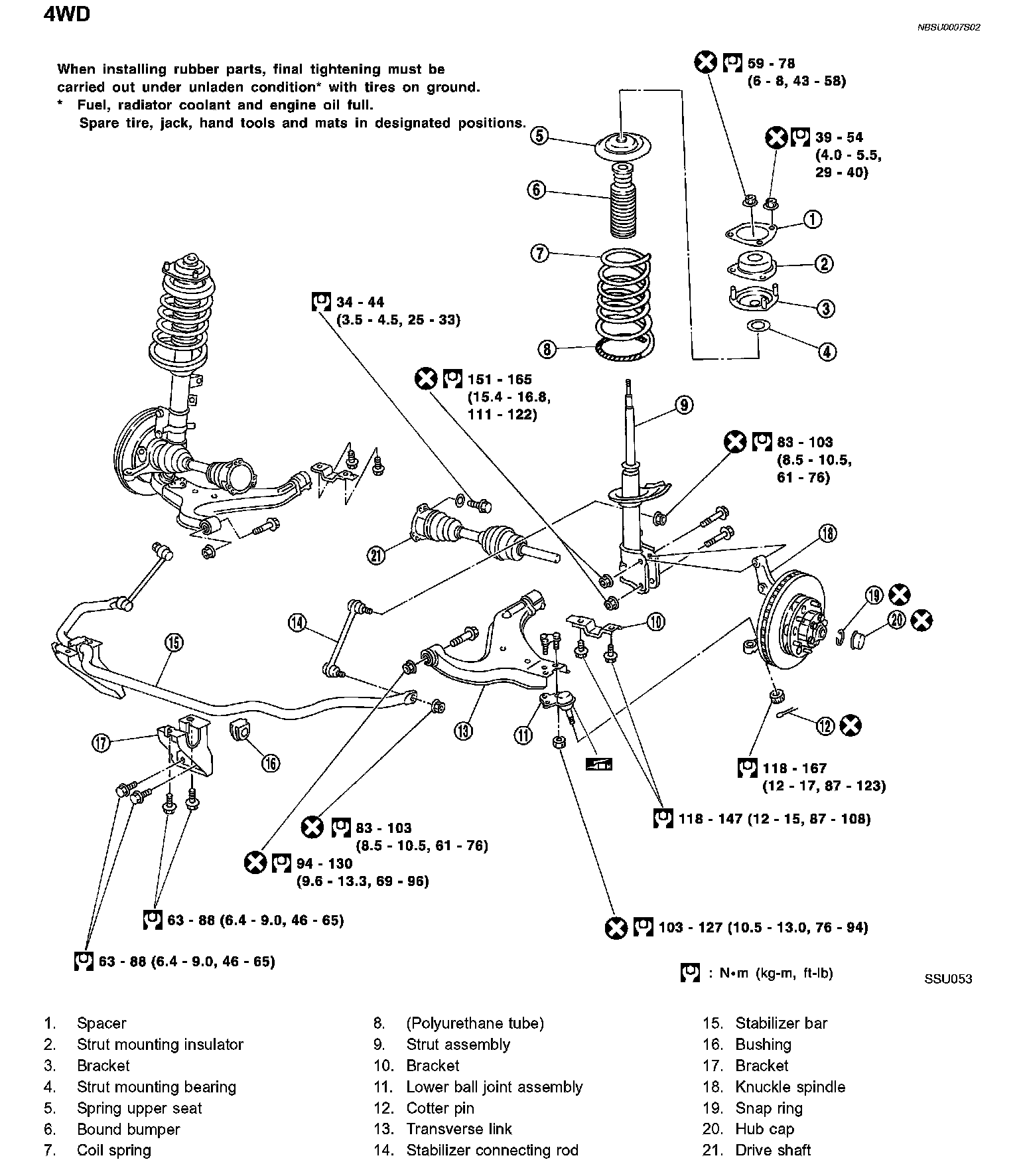

FRONT/COIL SPRING AND STRUT ASSEMBLY (4WD):

GENERAL SPECIFICATIONS (FRONT):

WHEEL ALIGNMENT (UNLADEN *1):

LOWER BALL JOINT:

WHEEL ARCH HEIGHT [RIDE HEIGHT] (UNLADEN*):

WHEEL RUNOUT AVERAGE:
