Disassembly and Assembly

DISASSEMBLY

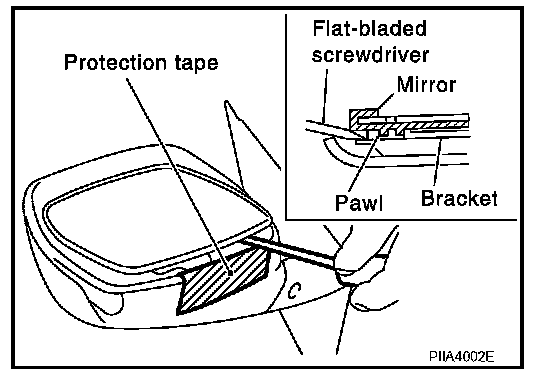

1. Place the mirror body with mirror glass facing upward.
2. Put strip of protective tape on mirror body.
3. As shown in the figure insert a small flat-bladed screwdriver into the recess between mirror base (mirror holder) and mirror holder bracket and push up tabs (2) to remove mirror holder lower half side.

NOTE:
When pushing up tabs do not attempt to use 1 recess only, be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating (twist) to make work easier.

4. Remove terminal (2) of mirror heater attachment.
5. Lightly lift up lower side of mirror surface from mirror surface, and detach clips (2) of upper side as if pulling it out. Remove mirror surface from mirror body.

NOTE: Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side of mirror surface (mirror holder).




ASSEMBLY
1. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
2. Connect terminal (2) of heater installed mirror.

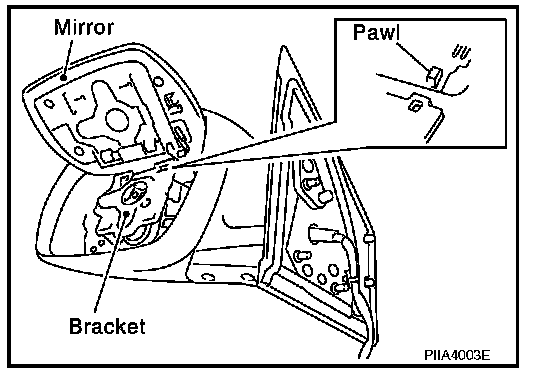

3. Fit the upper tabs (2) on the mirror face onto the mirror holder bracket first, then press the lower side of mirror face until a click sound is heard to engage the lower tabs.

NOTE: After installation, visually make sure lower tabs (2) are securely engaged from the bottom of mirror face.
