Evaporator Temperature Sensor / Switch: Description and Operation

COMPONENT DESCRIPTION

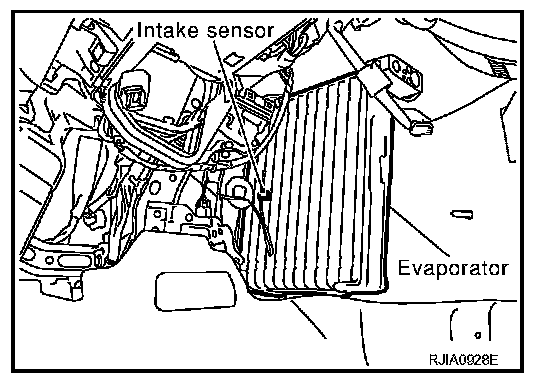

Intake Sensor
The intake sensor is located on the heater & cooling unit. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the unified meter and A/C amp.
