Navigation Module: Service and Repair
Removal and Installation of NAVI control UnitREMOVAL 1.
Remove passenger side seat.
2.

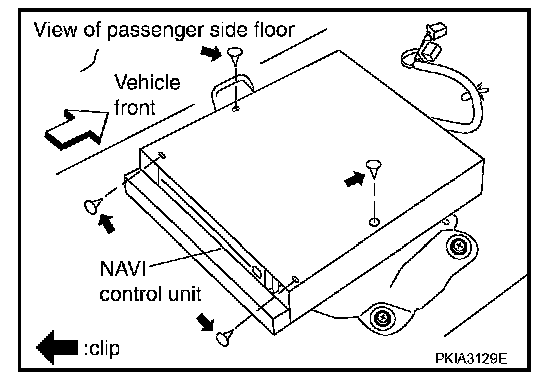

Remove clips (4), and remove NAVI control unit cover.
3.

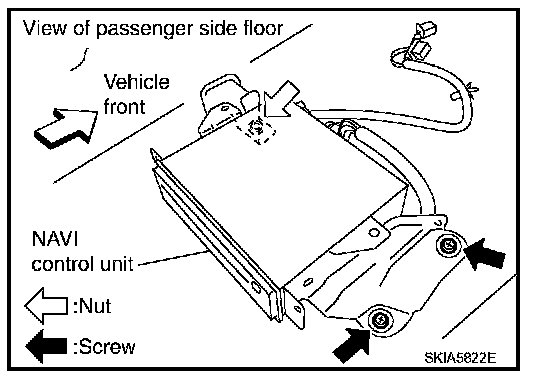

Remove screws (2) and nut (1) with power tool, and remove NAVI control unit.
4.

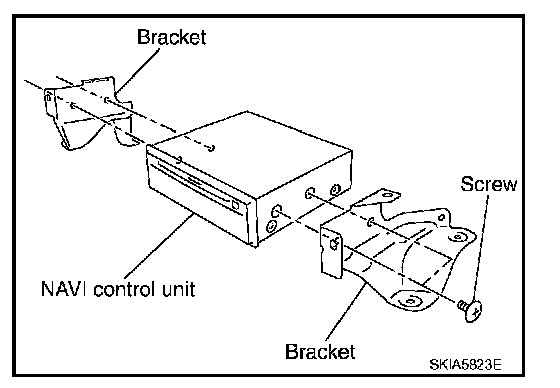

Remove screws (4) with power tool and remove bracket.
INSTALLATIONInstall in the reverse order of removal.
