Keyless Entry Transmitter Battery: Testing and Inspection

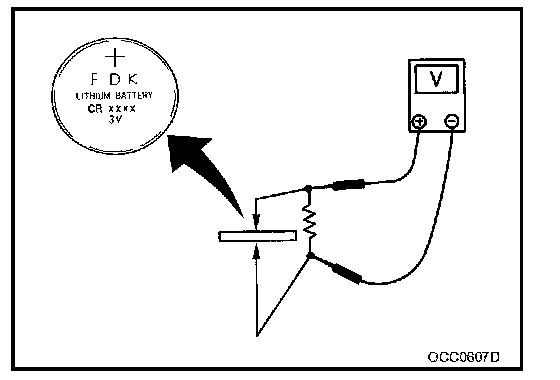

REMOTE CONTROLLER BATTERY INSPECTIONCheck by connecting a resistance (approximately
300 ohms) so that the current value becomes about
10 mA.
Standard : Approx.
2.5 V - 3.0 V
