Removal and Installation of Intelligent Key Unit
Removal and Installation of Intelligent Key UnitREMOVAL 1.
Remove the instrument lower driver panel.
2.

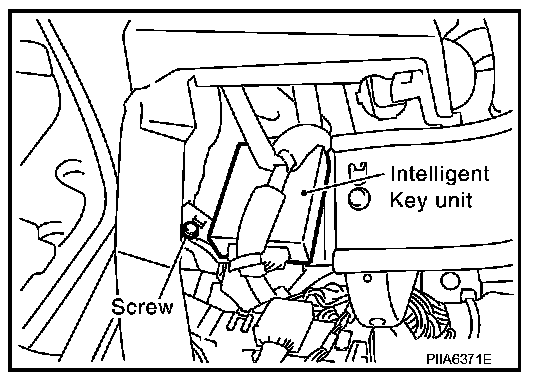

Disconnect the Intelligent Key unit connector, remove the screw and Intelligent Key unit.
INSTALLATIONInstall in the reverse order of removal.
