CONSULT-II Application Items

CONSULT-II APPLICATION ITEMS

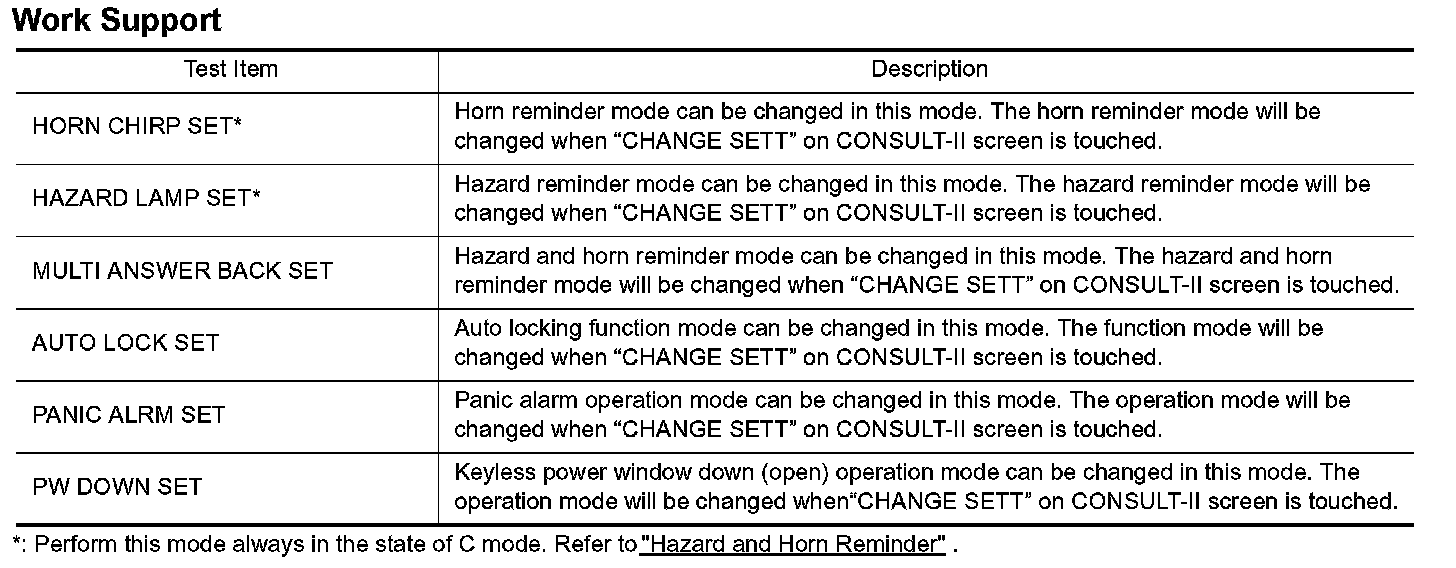

Work Support

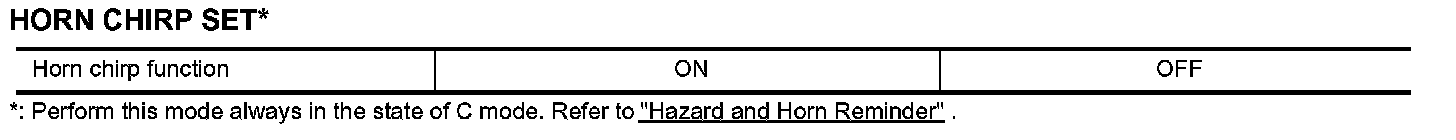

HORN CHIRP SET*
This mode can be changed also on the display.
Refer to "SETTING SCREEN". (without navigation system)
Refer to "Vehicle Electronic Systems". (with navigation system)

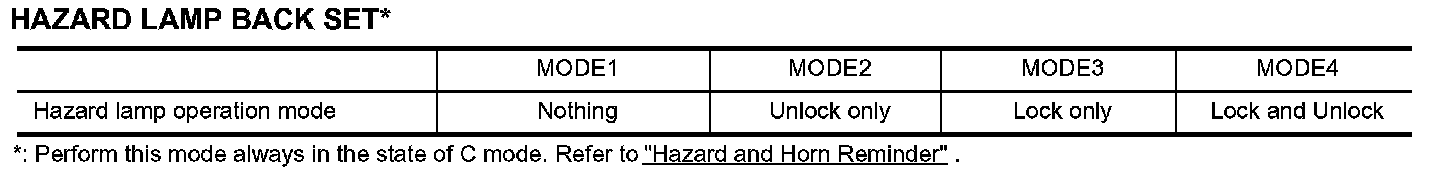

HAZARD LAMP BACK SET*
This mode can be changed also on the display.
Refer to "SETTING SCREEN". (without navigation system)
Refer to "Vehicle Electronic Systems". (with navigation system)

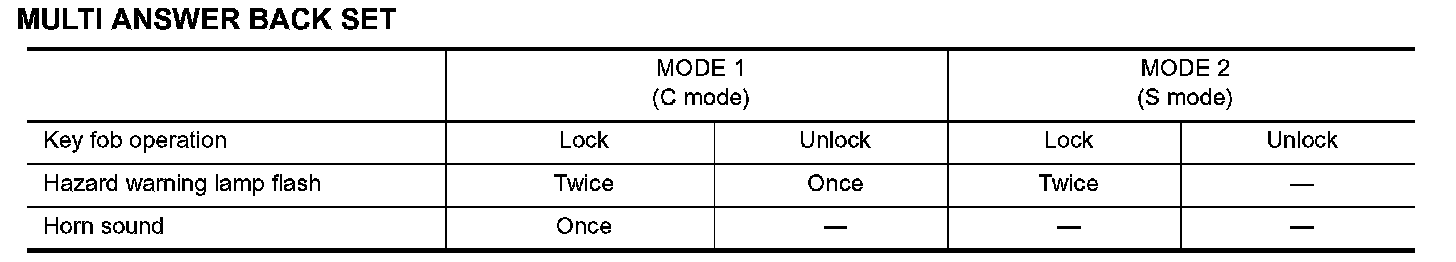

MULTI ANSWER BACK SET

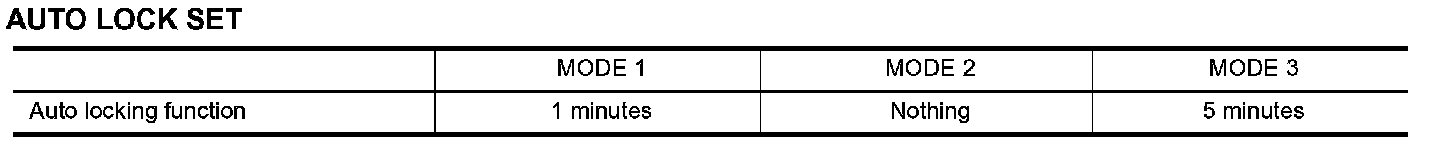

AUTO LOCK SET

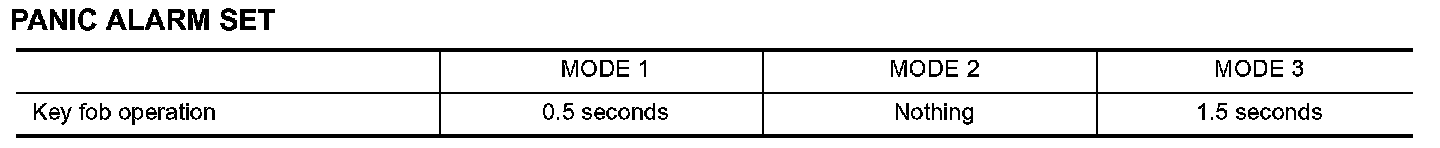

PANIC ALARM SET

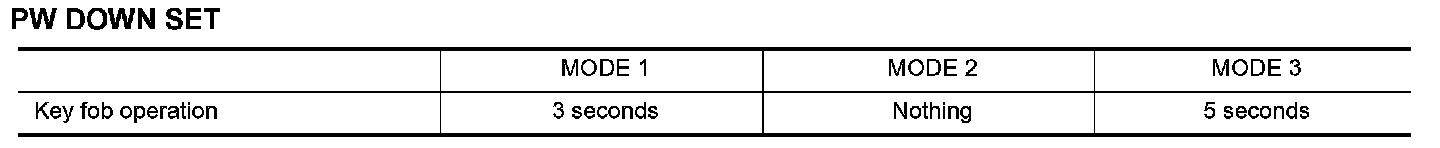

PW DOWN SET

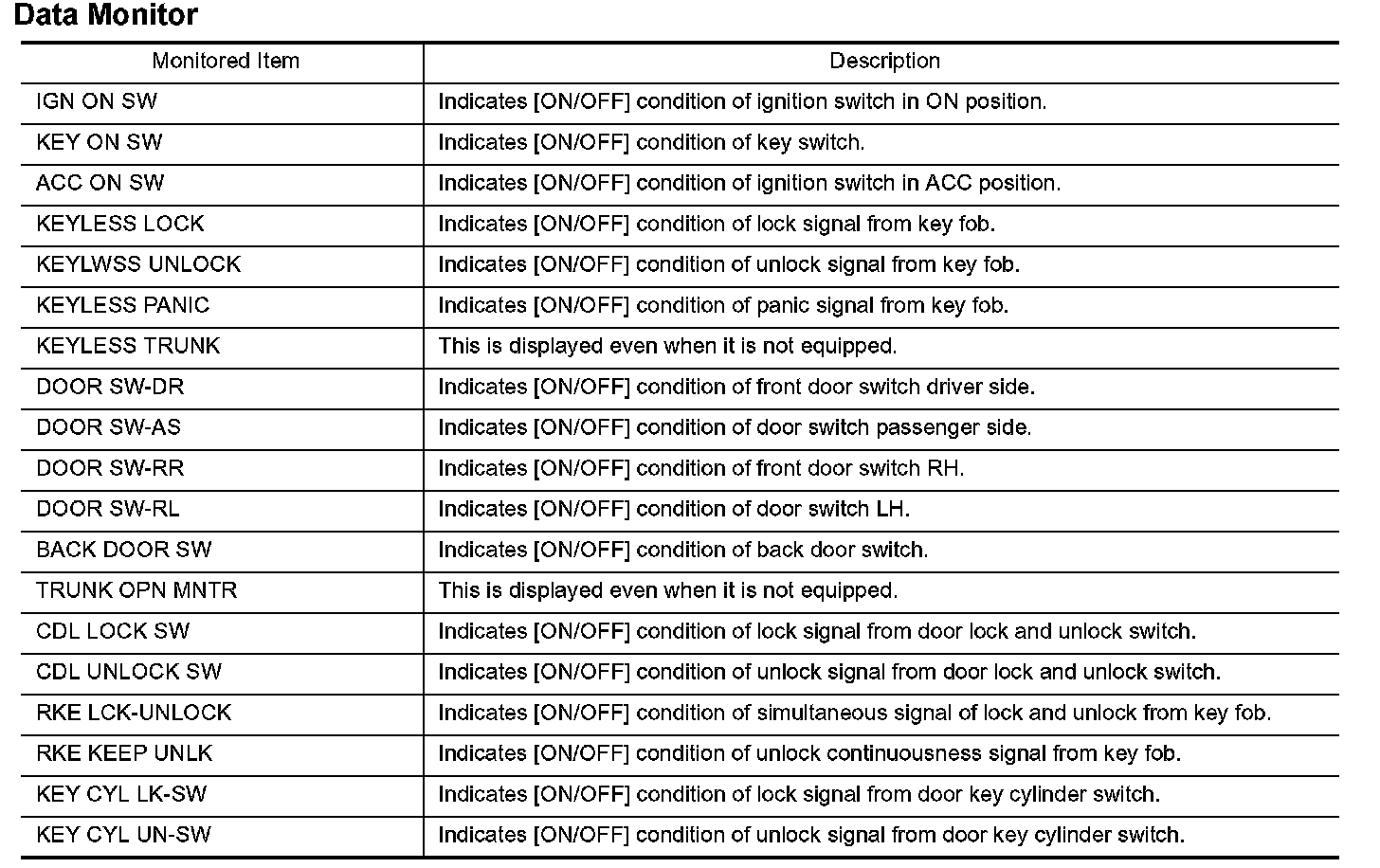

Data Monitor

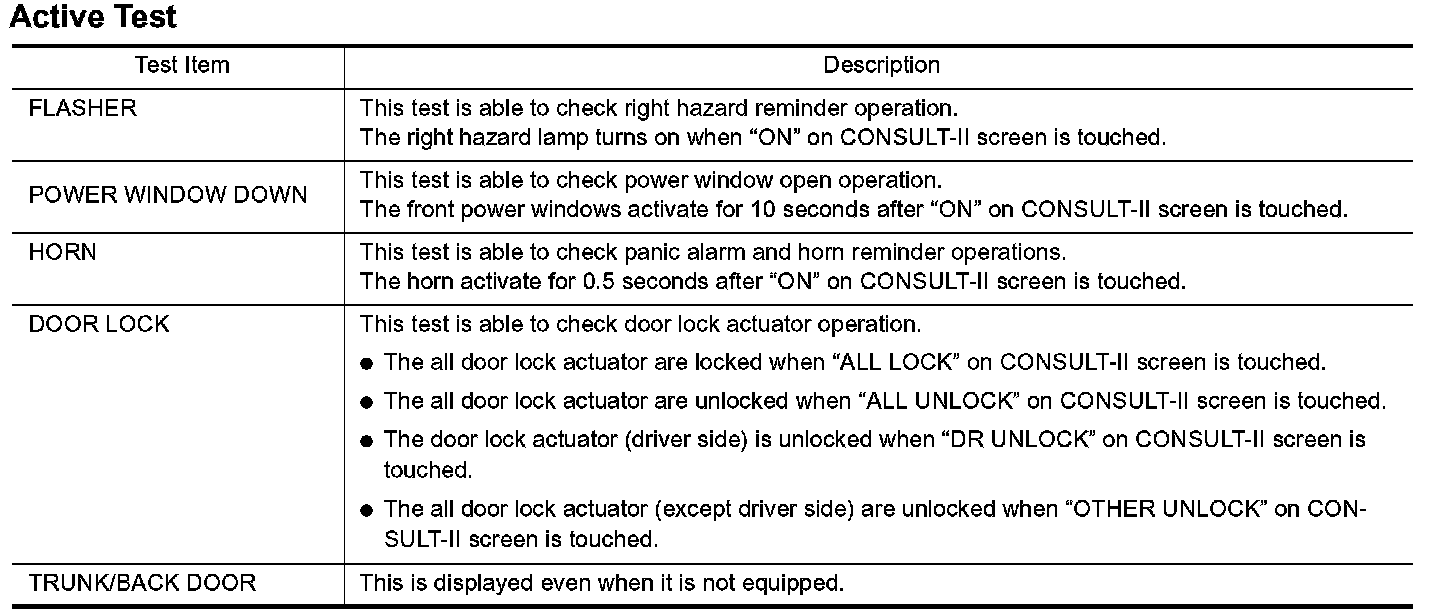

Active Test
