Cruise Control Relay: Testing and Inspection

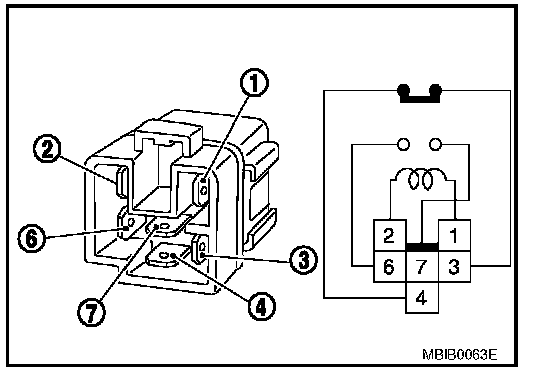

ICC BRAKE HOLD RELAY 1.
Apply
12 V direct current between ICC brake hold relay terminals 1 and 2.
2.

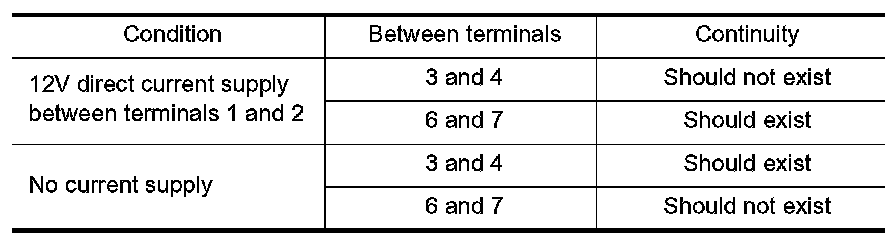

Check continuity between relay terminals 3 and 4, 6 and 7 under the given conditions.
3.
If NG, replace ICC brake hold relay.
