Compressor Clutch: Service and Repair

Removal and Installation of Compressor Clutch

REMOVAL

Overhaul

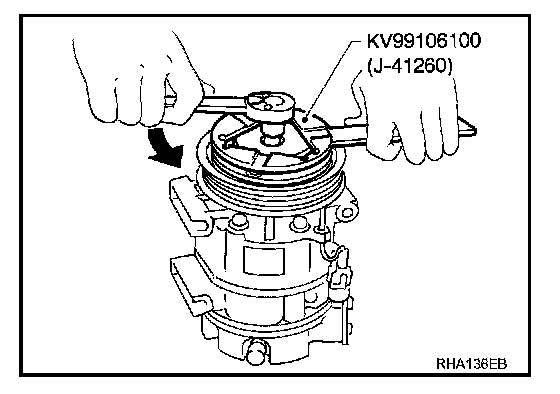

1. When removing center bolt, hold clutch disc with wrench.

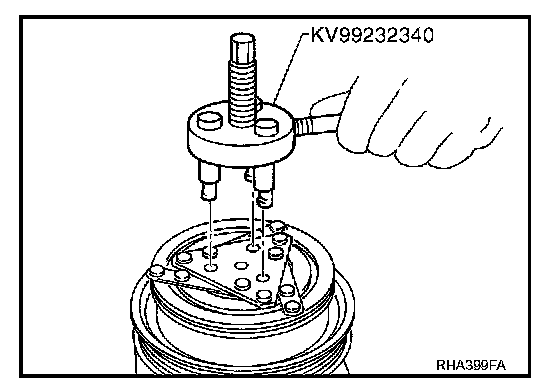

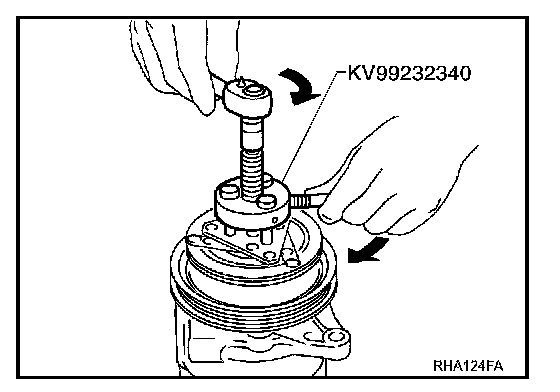

2. Remove the clutch disc using the clutch disc puller.

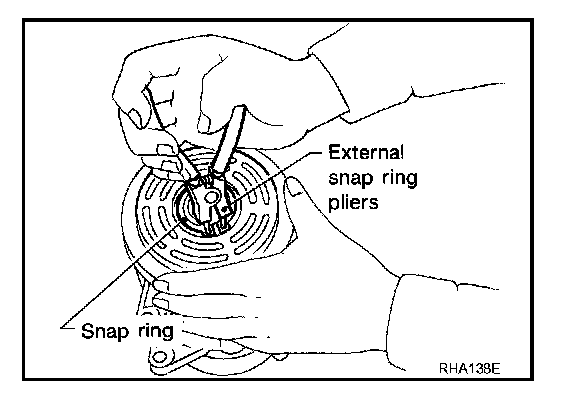

3. Remove the snap ring using external snap ring pliers.




4. Position the center pulley puller on the end of the drive shaft, and remove the pulley assembly using any commercially available pulley puller.

To prevent the pulley groove from being deformed, the puller claws should be positioned into the edge of the pulley assembly.




5. Remove the field coil harness clip using a pair of pliers.

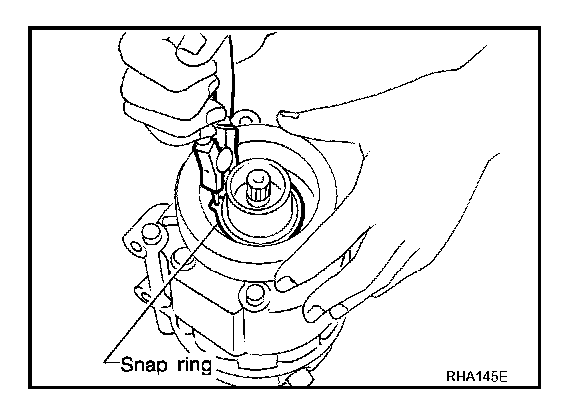

6. Remove the snap ring using external snap ring pliers.

INSTALLATION

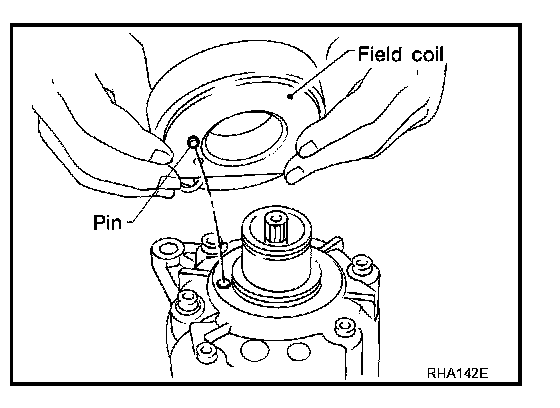

1. Install the field coil.
Be sure to align the coil's pin with the hole in the compressor's front head.
2. Install the field coil harness clip using a screwdriver.

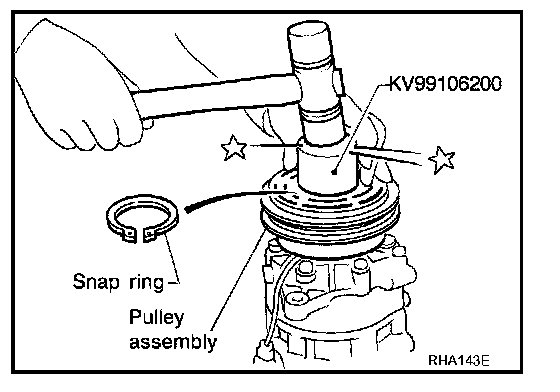

3. Install the pulley assembly using the installer and a hand press, and then install the snap ring using snap ring pliers.

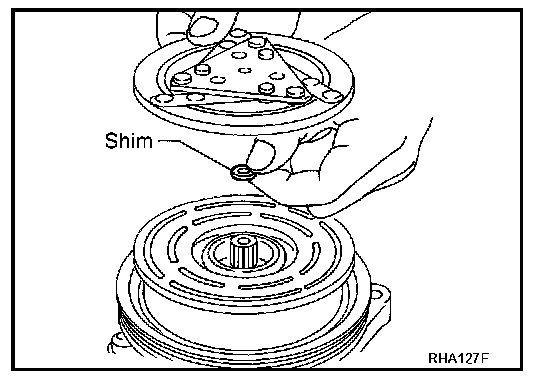

4. Install the clutch disc on the drive shaft, together with the original shim(s). Press the clutch disc down by hand.

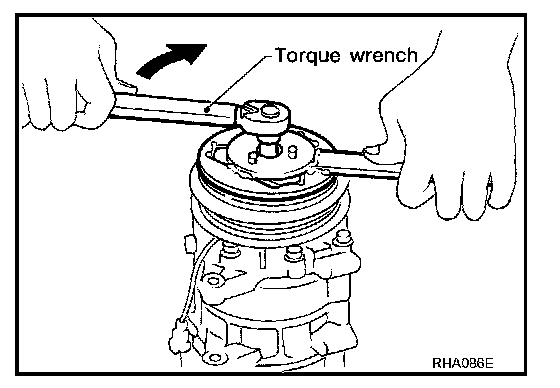

5. Using the holder to prevent clutch disc rotation, tighten the bolt to 14 Nm (1.4 kg-m, 10 ft-lb) torque.

After tightening the bolt, make sure the pulley rotates smoothly.

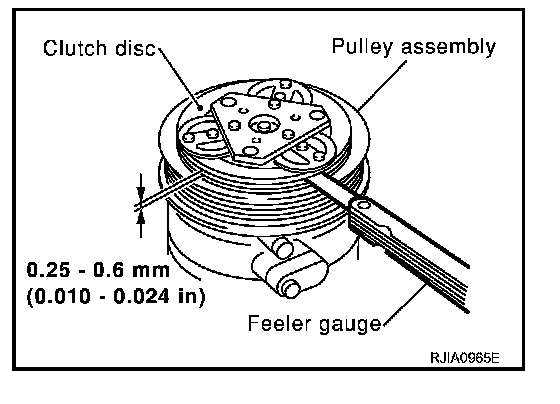

6. Check clearance around the entire periphery of clutch disc.

Disc to pulley clearance : 0.25 - 0.6 mm (0.010 - 0.024 in)

If the specified clearance is not obtained, replace adjusting spacer and readjust.

Break-in Operation
When replacing compressor clutch assembly, always carry out the break-in operation. This is done by engaging and disengaging the clutch about thirty times. Break-in operation raises the level of transmitted torque.
