Display and Amplifier Assembly

AUTO AMP

Removal and Installation of Unified Meter and A/C Amp.

REMOVAL




1. Remove the audio unit. Refer to "Removal and Installation of Audio Unit".

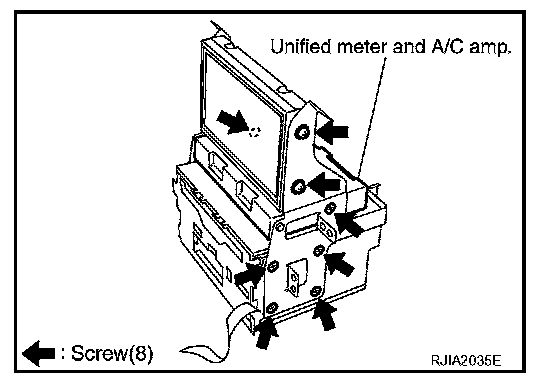

2. Remove the fixing screws, then remove the unified meter and A/ C amp.

INSTALLATION
Installation is basically the reverse order of removal.
