Control Module HVAC: Description and Operation

COMPONENT DESCRIPTION

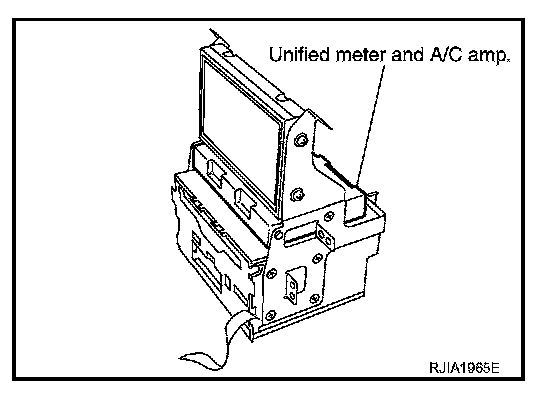

Unified meter and A/C amp. (Automatic Amplifier)
The unified meter and A/C amp. has a built-in microcomputer which processes information sent from various sensors needed for air conditioner operation. The air mix door motor, mode door motor, intake door motor, blower motor and compressor are then controlled.

The unified meter and A/C amp. is unitized with control mechanisms. When the various switches and temperature dials are operated, data is input to the unified meter and A/C amp. from the DISPLAY UNIT/ DISPLAY CONTROL UNIT using CAN communication.

Self-diagnostic functions are also built into unified meter and A/C amp. to provide quick check of malfunctions in the auto air conditioner system.
