Wheel Alignment Inspection

DESCRIPTION
^ Measure wheel alignment under unladen conditions.

NOTE: Unladen conditions mean that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and mats are designated positions.

PRELIMINARY CHECK
1. Check tires for improper air pressure and wear.
2. Check road wheels for runout.
3. Check wheel bearing axial end play.
4. Check transverse link ball joint axial end play.
5. Check strut operation.
6. Check each mounting part of axle and suspension for looseness and deformation.
7. Check each link, rod and member for cracks, deformation and other damage.
8. Check vehicle posture.

INSPECTION OF CAMBER, CASTER AND KINGPIN INCLINATION ANGLES
^ Camber, caster, kingpin inclination angles cannot be adjusted.
^ Before inspection, mount front wheels onto turning radius gauge. Mount rear wheels onto a stand that has same height so vehicle will remain horizontal.

Using a CCK Gauge

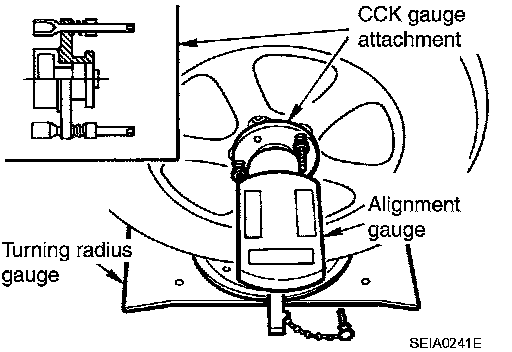

Install CCK gauge attachment (SST: KV991040SO) as following procedure in wheel, then measure wheel alignment.





1. Remove wheel nuts (3), and install a guide bolt to hub bolt.
2. Screw adapter into plate body until it contacts body tightly.
3. Screw center plate into plate.

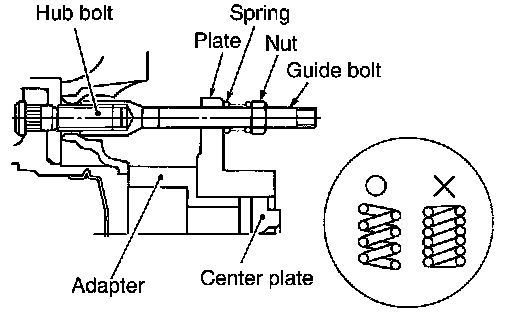

4. Insert plate on guide bolt. Put spring in, and then evenly screw both guide bolt nut. When fastening guide bolt nut, do not completely compress spring.





5. Place the dent of alignment gauge onto the projection of center plate and tightly contact them to measure.
Camber, caster, kingpin inclination angles: Refer to Specifications Specifications.

CAUTION:
^ If camber, caster, or kingpin inclination angle is outside the standard, check front suspension parts for wear and damage, and replace suspect parts if necessary.
^ King pin inclination angle is reference value, no inspection is required.

Toe-In Inspection
Measure toe-in using the following procedure.

WARNING:
^ Always perform the following procedure on a flat surface.
^ Make sure that no person is in front of vehicle before pushing it.





1. Bounce front of vehicle up and down to stabilize the posture.
2. Push vehicle straight ahead about 5 meters (16 ft.).

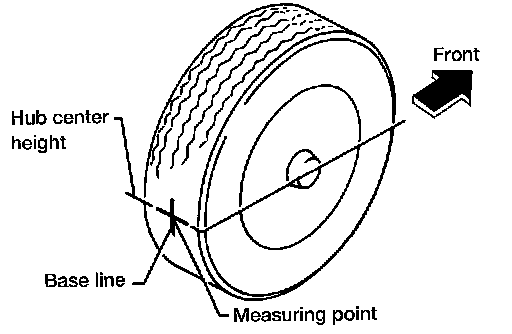

3. Put a mark on base line of the tread (rear side) of both tires at the same height of hub center. These are measuring points.

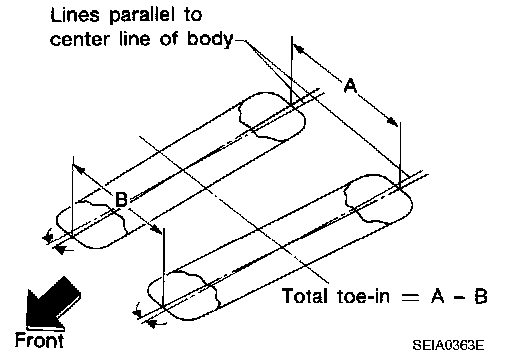

4. Measure distance "A" (rear side).
5. Push vehicle slowly ahead to rotate wheels 180 degrees (1/2 turn).
If wheels have rotated more than 180 degrees (1/2 turn), try the above procedure again from the beginning. Never push vehicle backward.
6. Measure distance "B" (front side).
Total toe-in: Refer to Specifications Specifications.
