Fuel Level Sensor: Testing and Inspection
Electrical Components InspectionCHECK FUEL LEVEL SENSOR UNITFor removal, refer to "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY".

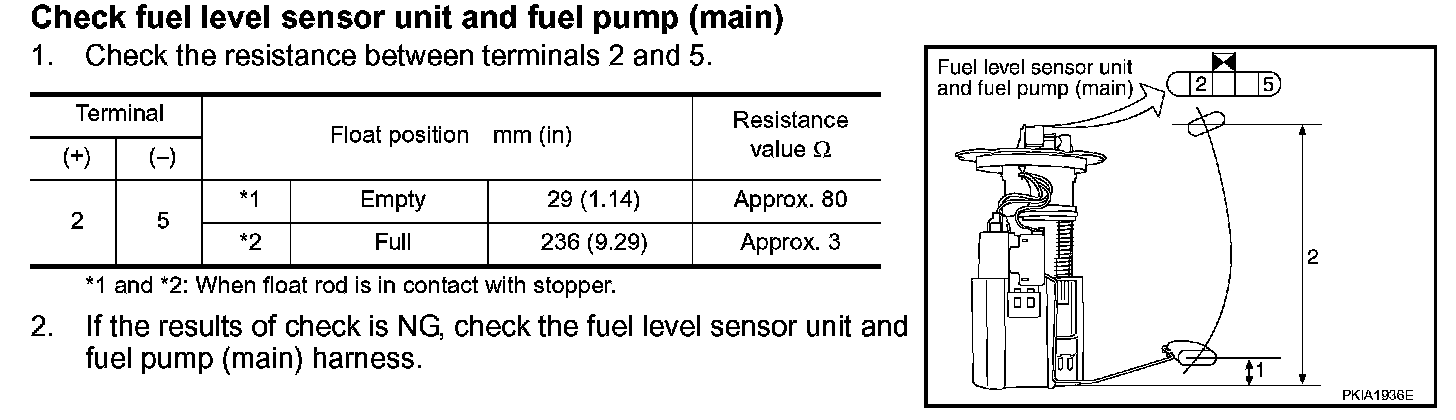

Fuel PumpCheck fuel level sensor unit and fuel pump (main)
Check fuel level sensor unit and pump (main) harness

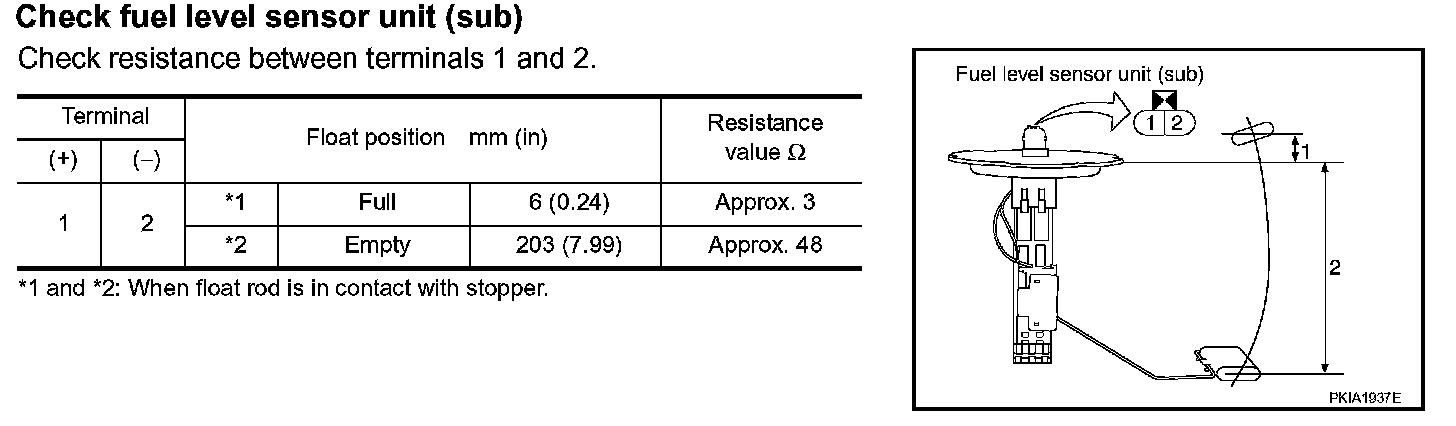

Check fuel level sensor unit (sub)
