Power Supply Testing

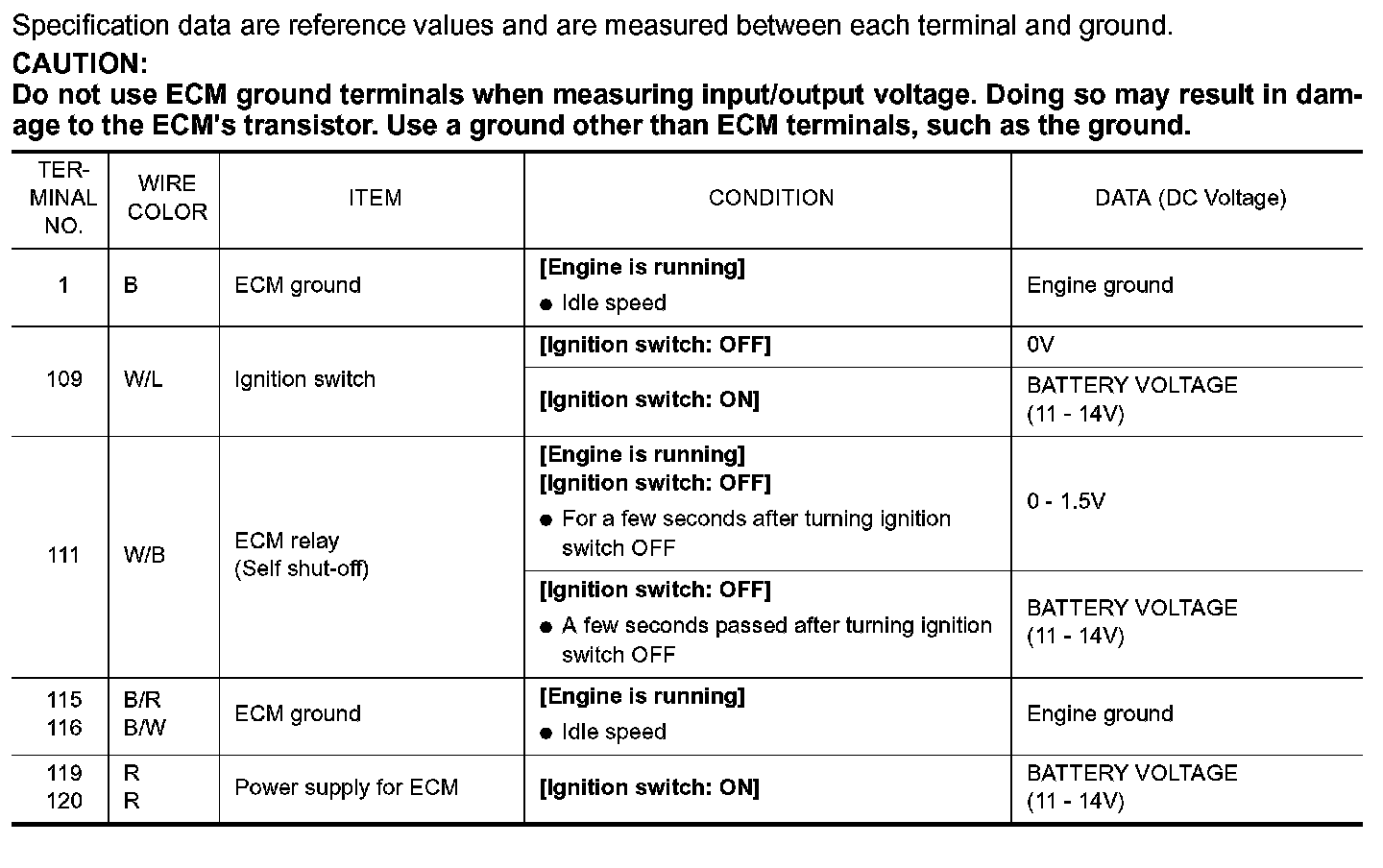

POWER SUPPLY CIRCUIT FOR ECM

EC-MAIN-01:

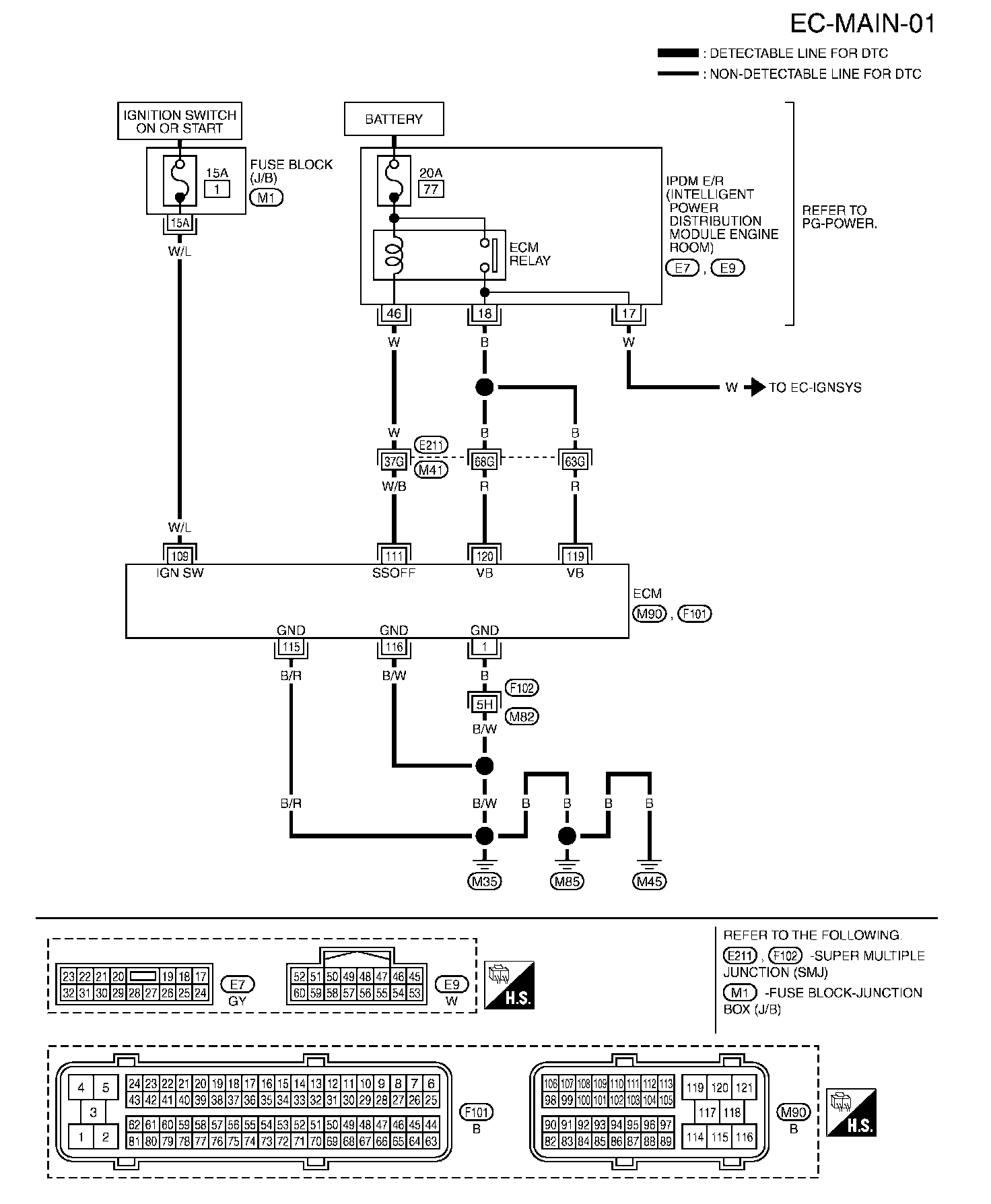

Wiring Diagram

Diagnostic Procedure (Steps 1 - 2):

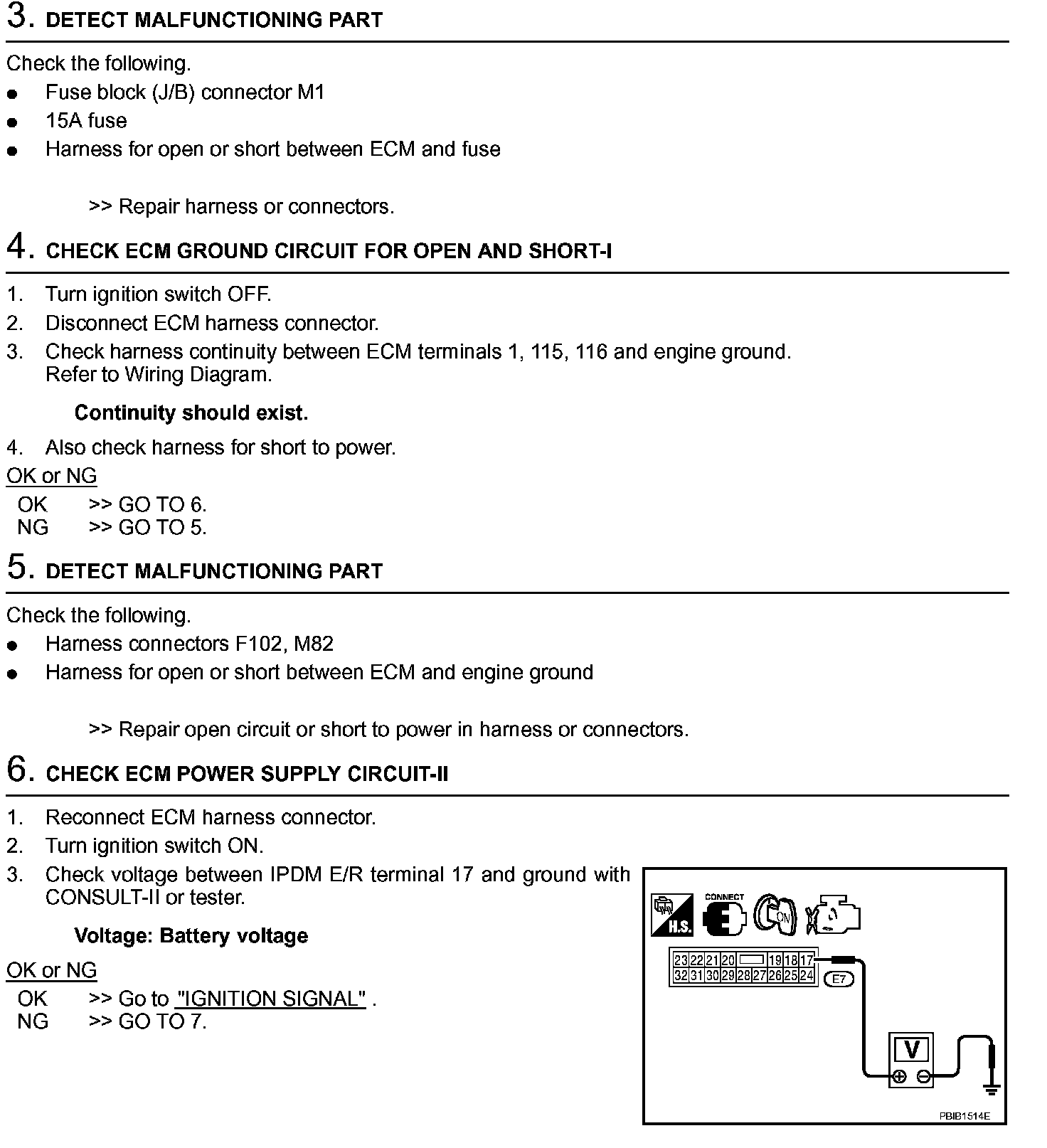

Diagnostic Procedure (Steps 3 - 6):

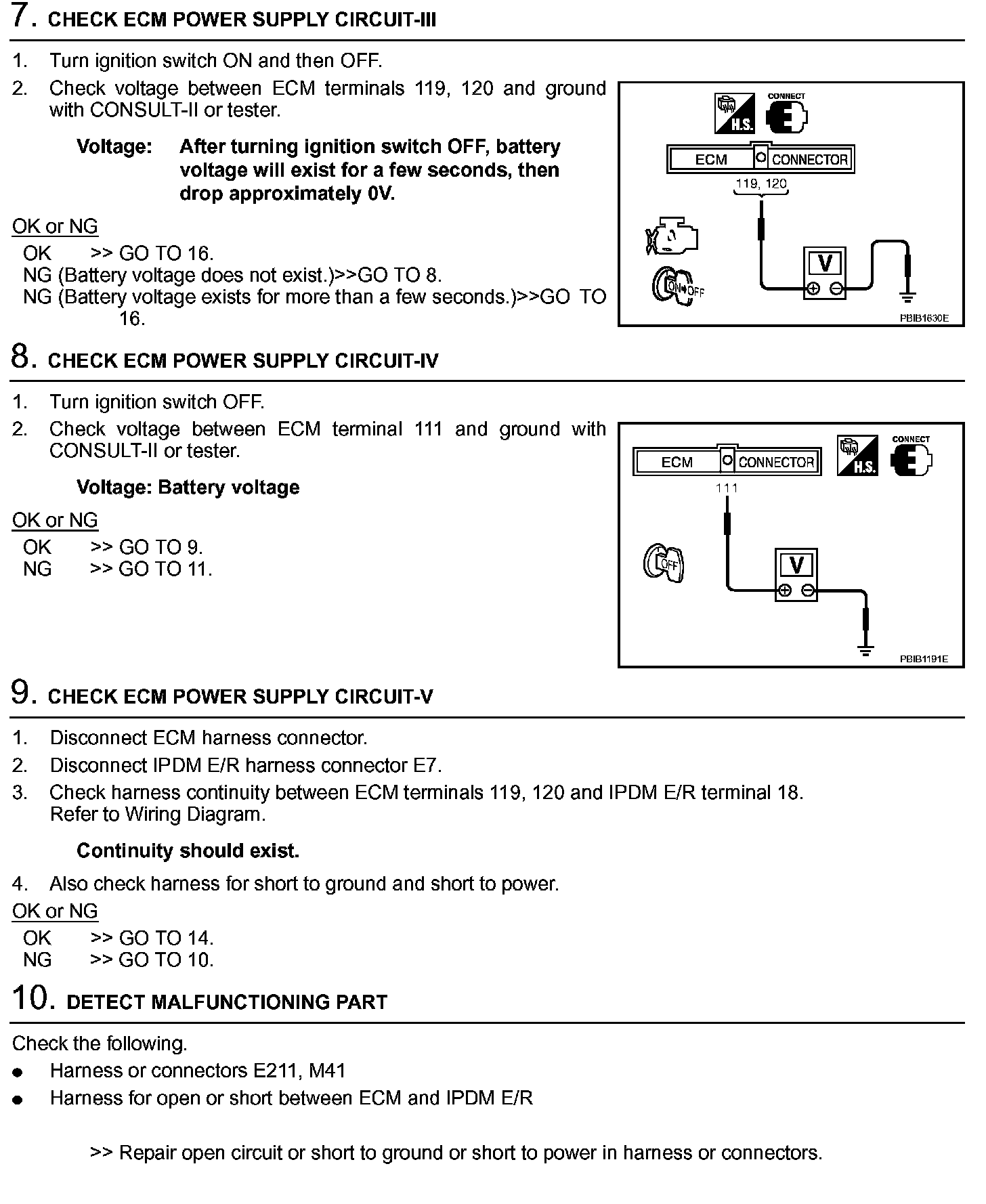

Diagnostic Procedure (Steps 7 - 10):

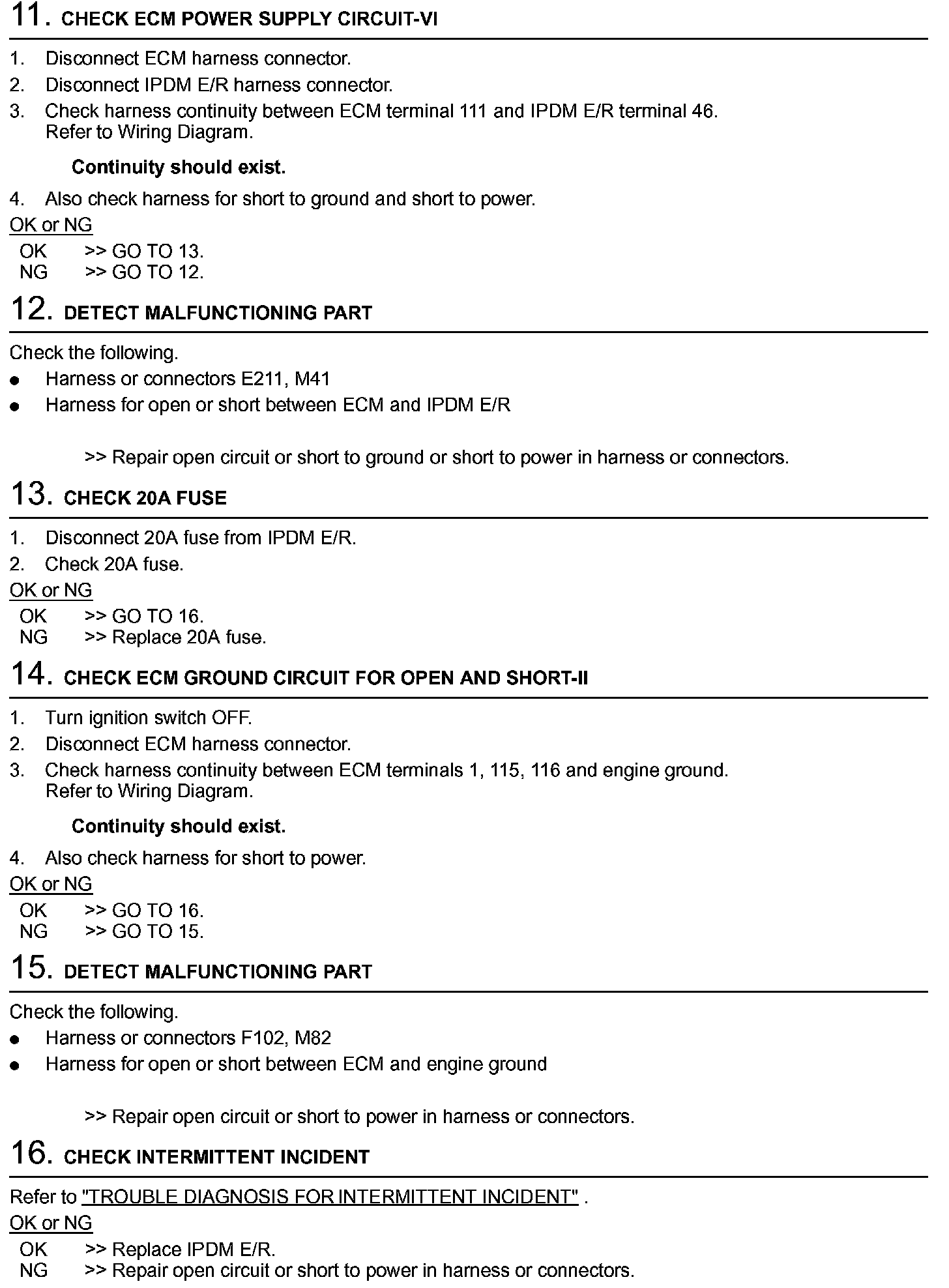

Diagnostic Procedure (Steps 11 - 16):

Diagnostic Procedure
