Radiator Cooling Fan Control Module: Description and Operation

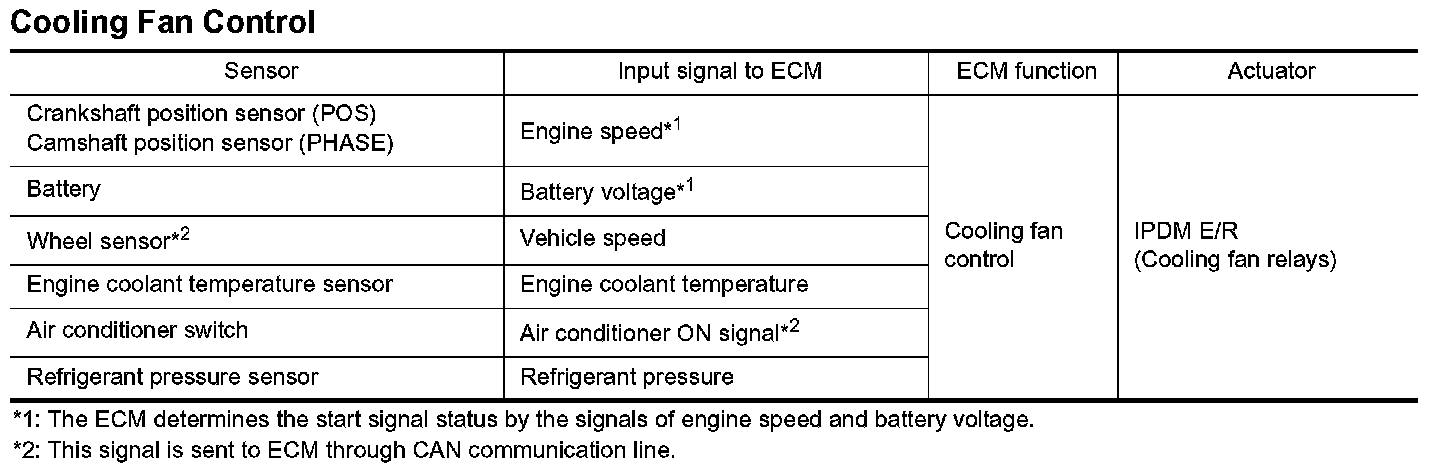

Cooling Fan Control

Cooling Fan Control:




The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 2-step control [HIGH/OFF].

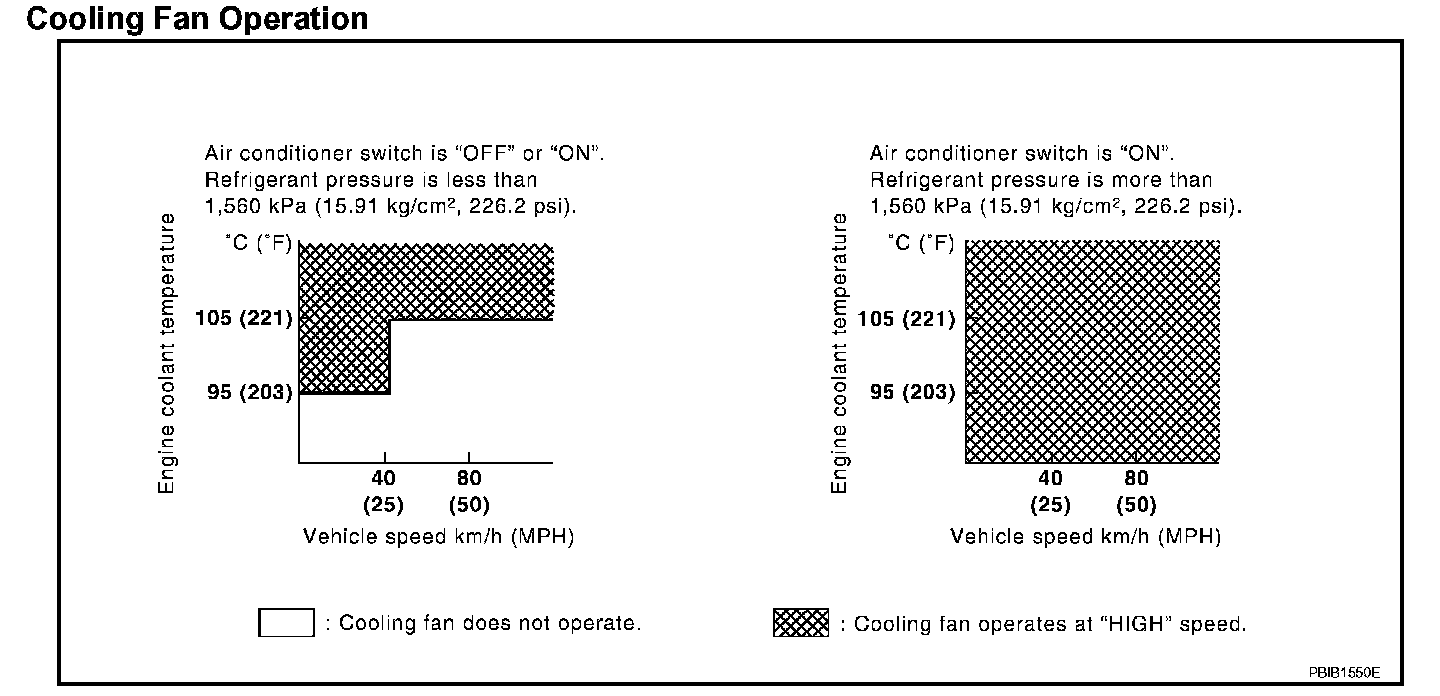

Cooling Fan Operation:




Cooling Fan Operation

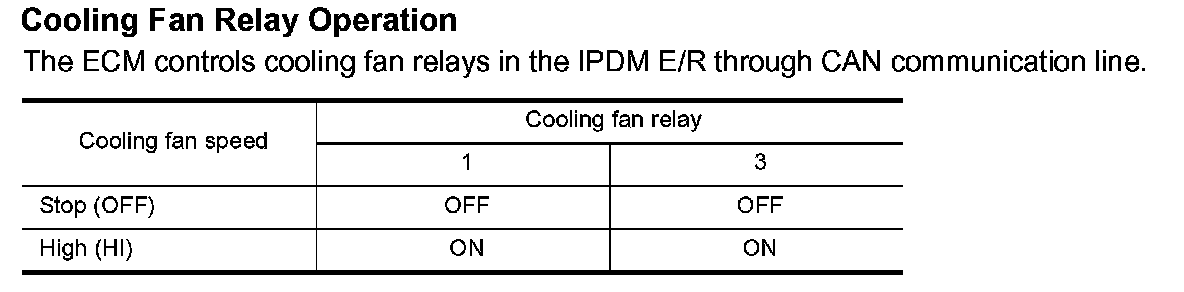

Cooling Fan Relay Operation:




Cooling Fan Relay Operation

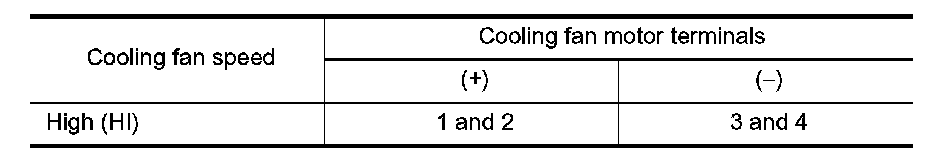

COMPONENT DESCRIPTION




The cooling fan at each speed when the current flows in the cooling fan motor as follows.
