Body Control Module: Service and Repair

Removal and Installation of BCM

REMOVAL

1. Remove the dash side finisher (LH).
2. Disconnect BCM connector.

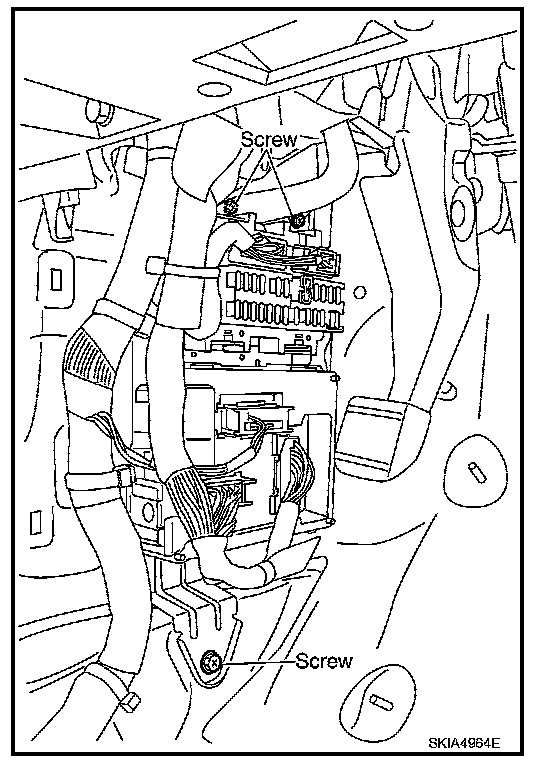

3. Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

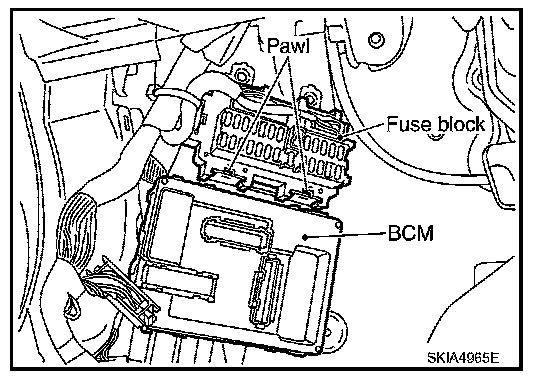

4. Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

INSTALLATION
Install in the reverse order of removal.

NOTE: When replacing BCM perform initialization of NATS system and registration of all NATS ignition key IDs.
