System Specifications

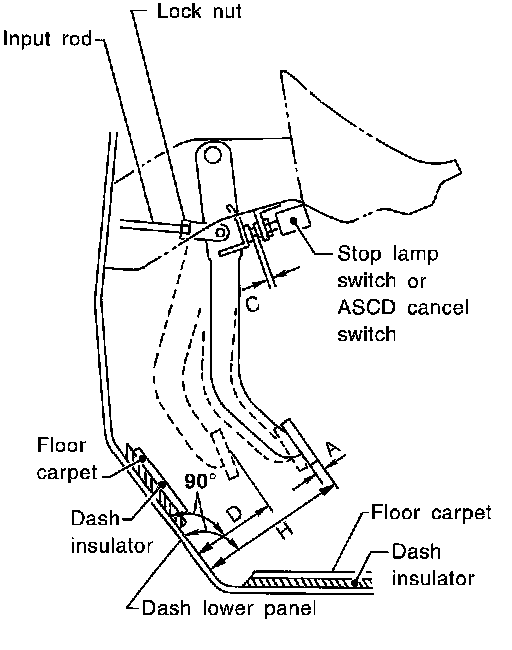

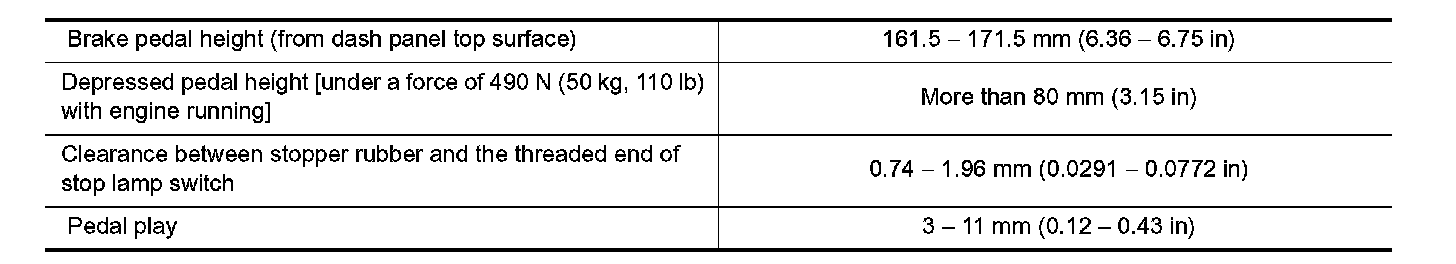

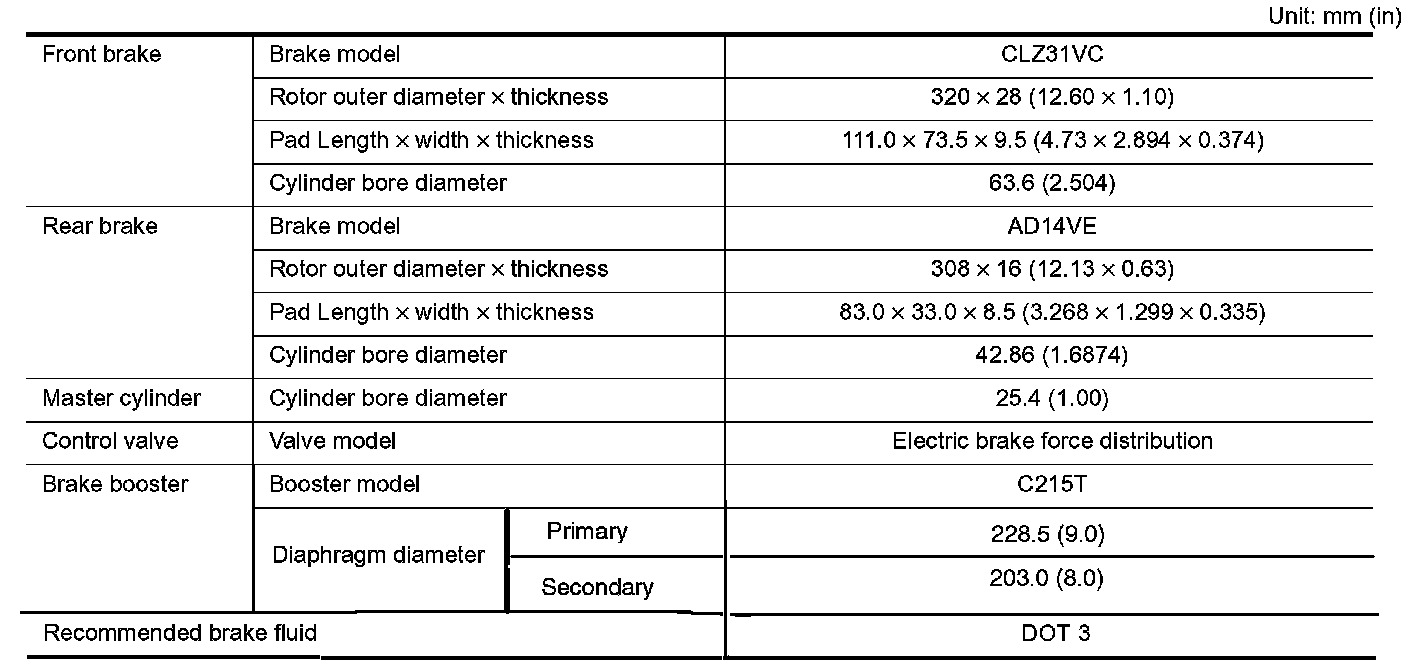

General Specifications Brake Pedal Brake Booster Vacuum type Check Valve Front Disc Brake Disc Rotor
Brake Model
CLZ31VC
Standard thickness (new)
28.0 mm (1.02 in)
Repair limit thickness
26.0 mm (1.024 in)
Maximum uneven wear (at 8 positions)
0.015 mm (0.0006 in)
Runout limit (attached to vehicle)
0.04 mm (0.0016 in)

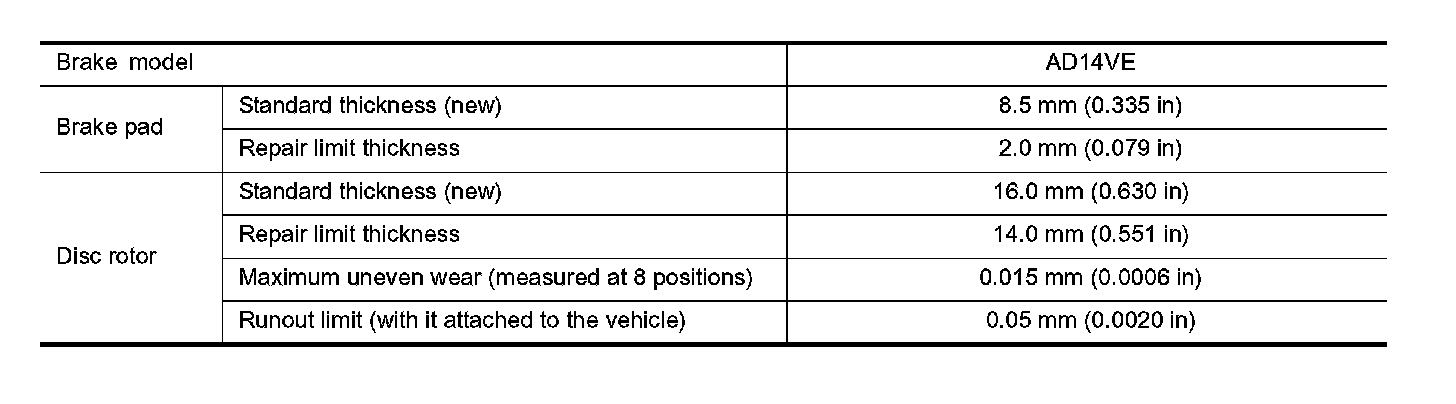

Rear Disc Brake
