Removal and Installation of NAVI Control Unit

1. Remove center box assy. Refer to "INSTRUMENT PANEL ASSEMBLY"

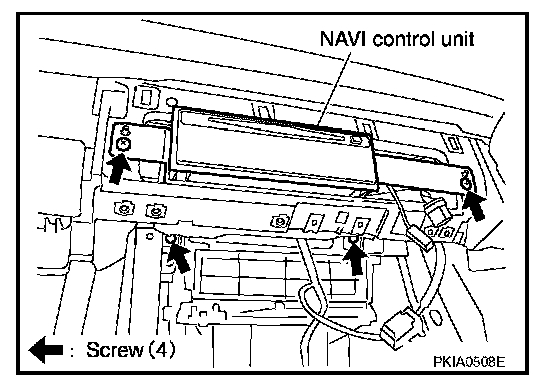

2. Remove screws (4), and remove NAVI control unit.

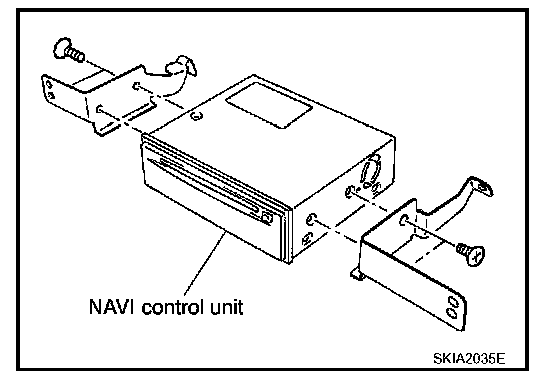

3. Remove screws (4), and remove bracket.
