Camshaft Position Sensor: Testing and Inspection
Component Inspection CAMSHAFT POSITION SENSOR (PHASE)
1.
Loosen the fixing bolt of the sensor.
2.
Disconnect
camshaft position sensor (PHASE) harness connector.
3.
Remove the sensor.
4.

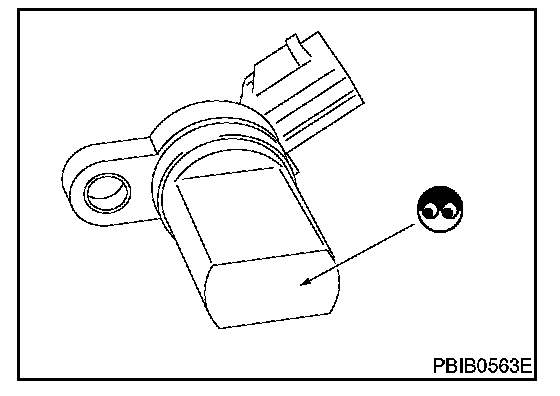

Visually check the sensor for chipping.
5.

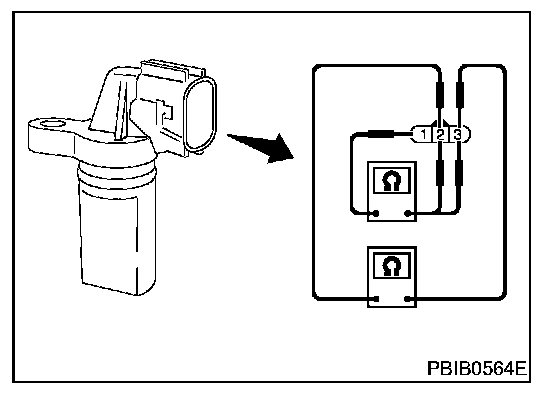

Check resistance as shown in the figure.
