CAN Communication Circuit Check

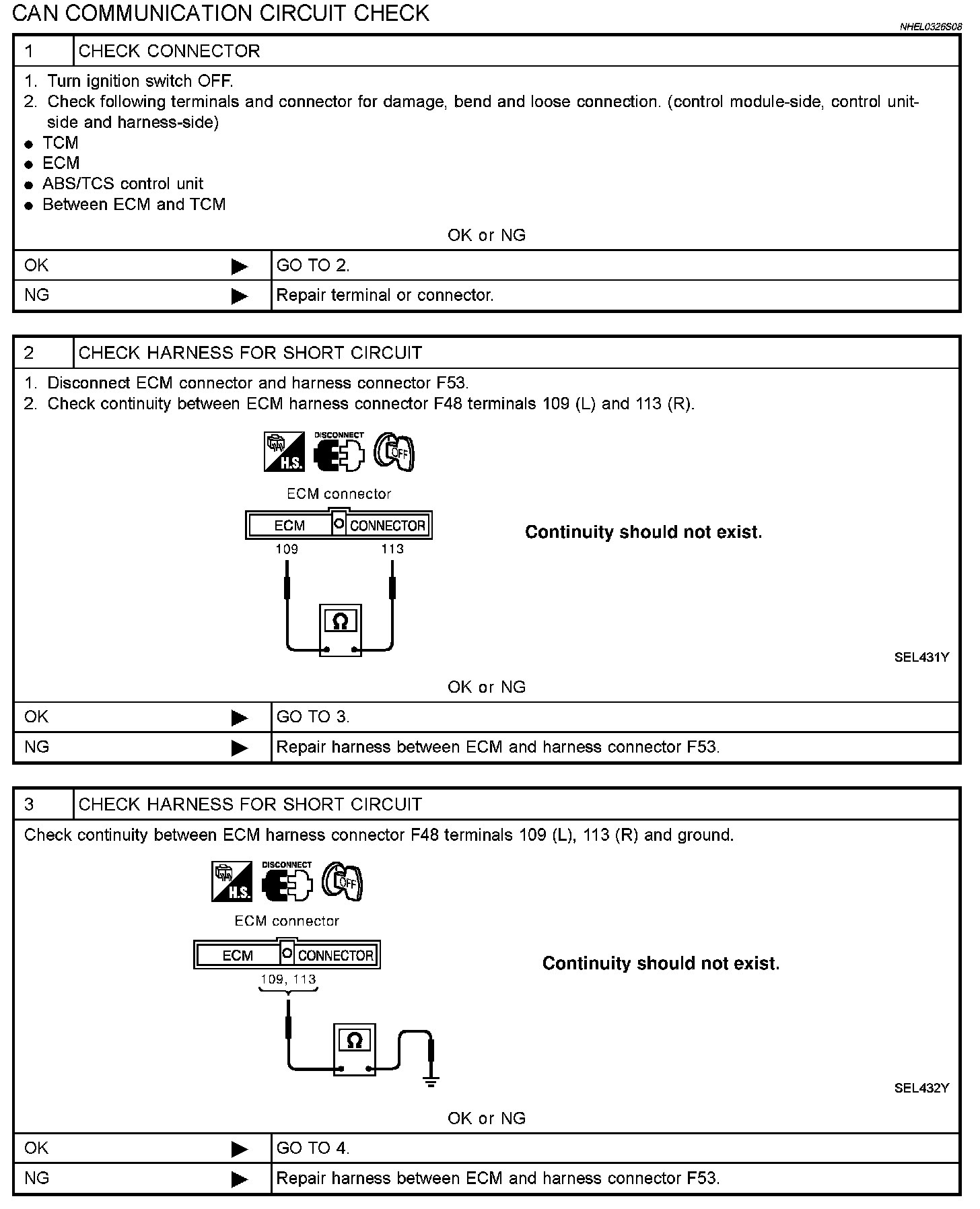

CAN Communication Circuit Check (Steps 1 - 3):

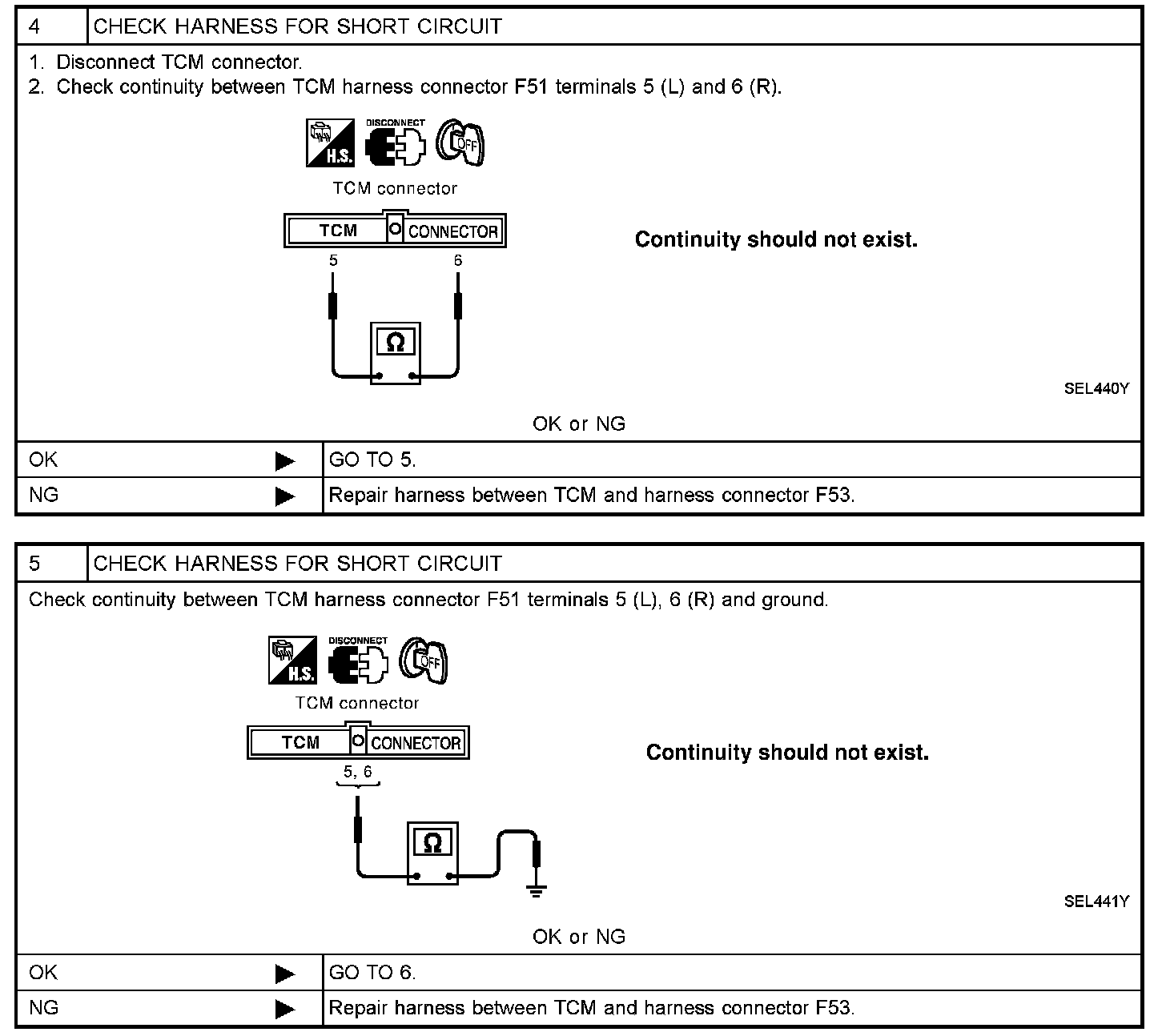

CAN Communication Circuit Check (Steps 4 - 5):

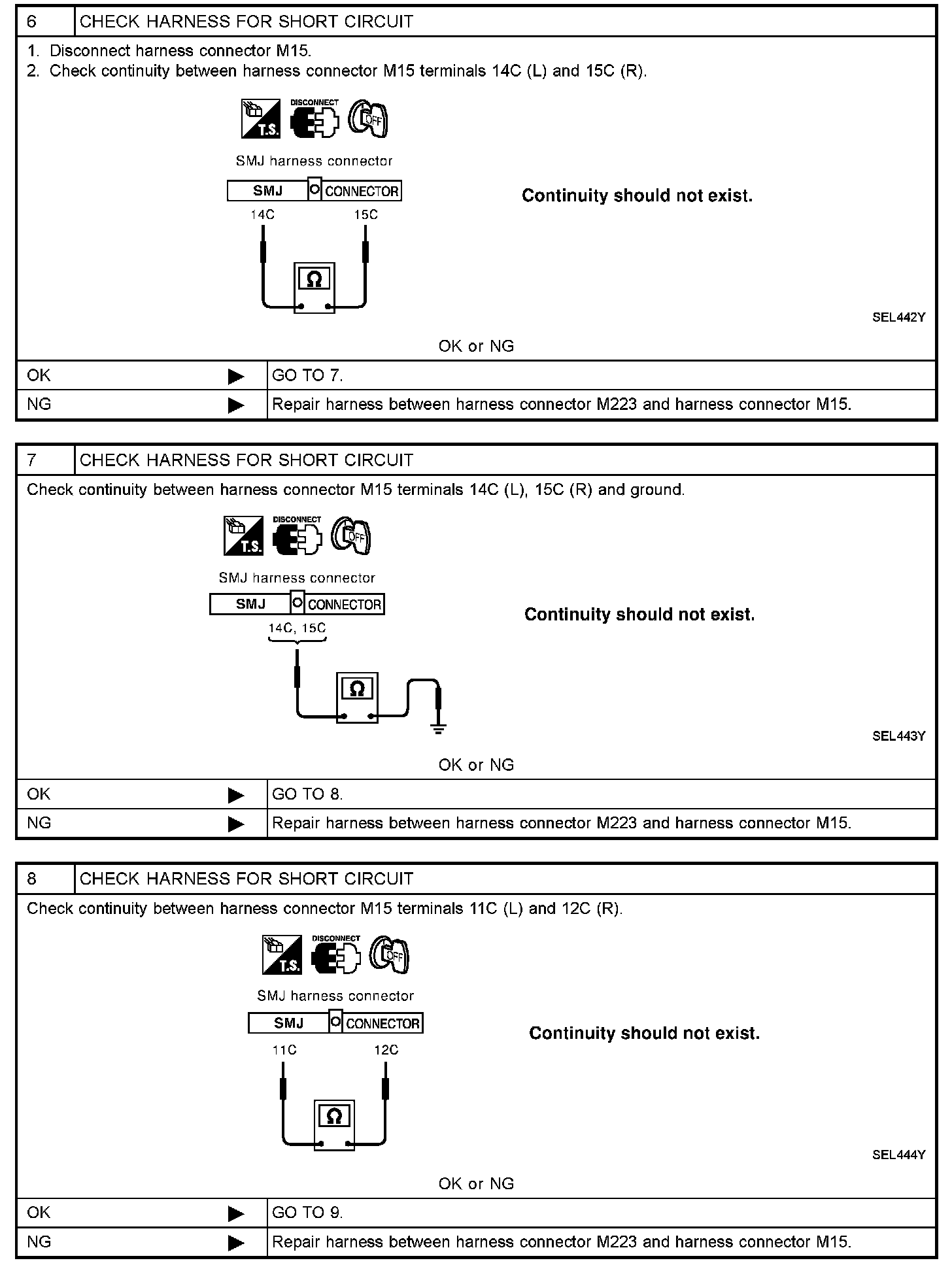

CAN Communication Circuit Check (Steps 6 - 8):

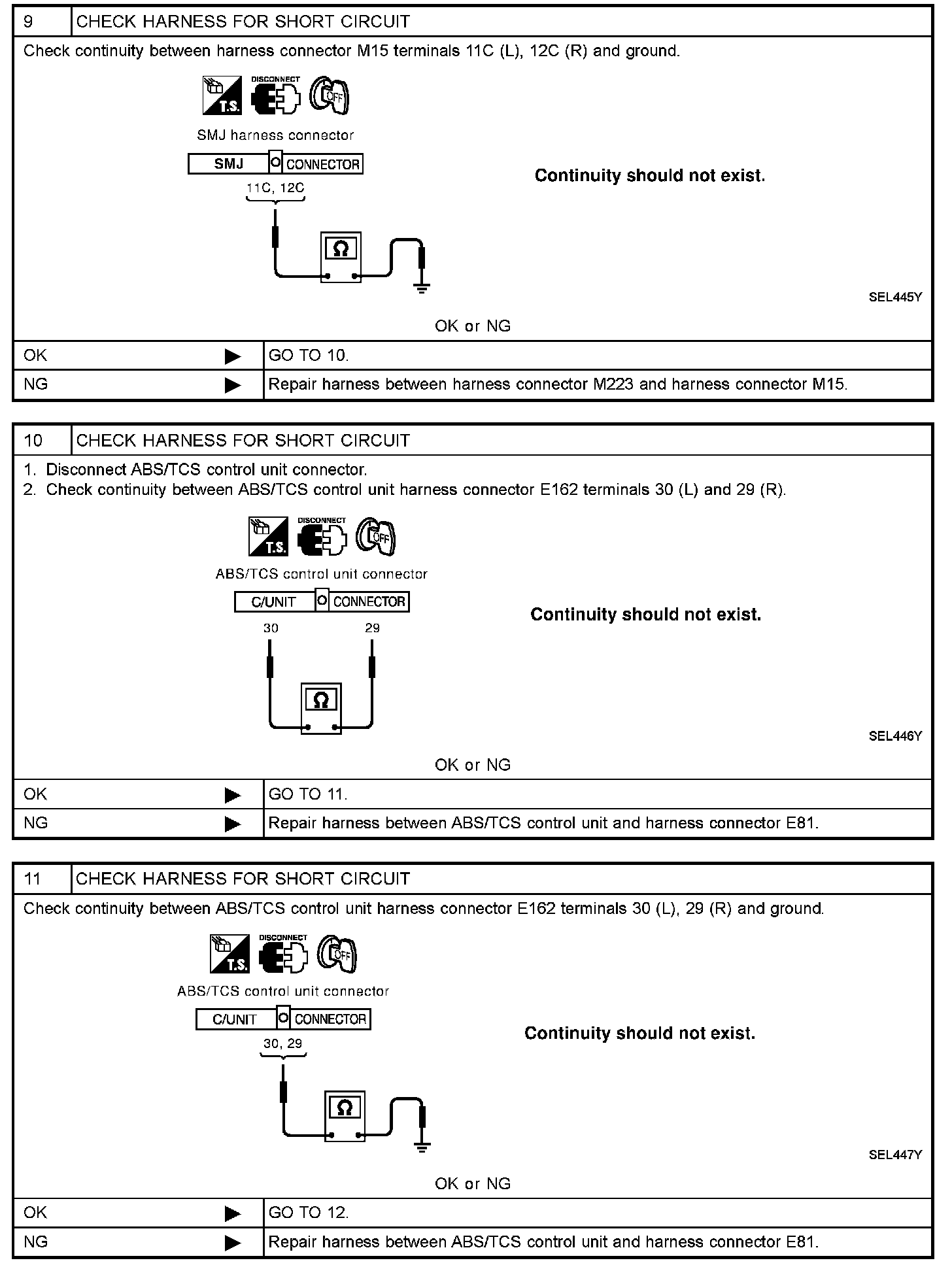

CAN Communication Circuit Check (Steps 9 - 11):

CAN Communication Circuit Check (Step 12):
