Home >> Infiniti >> 2004 >> I35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> CAN System (For TCS Models) >> Circuit Checks >> ECM Circuit Check

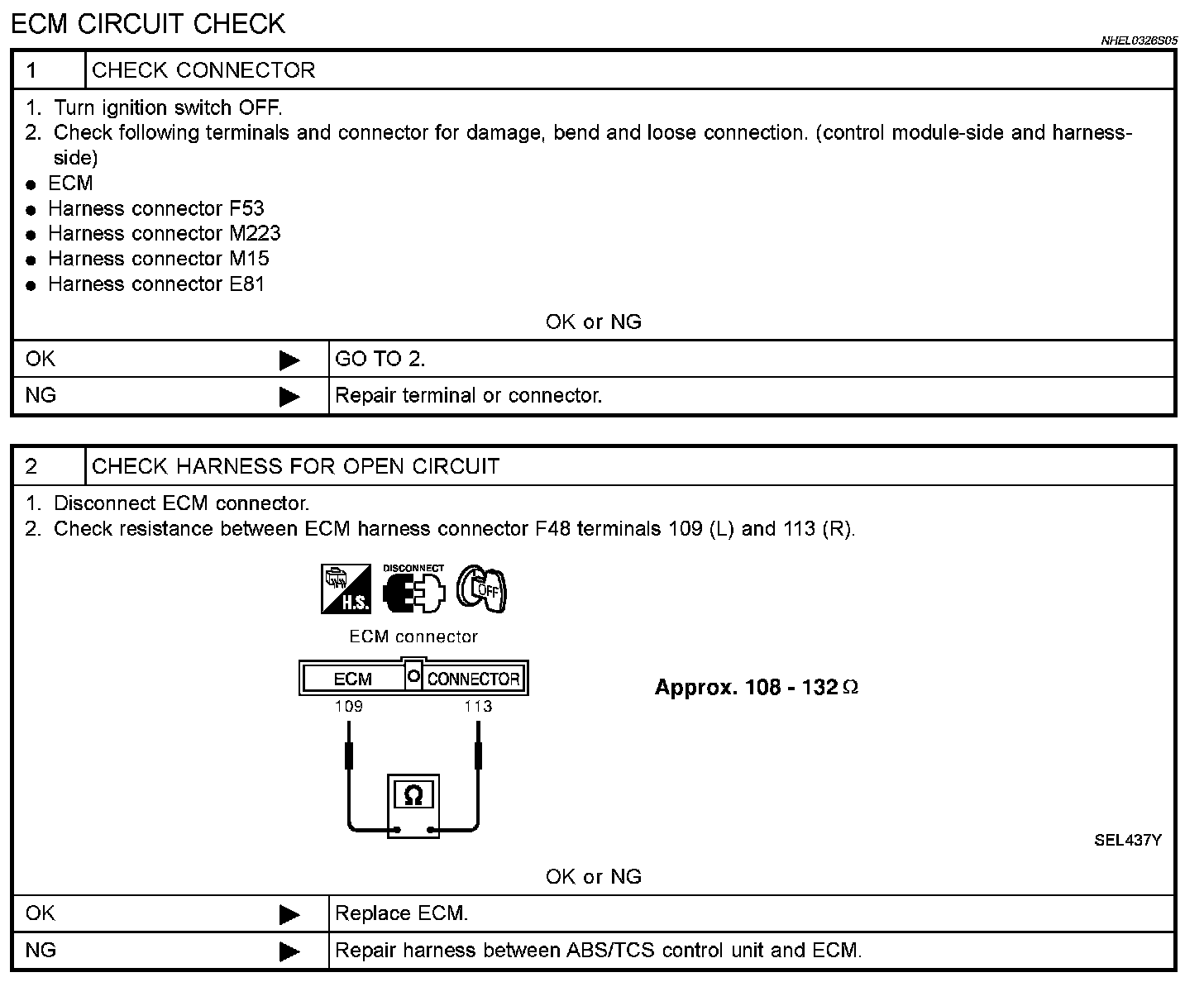

ECM Circuit Check

ECM Circuit Check (Steps 1 - 2):
