Circuit Check Between VDC/TCS/ABS Unit & Steering Angle Sensor

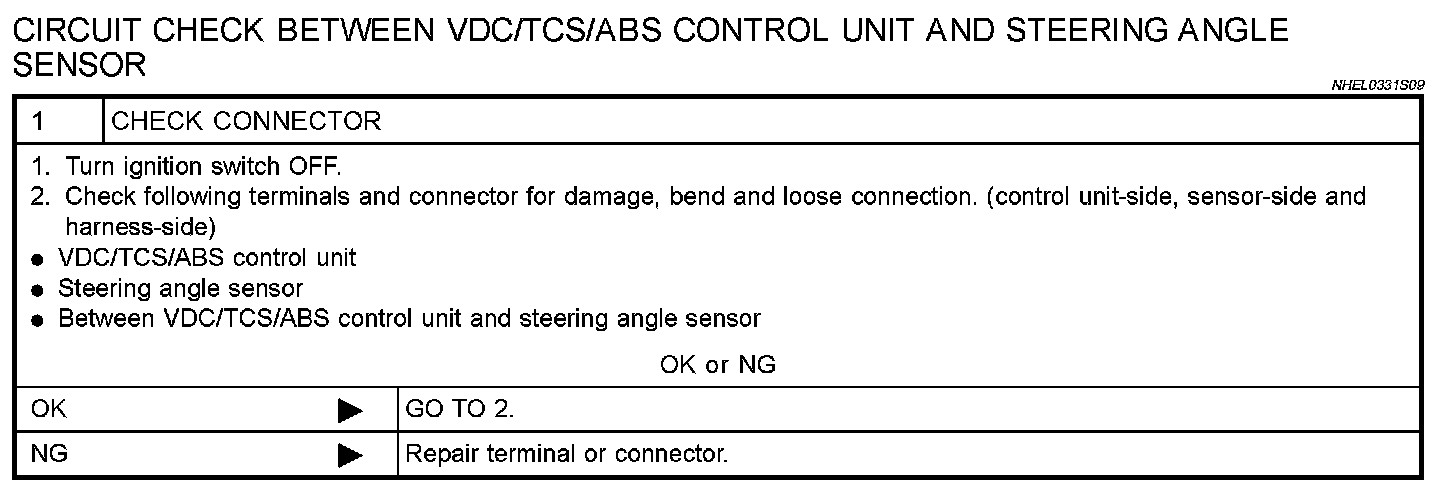

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Angle Sensor (Step 1):

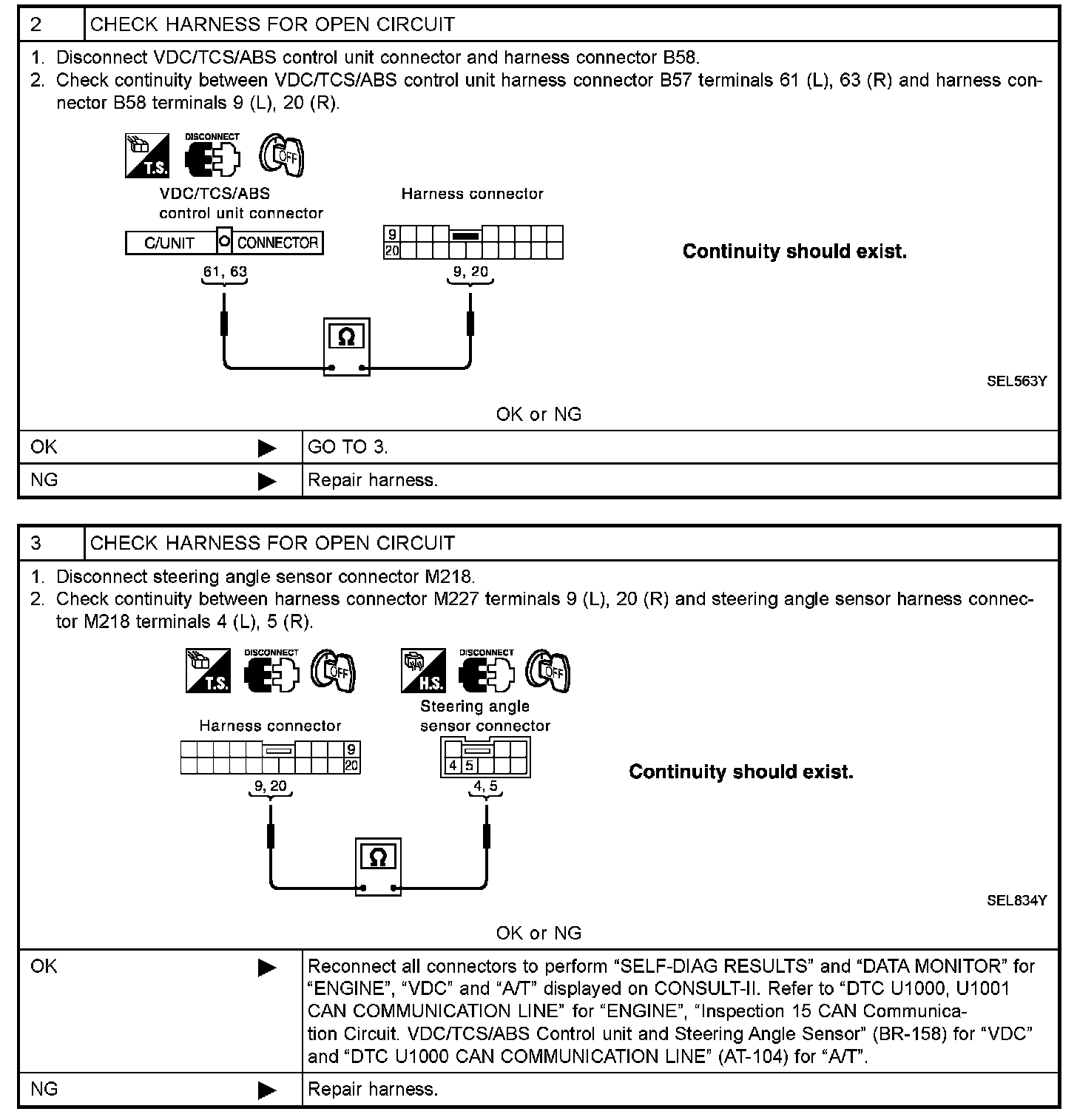

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Angle Sensor (Steps 2 - 3):
