Ignition System: Testing and Inspection

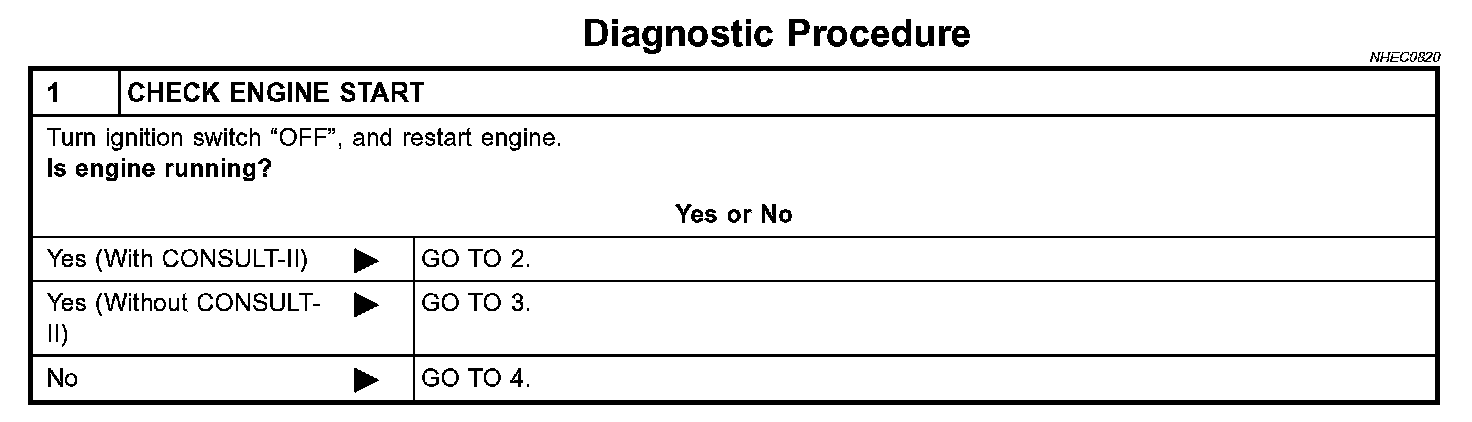

Diagnostic Procedure (Step 1):

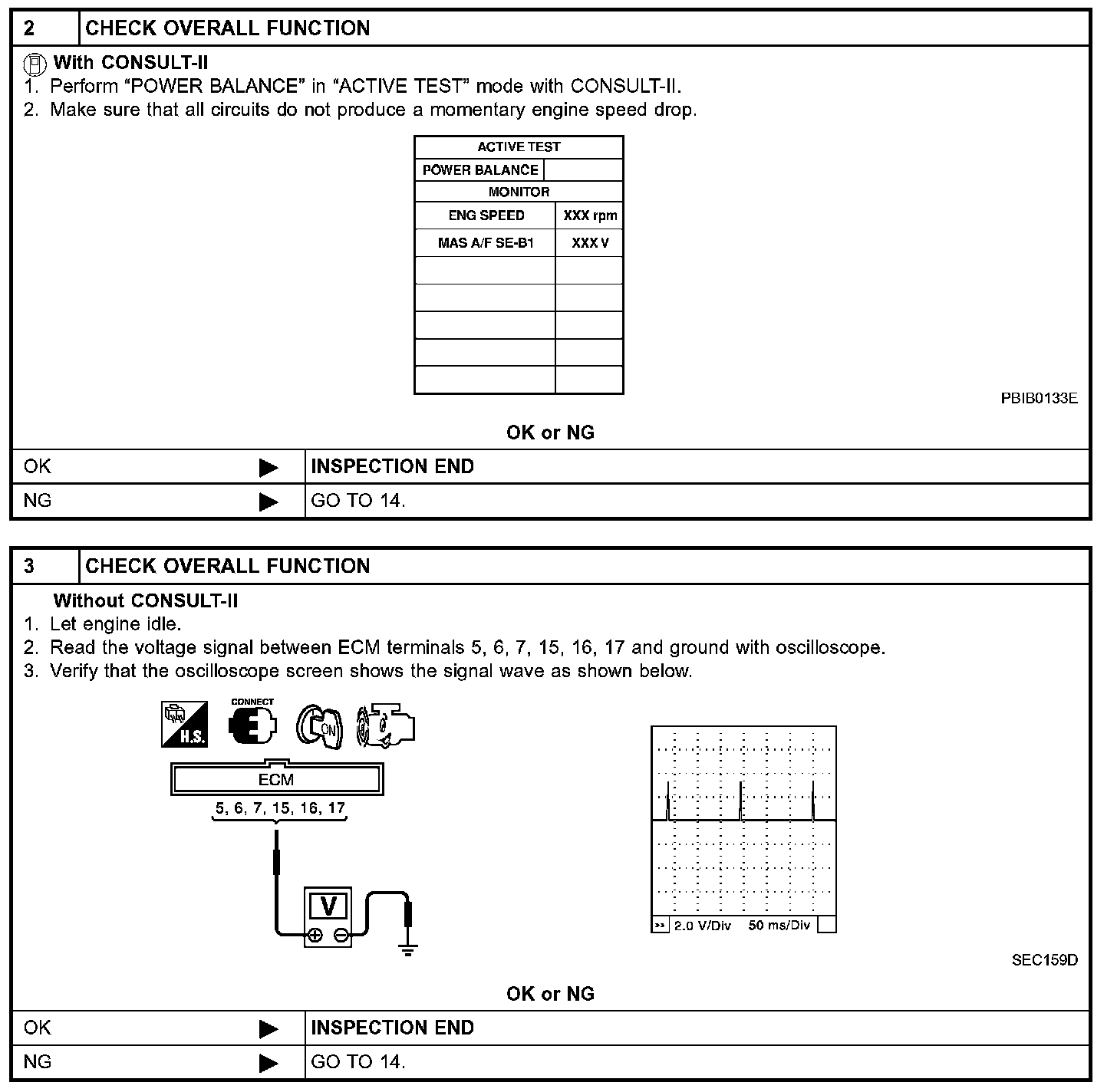

Diagnostic Procedure (Steps 2 - 3):

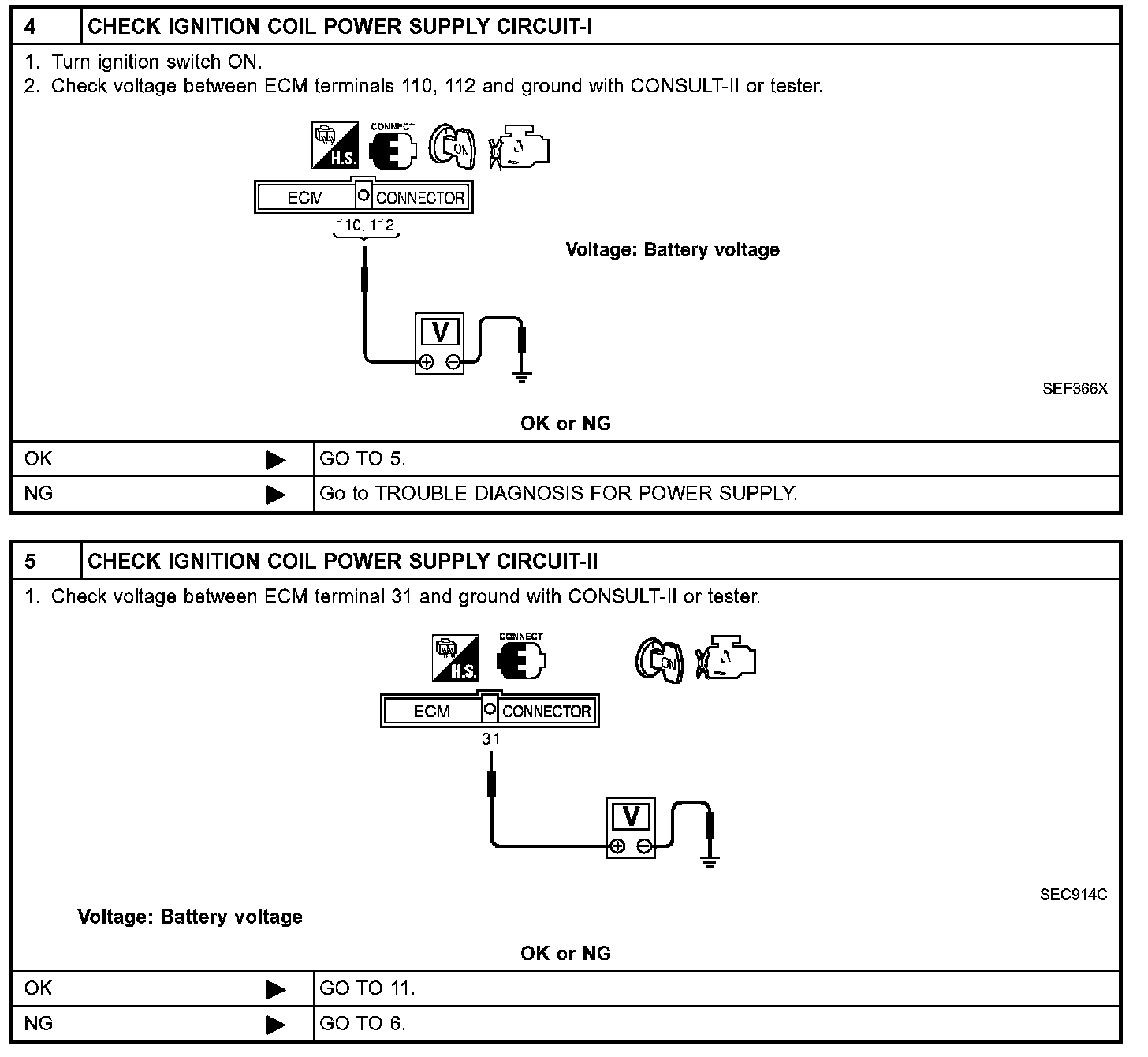

Diagnostic Procedure (Steps 4 - 5):

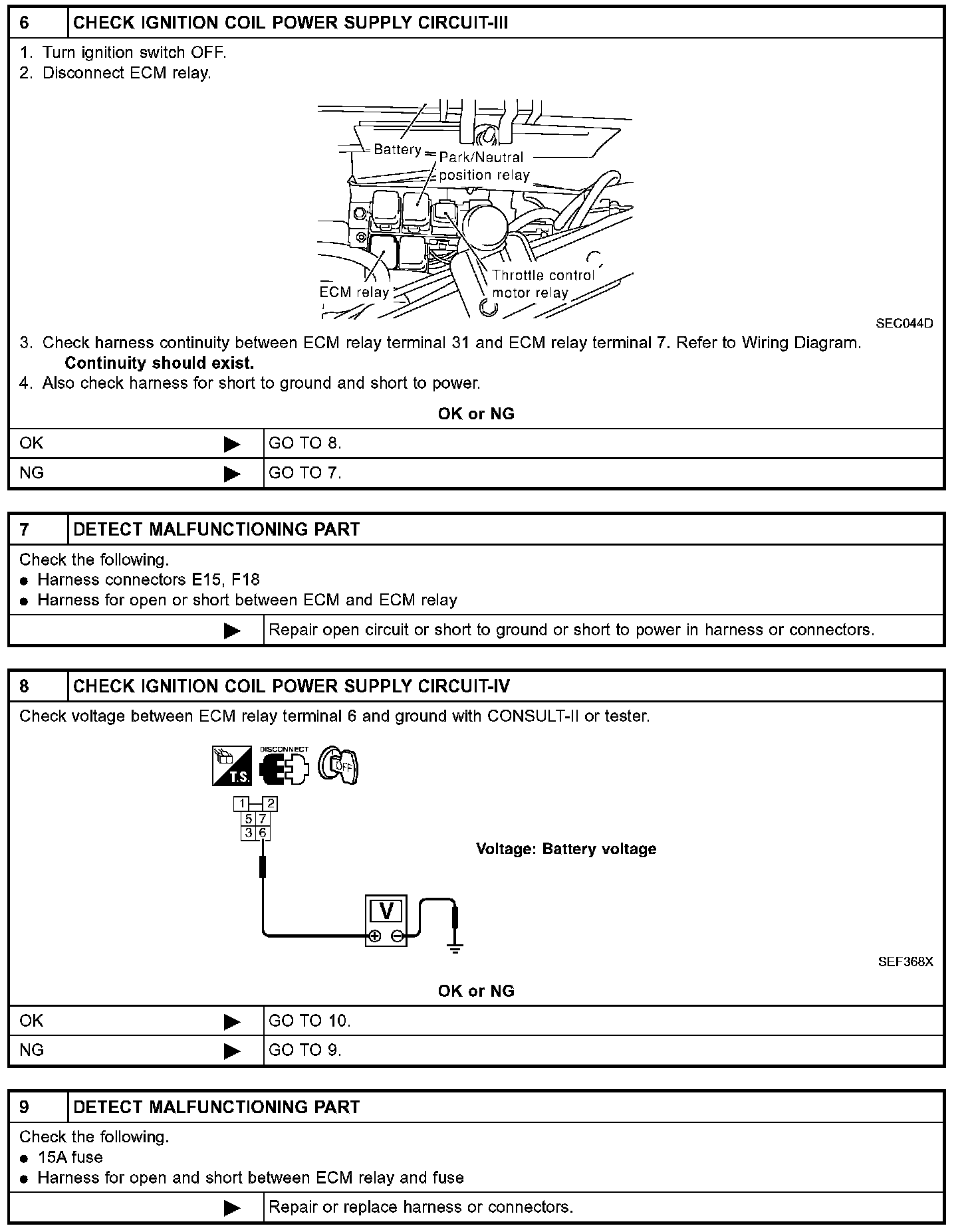

Diagnostic Procedure (Steps 6 - 9):

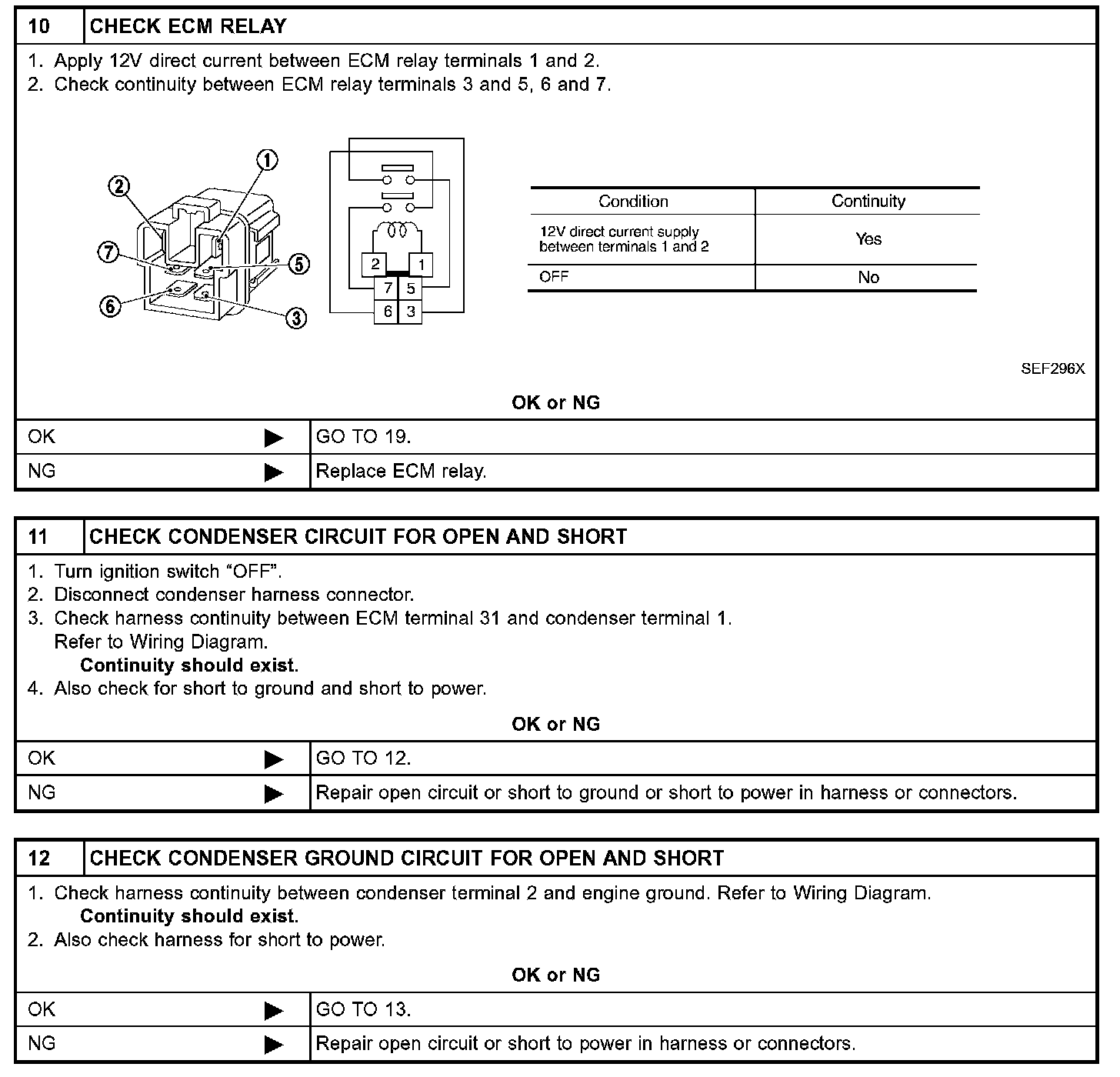

Diagnostic Procedure (Steps 10 - 12):

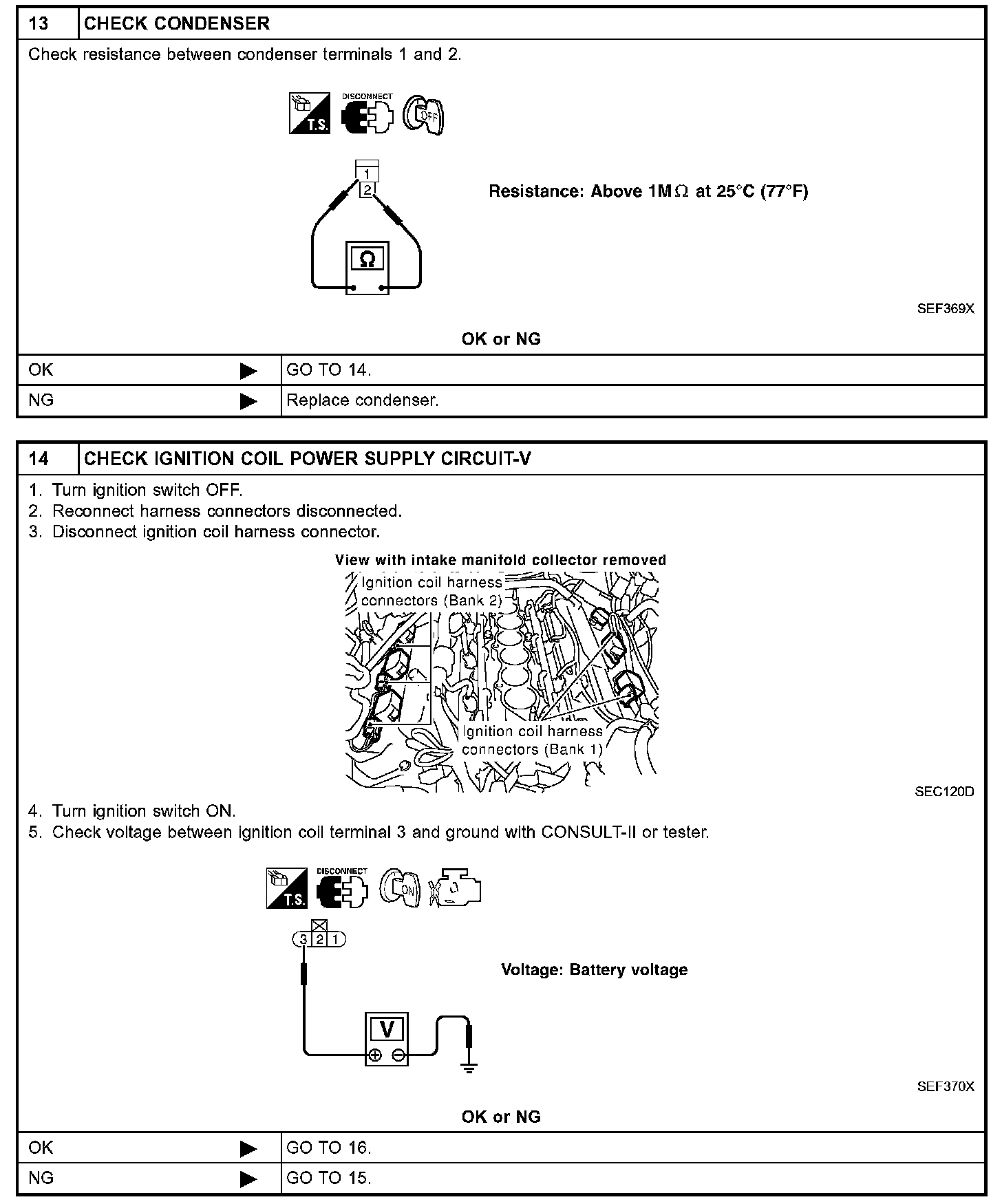

Diagnostic Procedure (Steps 13 - 14):

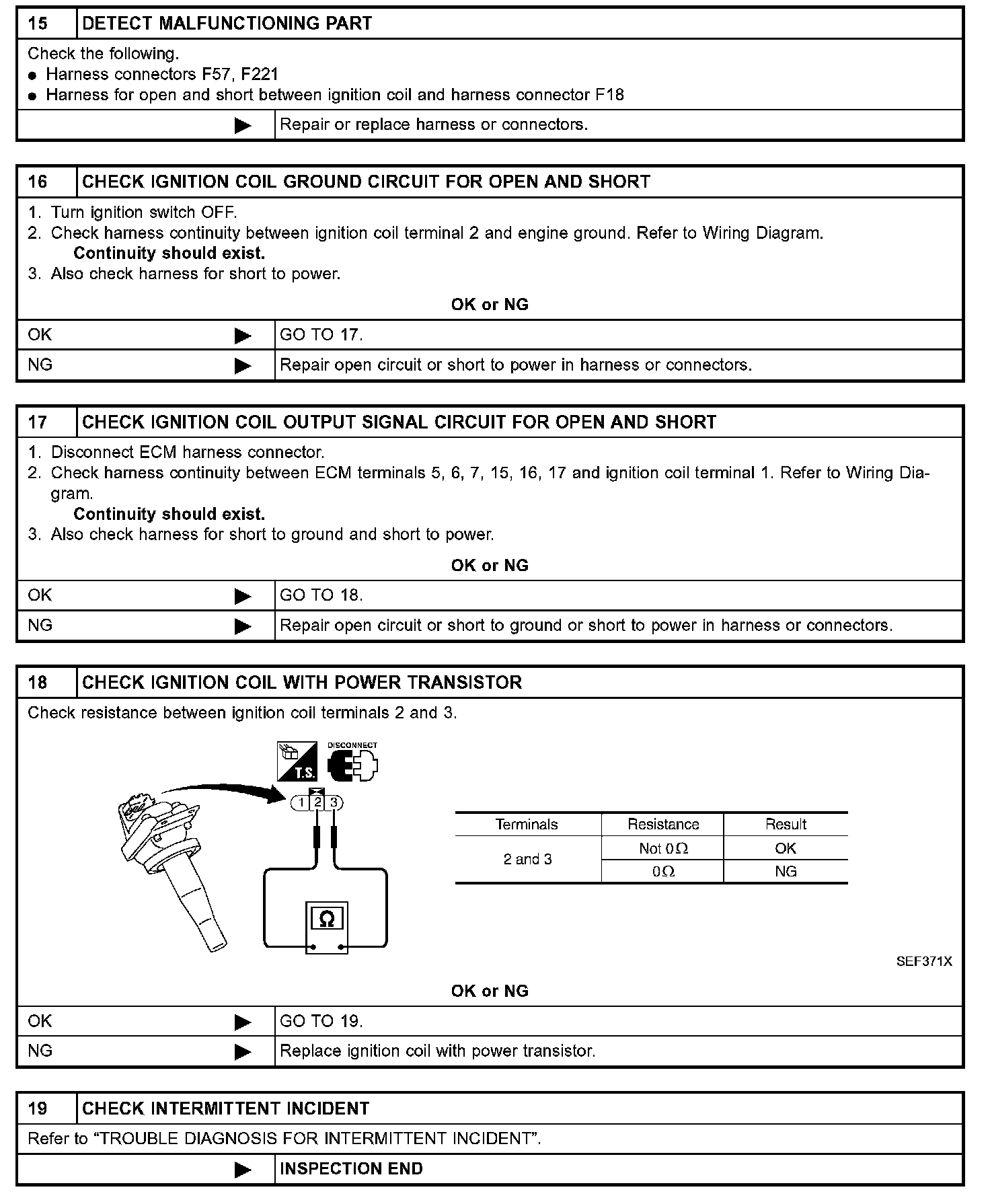

Diagnostic Procedure (Steps 15 - 19):

Diagnostic Procedure
