Radiator Cooling Fan Control Module: Description and Operation

ENGINE OVER TEMPERATURE

System Description

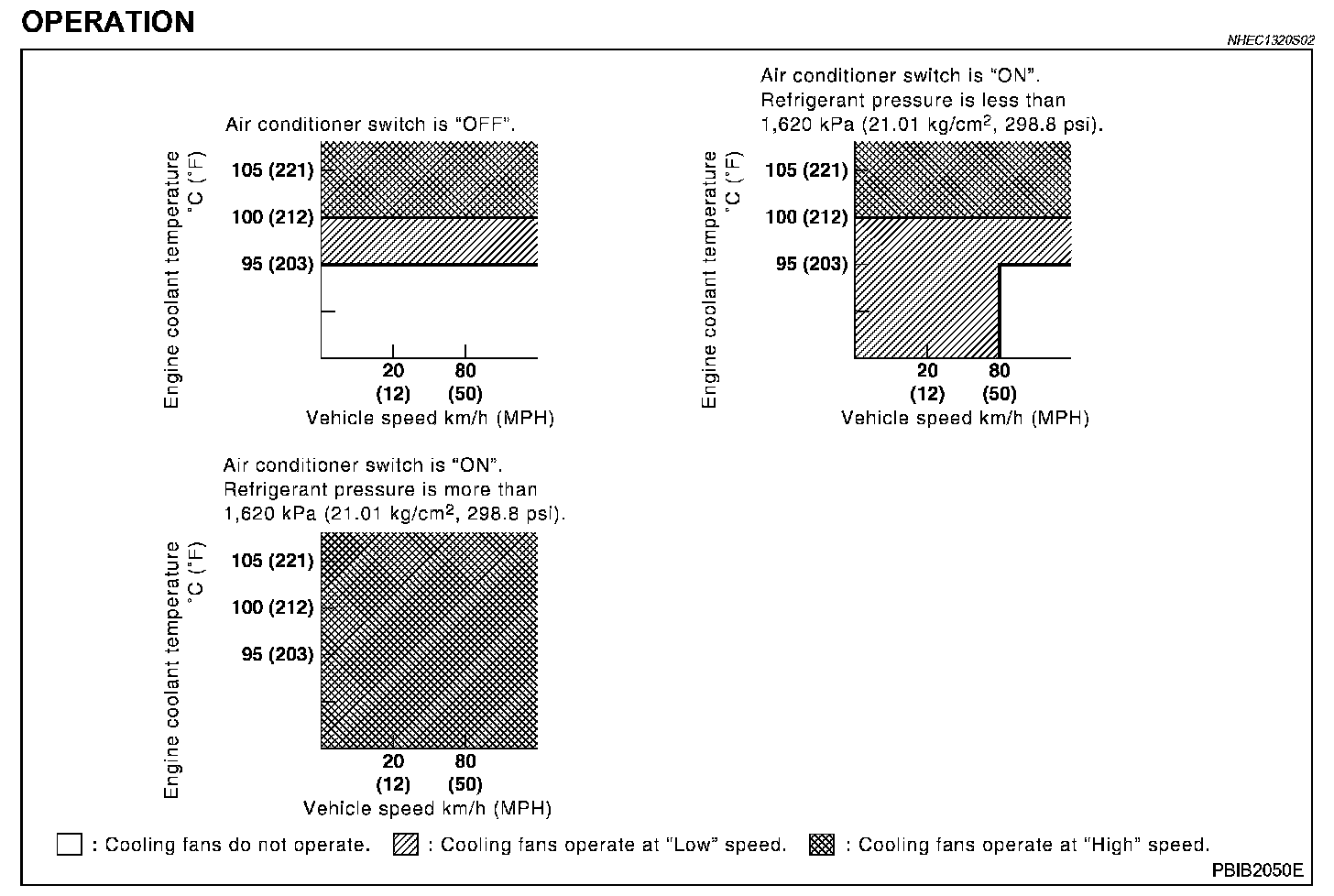

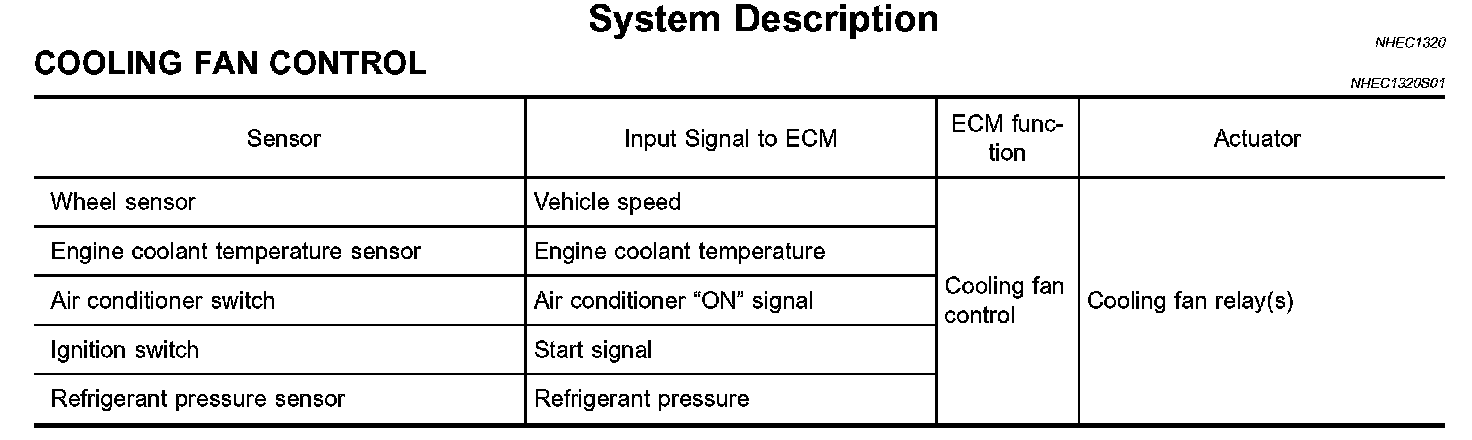

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
