Engine Control Module: Locations

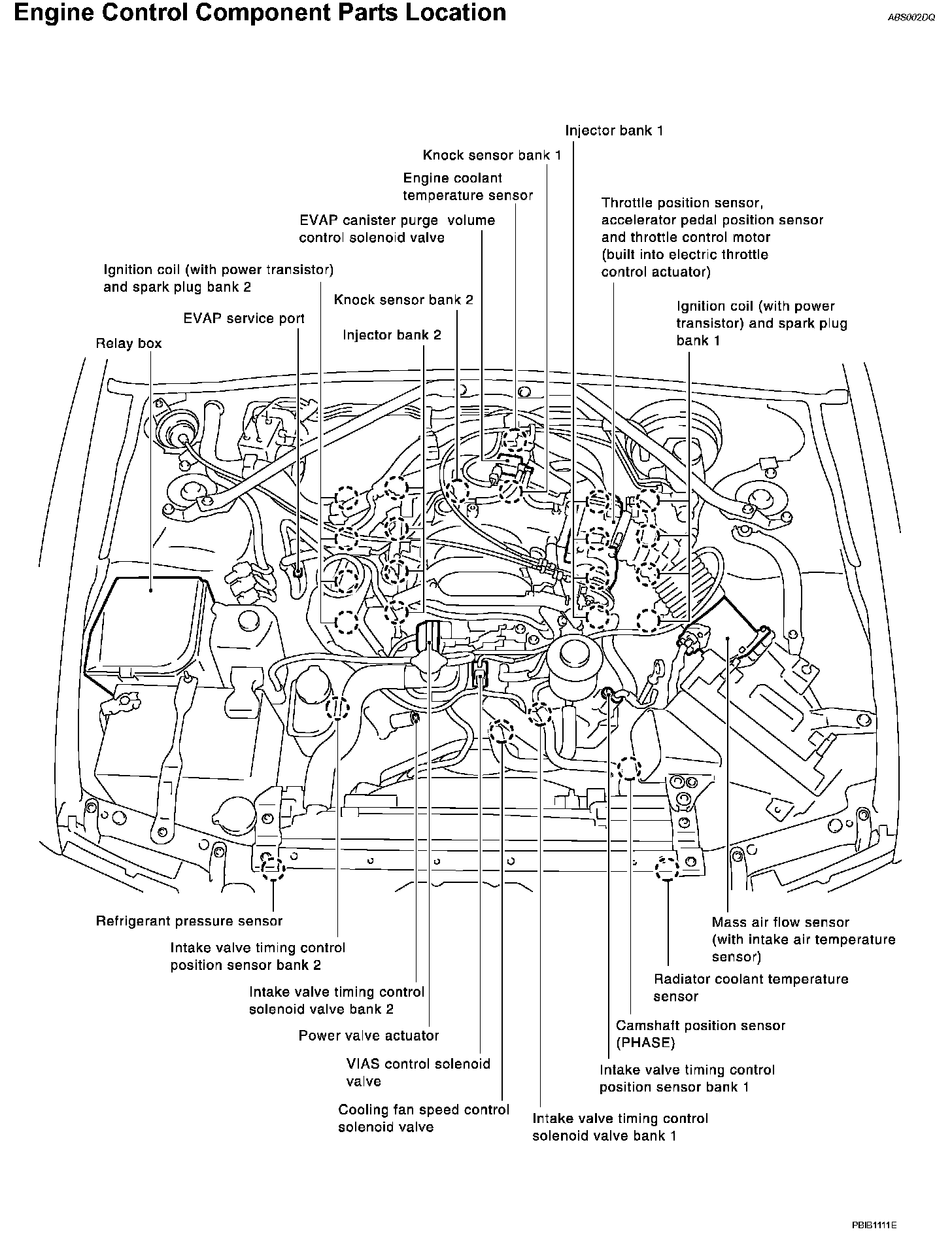

Engine Control Component Parts Location:

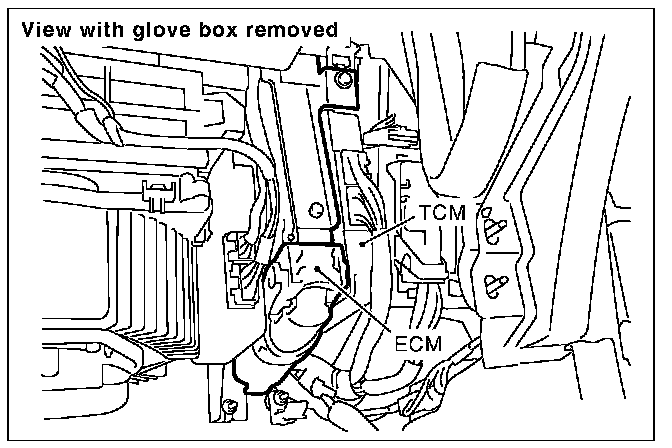

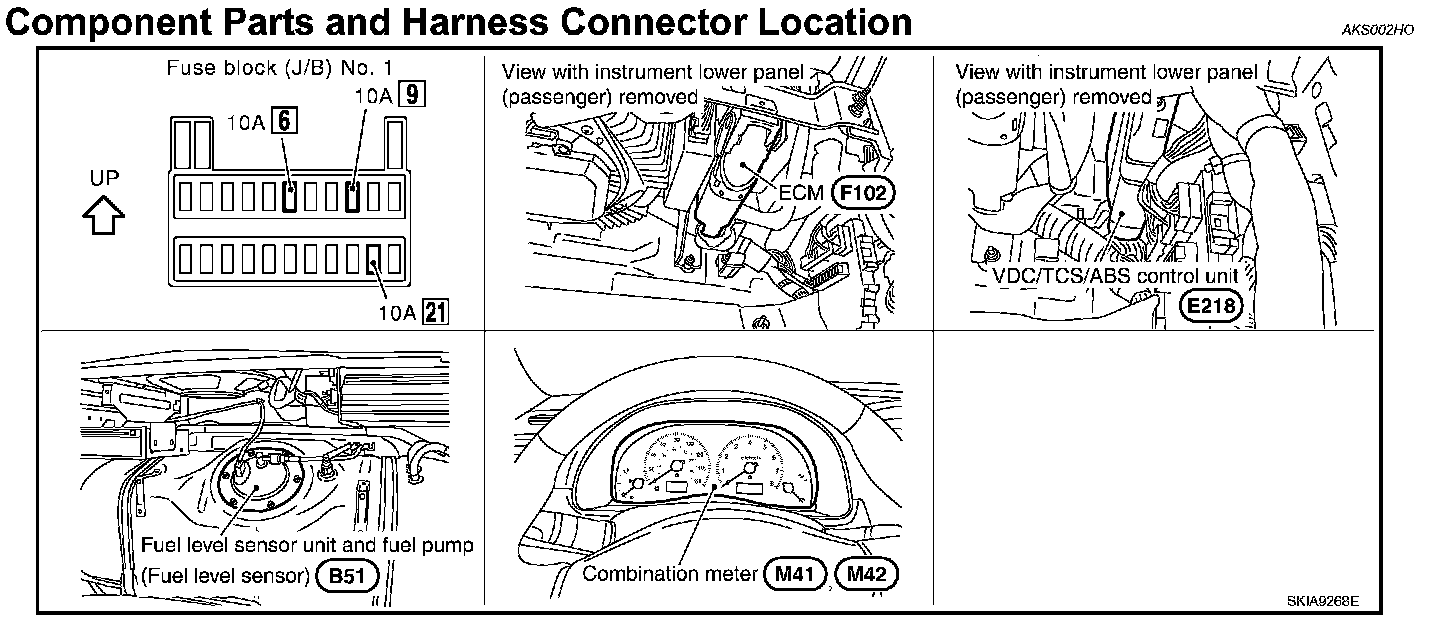

Component Parts And Harness Connector Location:
