Torque and Sequence
Oil Pan Oil pan mounting bolt
34 Nm (3.5 kg-m, 25 ft. lbs.)

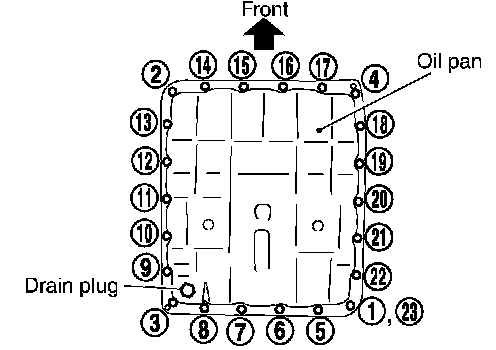

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
CAUTION: Do not reuse oil pan mounting bolts.
Torque
7.9 Nm (0.81 kg-m, 70 inch lbs.)
