Valve Spring

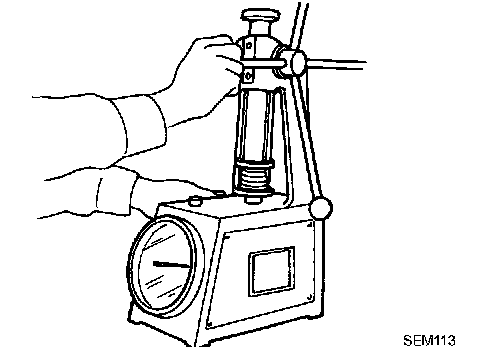

VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD Check valve spring pressure at specified spring height.
Standard: Free height
46.35 - 46.85 mm (1.8247 - 1.8444 in)) Installation height
33.8 mm (1.331 inch) Installation load
165 - 189 N (16.8 - 19.3 kg, 37- 42 lb) Height during valve open
24.4 mm (0.961 inch) Load with valve open
290 - 330 N (29.6- 33.7 kg, 65 - 74 lb)
